01 Series 500GPH Bilge Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

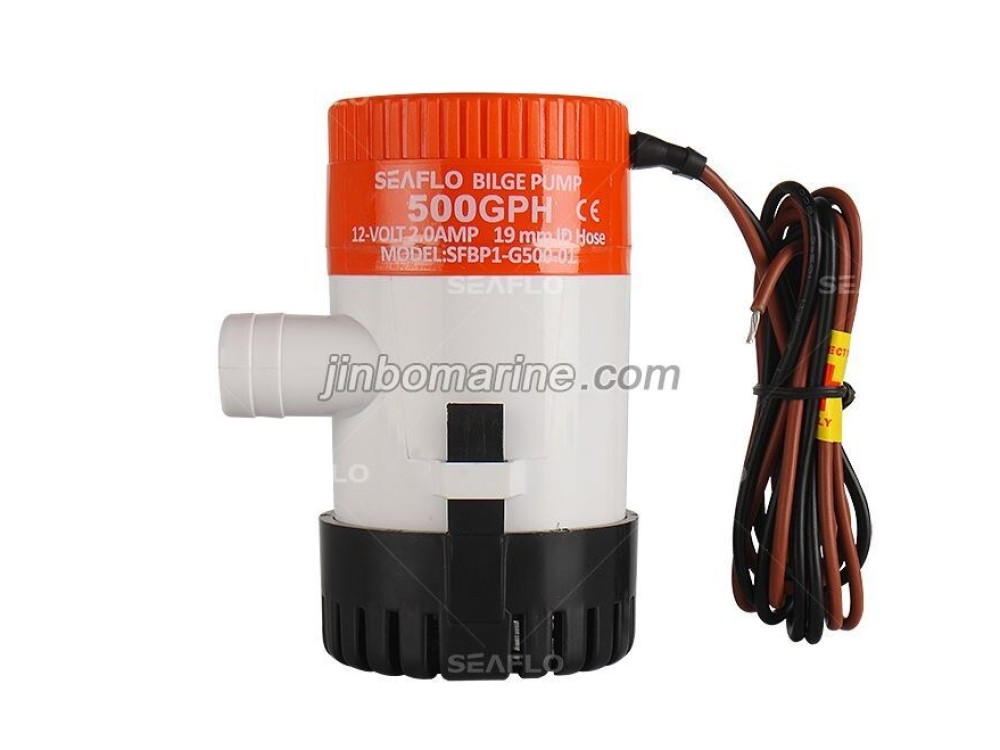

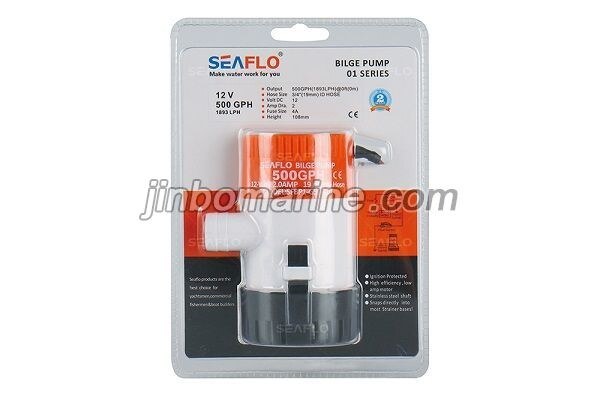

01 Series 500GPH Bilge Pump

SEAFLO non-automatic bilge pumps offer water evacuation activated by a panel or float switch. Our larger impeller design and more robust motor allow us to outperform our competitors. Our removable strainer base fits industry standard mounting conventions though, so you’ll have no problem changing to us from them.

STANDARD PUMP CONFIGURATIONS

Model FlowRate Voltage Max Draw Fuse Amps Head Wire Lead Outlet Dia N.W. / G.W.
SFBP1-G500-01 500 GPH 12 V 1.6 A 3.0 A 9' (3m) 3' (1m) 3/4" 0.33/0.40 kg
SFBP2-G500-01 500 GPH 24 V 1.2 A 2.0 A 9' (3m) 3' (1m) 3/4" 0.33/0.40 kg

PERFORMANCE

Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH

OPEN

1.8

482

1824

0

12

1.4

388

1469

0.25

12

1.4

363

1374

0.5

12

1.4

342

1294

0.75

12

2

285

1079

1

12

1.4

268

1014

1.25

12

1.4

245

927

1.5

12

1.4

215

814

1.75

12

2

142

537

2


Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH

OPEN

1.9

539

2040

0

13.6

1.9

309

1170

1

13.6

1.9

190

719

2
