03 Series 800GPH Bilge Pump
- Category:Bilge Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

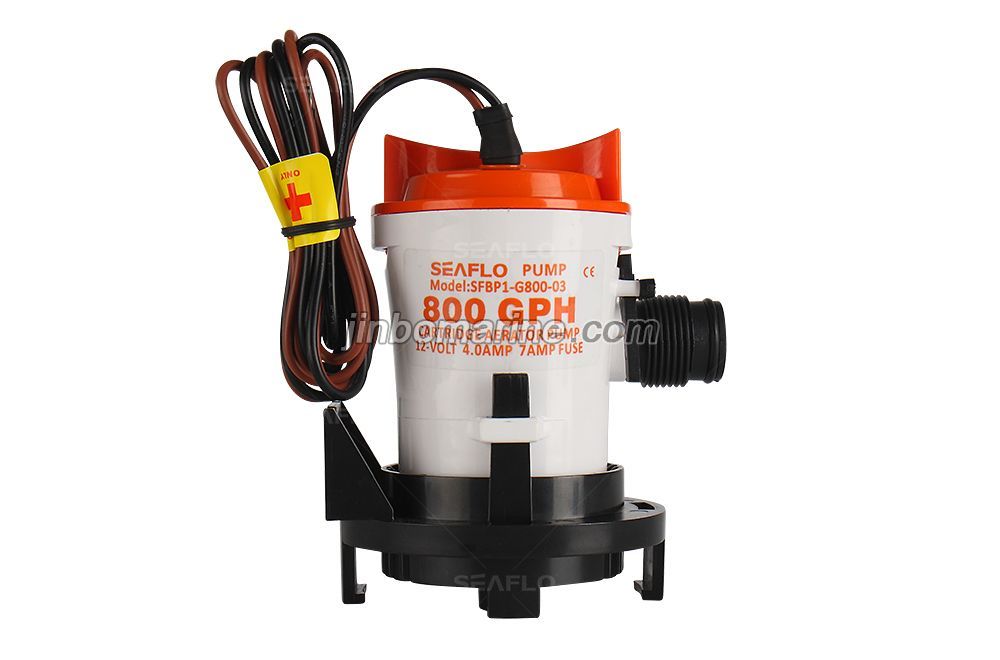

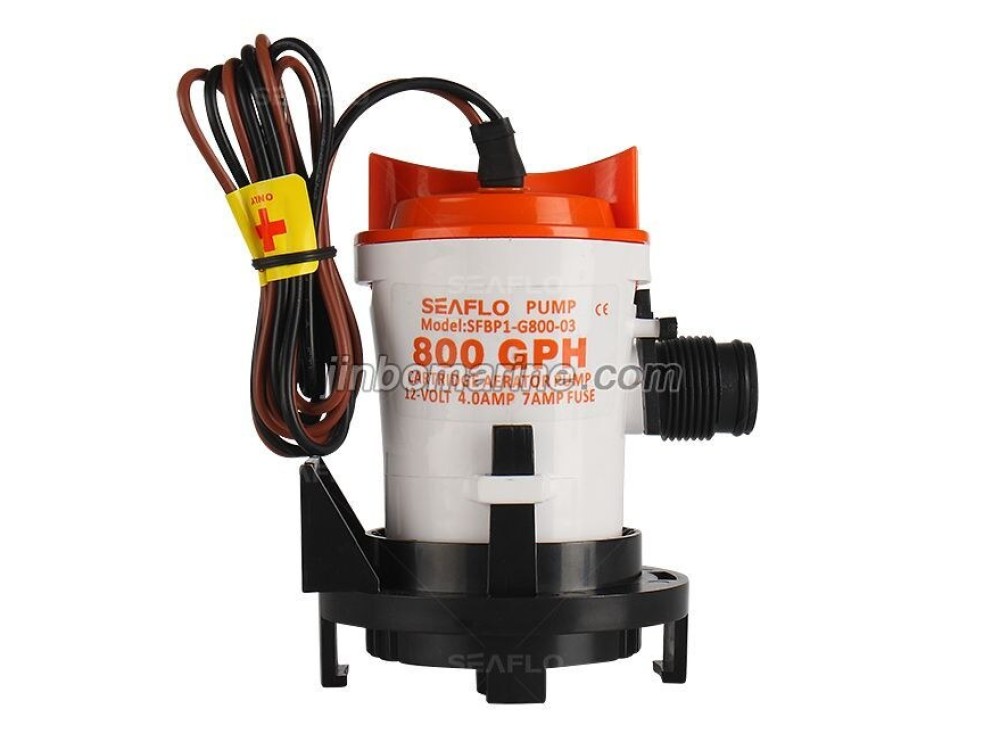

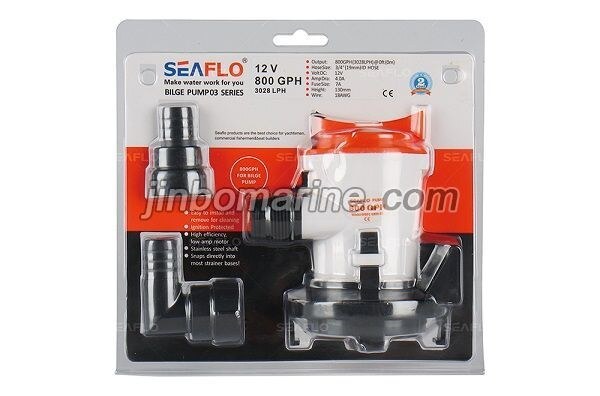

03 Series 800GPH Bilge Pump
Like our 02-series, this mounting bracket allows the pump to be mounted vertically. In addition, this model allows for the utmost flexibility with a removable cartridge for easy maintenance. The standard connection is threaded but included are adaptors to barbed in order to be flexible to your specific needs.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G800-03 | 800 GPH | 12 V | 4.0 A | 7.0 A | 13' (4m) | 3' (1m) | 3/4" | 0.37/0.46 kg |
PERFORMANCE
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
GPH
|
LPH |
|||
| 12 | 2.8 | 710 | 2687 | 0 |
| 12 | 2.8 | 680 | 2574 | 0.5 |
| 12 | 2.8 | 635 | 2403 | 1 |
| 12 | 3 | 570 | 2157 | 1.5 |
| 12 | 3.1 | 490 | 1855 | 2 |
| 12 | 3.2 | 310 | 1173 | 2.5 |
