130Ton Detachable Chain Chaser
- Category:Chain Chaser
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China 130Ton Detachable Chain Chaser:

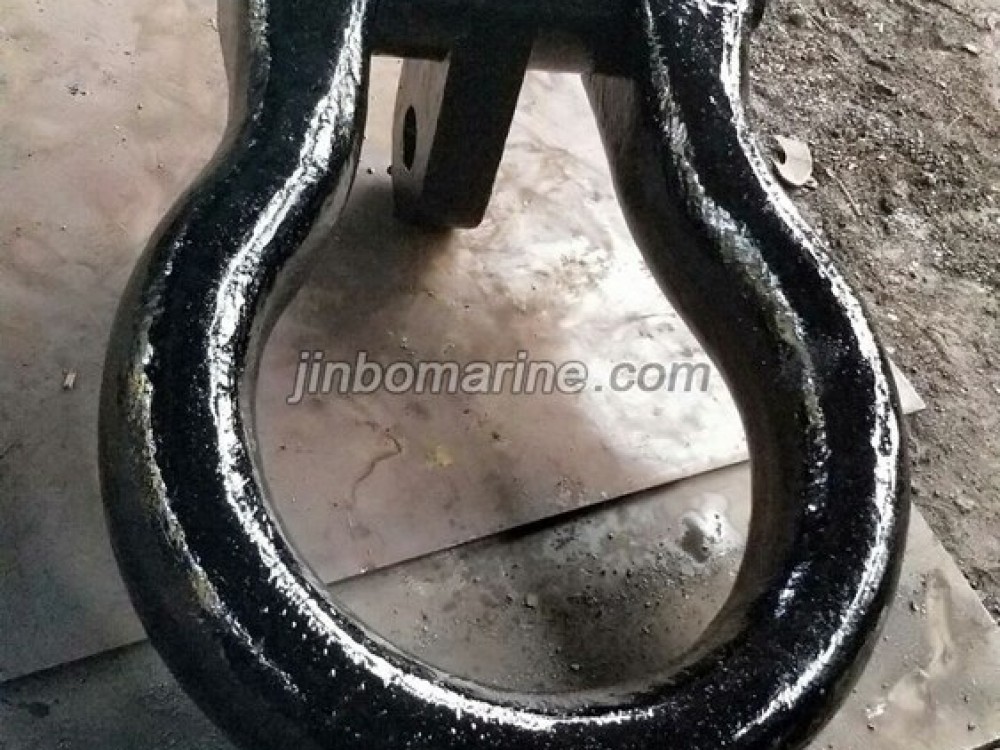

130Ton Detachable Chain Chaser is made of casting steel, black painting or other painting as client request. This chaser is used to be assembled for the anchor chain of vessel in service without the break and re-make the anchor chain.
High Strength and easy use.
SWL: 130Ton, other size available based on request.

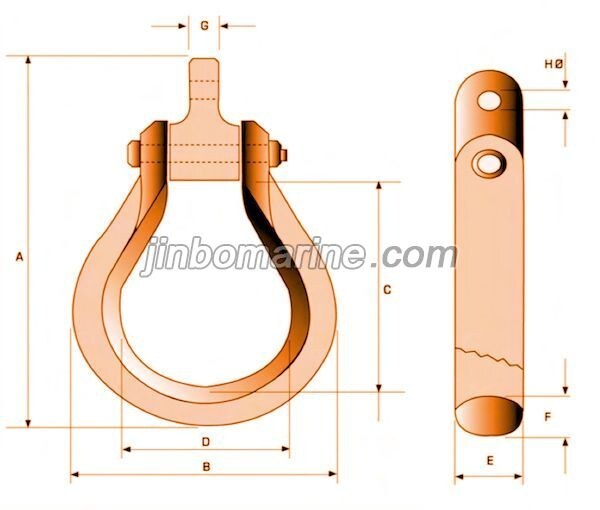

Detachable chain chaser size
| Type | SWL | Proof Load | A | B | C | D | E | F | G | H | Weight |
| JB201 | 100T | 250T | 1886 | 1143 | 1080 | 762 | 305 | 191 | 124 | 86 | 1245KG |
| JB202 | 130T | 250T | 1931 | 1168 | 1067 | 762 | 381 | 203 | 130 | 99 | 1645KG |
