1360KG AC-14 HHP Anchor
- Category:High Holding Power Anchor
- Material:ZG200-400C
- Standards:GB
- Certificate:CCS,ABS,LR,BV
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

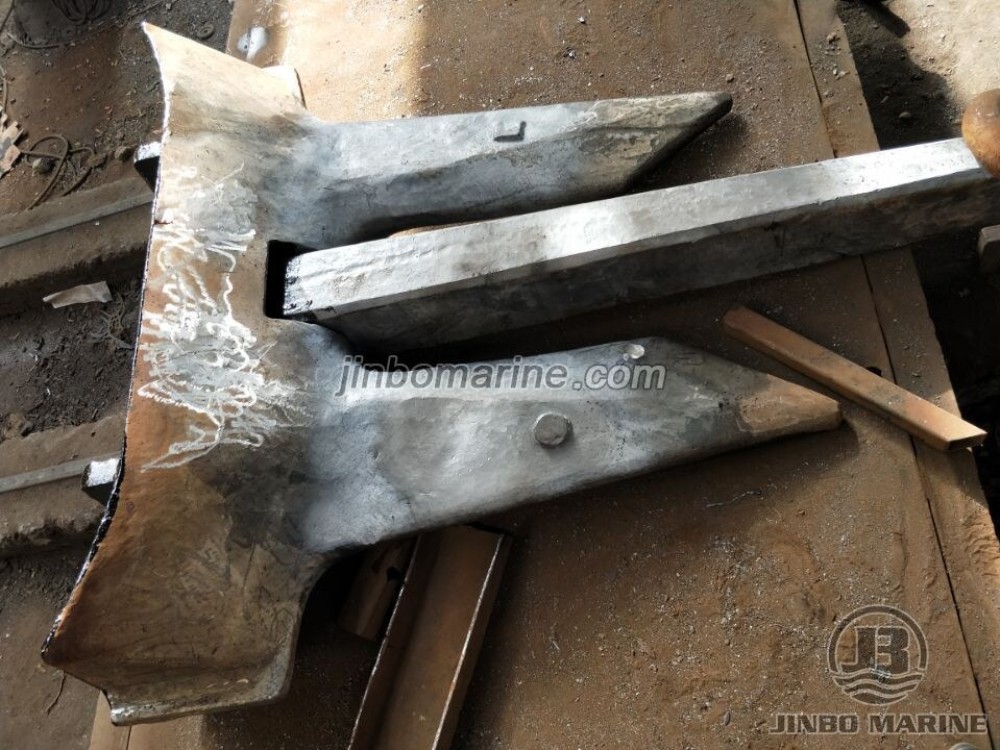

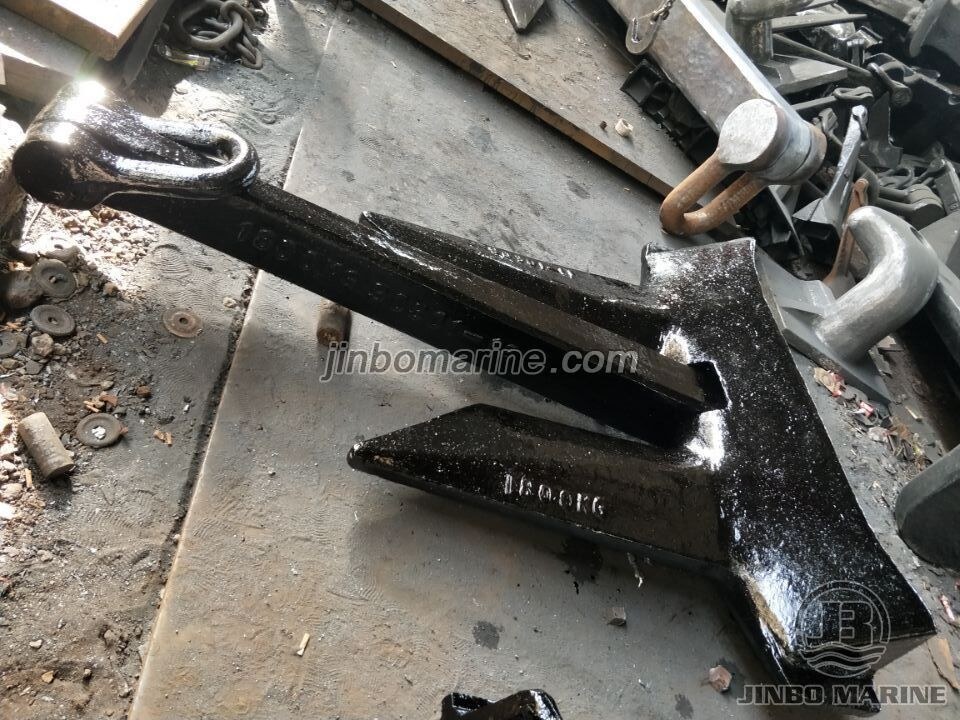

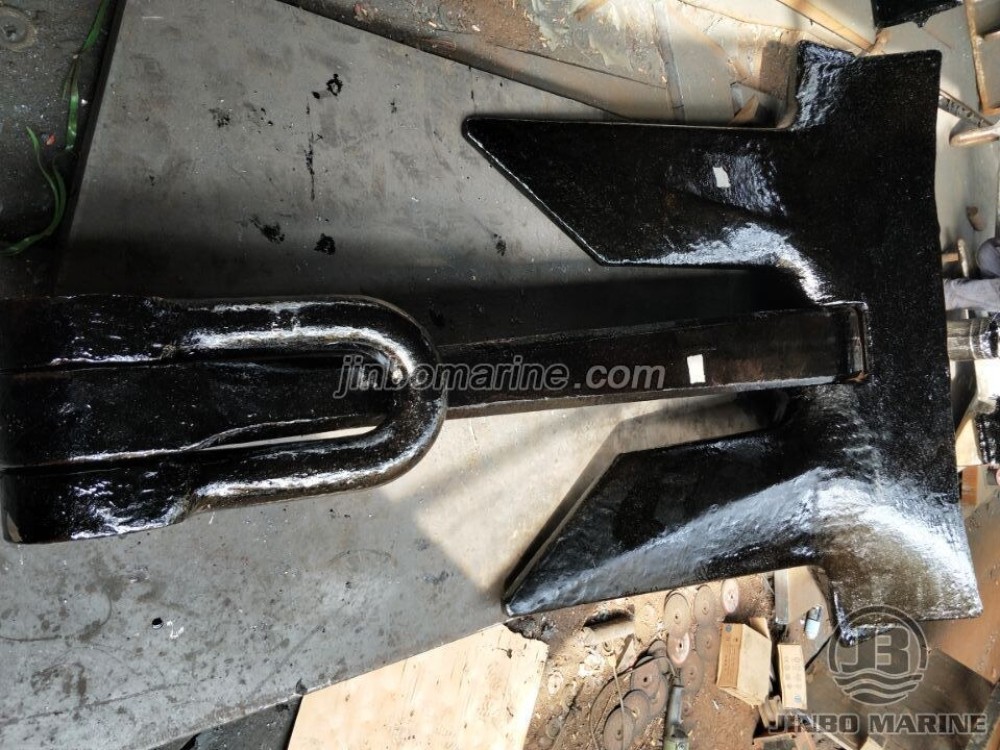

China 1360KG AC-14 HHP Anchor:
Made of casting steel , supply with IACS Certificate, weight is from 200kgs t0 21000kgs.
Finish:Black Painting
Anchor Weight:
Nominal Weight (kg) | Dimensions (mm) | |||||
A | B | C | D | E | F | |
56 | 612 | 555 | 170 | 376 | 113 | 298 |
100 | 745 | 675 | 200 | 458 | 135 | 364 |
135 | 745 | 675 | 205 | 458 | 135 | 364 |
180 | 909 | 822 | 252 | 558 | 166 | 442 |
225 | 1,010 | 915 | 277 | 623 | 185 | 495 |
250 | 1,010 | 915 | 280 | 623 | 185 | 495 |
270 | 1,040 | 940 | 288 | 638 | 190 | 508 |
300 | 1,075 | 975 | 298 | 660 | 200 | 525 |
315 | 1,075 | 975 | 300 | 660 | 200 | 525 |
340 | 1,120 | 1,015 | 310 | 690 | 205 | 548 |
360 | 1,120 | 1,015 | 313 | 690 | 205 | 548 |
428 | 1,213 | 1,098 | 336 | 745 | 222 | 590 |
495 | 1,255 | 1,135 | 348 | 770 | 230 | 610 |
590 | 1,350 | 1,220 | 375 | 829 | 246 | 658 |
675 | 1,412 | 1,278 | 390 | 868 | 257 | 690 |
765 | 1,470 | 1,335 | 408 | 906 | 269 | 718 |
910 | 1,560 | 1,410 | 430 | 957 | 284 | 760 |
970 | 1,592 | 1,445 | 440 | 978 | 292 | 775 |
1,080 | 1,650 | 1,495 | 455 | 1,014 | 302 | 805 |
1,200 | 1,710 | 1,545 | 470 | 1,050 | 315 | 835 |
1,305 | 1,760 | 1,595 | 485 | 1,082 | 323 | 858 |
1,361 | 1,782 | 1,615 | 495 | 1,096 | 326 | 870 |
1,440 | 1,818 | 1,645 | 505 | 1,118 | 332 | 885 |
1,575 | 1,875 | 1,695 | 518 | 1,152 | 343 | 915 |
1,710 | 1,925 | 1,745 | 532 | 1,184 | 352 | 940 |
1,845 | 1,975 | 1,785 | 546 | 1,215 | 362 | 965 |
1,980 | 2,020 | 1,830 | 560 | 1,242 | 370 | 985 |
2,100 | 2,065 | 1,865 | 570 | 1,268 | 377 | 1,005 |
2,295 | 2,130 | 1,920 | 588 | 1,310 | 385 | 1,035 |
2,475 | 2,175 | 1,970 | 602 | 1,340 | 395 | 1,062 |
2,655 | 2,225 | 2,018 | 615 | 1,368 | 408 | 1,085 |
2,794 | 2,265 | 2,055 | 625 | 1,393 | 415 | 1,105 |
3,040 | 2,320 | 2,100 | 640 | 1,424 | 426 | 1,130 |
3,550 | 2,455 | 2,225 | 680 | 1,508 | 450 | 1,198 |
3,670 | 2,480 | 2,248 | 688 | 1,525 | 455 | 1,210 |
3,940 | 2,540 | 2,300 | 705 | 1,562 | 465 | 1,240 |
4,500 | 2,655 | 2,405 | 735 | 1,632 | 485 | 1,295 |
4,840 | 2,720 | 2,465 | 755 | 1,670 | 500 | 1,330 |
5,175 | 2,785 | 2,520 | 770 | 1,710 | 510 | 1,358 |
5,610 | 2,858 | 2,590 | 790 | 1,758 | 523 | 1,396 |
6,000 | 2,922 | 2,646 | 810 | 1,796 | 535 | 1,426 |
6,450 | 2,995 | 2,712 | 830 | 1,840 | 548 | 1,462 |
6,900 | 3,062 | 2,775 | 848 | 1,884 | 560 | 1,496 |
7,350 | 3,126 | 2,832 | 866 | 1,923 | 572 | 1,526 |
7,800 | 3,190 | 2,890 | 884 | 1,962 | 584 | 1,558 |
8,300 | 3,256 | 2,950 | 902 | 2,002 | 596 | 1,590 |
8,700 | 3,308 | 2,996 | 916 | 2,034 | 605 | 1,614 |
9,300 | 3,382 | 3,064 | 936 | 2,080 | 619 | 1,652 |
9,675 | 3,425 | 3,104 | 948 | 2,108 | 627 | 1,674 |
9,900 | 3,452 | 3,128 | 956 | 2,124 | 632 | 1,686 |
10,500 | 3,523 | 3,192 | 976 | 2,166 | 645 | 1,720 |
11,100 | 3,589 | 3,252 | 994 | 2,207 | 657 | 1,752 |
11,700 | 3,650 | 3,308 | 1,010 | 2,245 | 668 | 1,782 |
12,300 | 3,712 | 3,364 | 1,028 | 2,283 | 680 | 1,812 |
12,900 | 3,772 | 3,418 | 1,044 | 2,320 | 690 | 1,842 |
13,500 | 3,830 | 3,470 | 1,060 | 2,355 | 700 | 1,870 |
14,100 | 3,885 | 3,520 | 1,076 | 2,389 | 710 | 1,896 |
14,700 | 3,940 | 3,570 | 1,090 | 2,423 | 721 | 1,924 |
15,400 | 4,002 | 3,626 | 1,108 | 2,461 | 732 | 1,954 |
16,100 | 4,062 | 3,680 | 1,125 | 2,498 | 744 | 1,982 |
16,900 | 4,128 | 3,740 | 1,144 | 2,538 | 755 | 2,016 |
17,800 | 4,200 | 3,806 | 1,162 | 2,583 | 769 | 2,050 |
18,800 | 4,277 | 3,875 | 1,185 | 2,630 | 783 | 2,088 |
20,000 | 4,366 | 3,956 | 1,210 | 2,685 | 800 | 2,132 |
25,000 | 5,046 | 4,577 | 1,375 | 3,135 | 846 | 2,438 |
