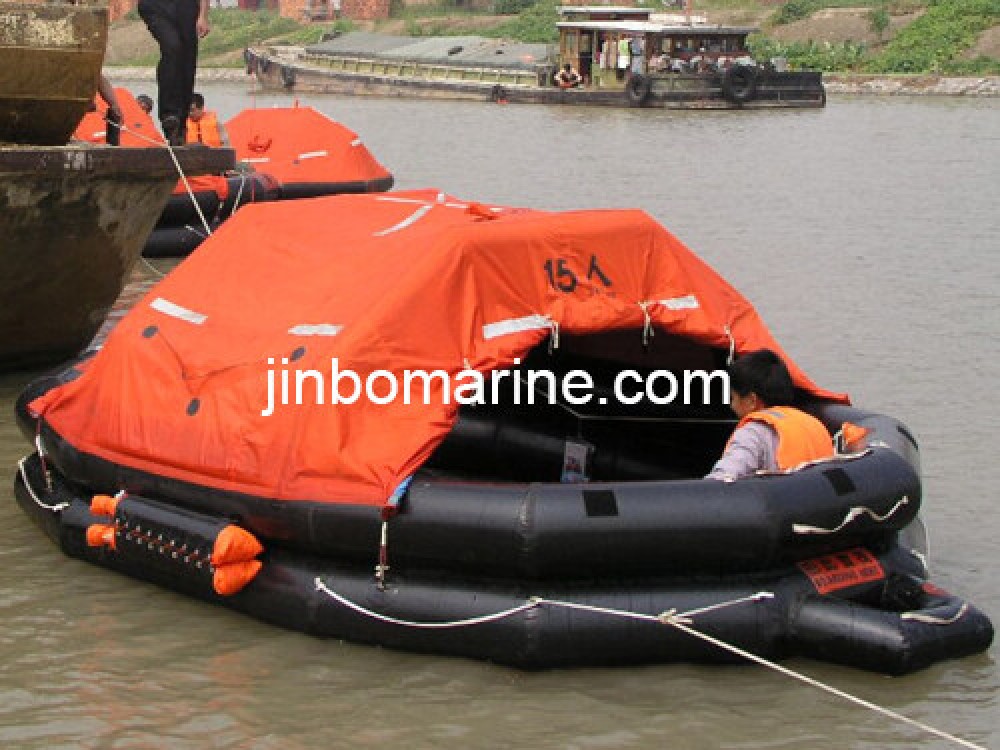

15 Persons Throw-Over Board Inflatable Life Raft

The Throw over board Inflatable Liferaft are stored in containers on deck an inflate in the water when the painter line is pulled.

The standard sizes of the liferafts are available with:6、10、15、20 and 25 persons.

The liferafts with type approval by CCS and EC(EC was issued by GL).

After throw over from ship,the liferaft can be inflated and opened automatically.If the ship sinks very fast and the life-raft can not be throw over,the raft still can float up from water under the action of Hydrostatic Release Unit and can be inflated and opened automatically.

The installation height is 18-50m from water surface.

Capacity:15 persons

Main dimension length:3546mm

Main dimension breadth:3425mm

(Co2+N2)*2/weight of gas:2800*2g

Max storage height:36M

Physical form: regular Twelve-sided polygon

Gross weight:135kg

The FRP container:Diameter 700X1460

Packaging size: 1420X740X780MM

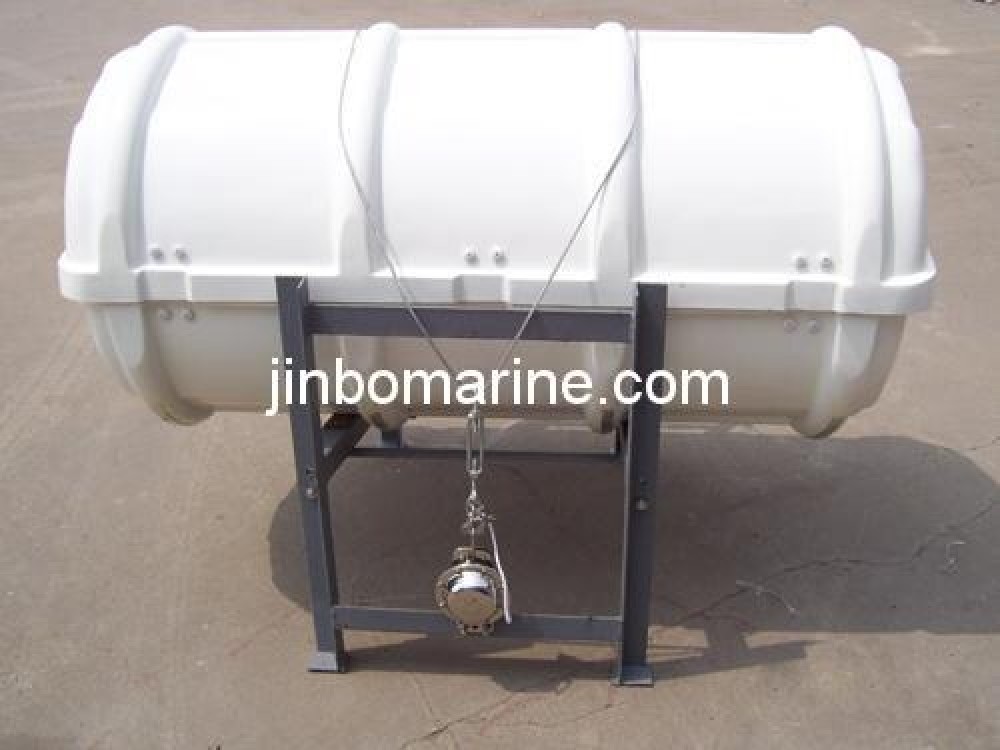

Cradle,HRU (hydraulic release unit),GRP containers.
