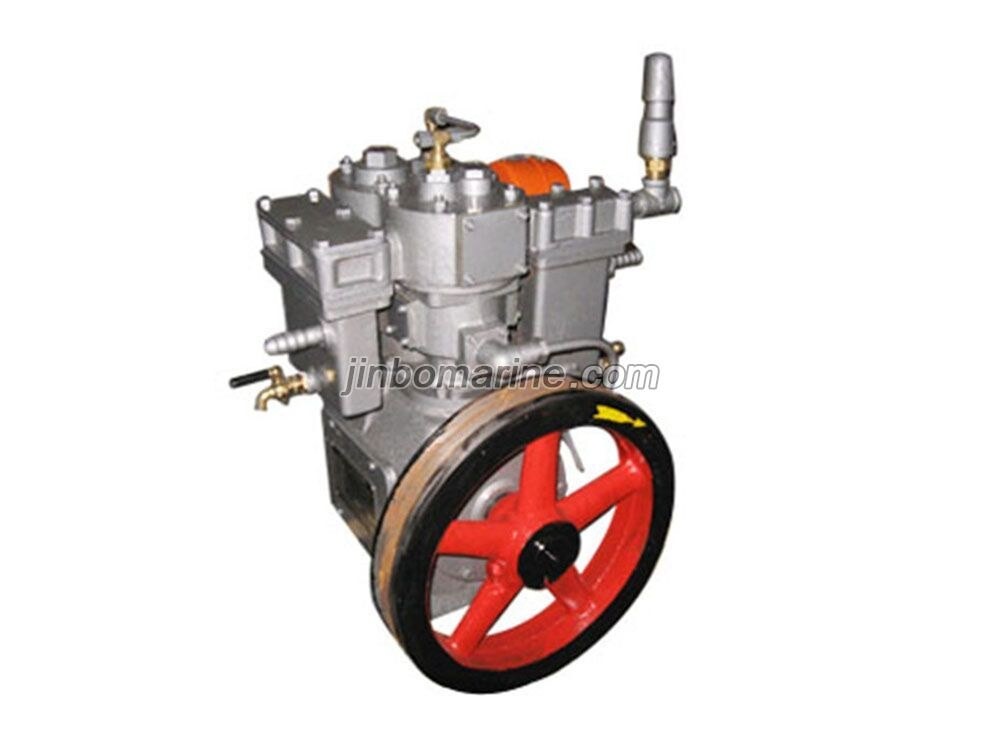

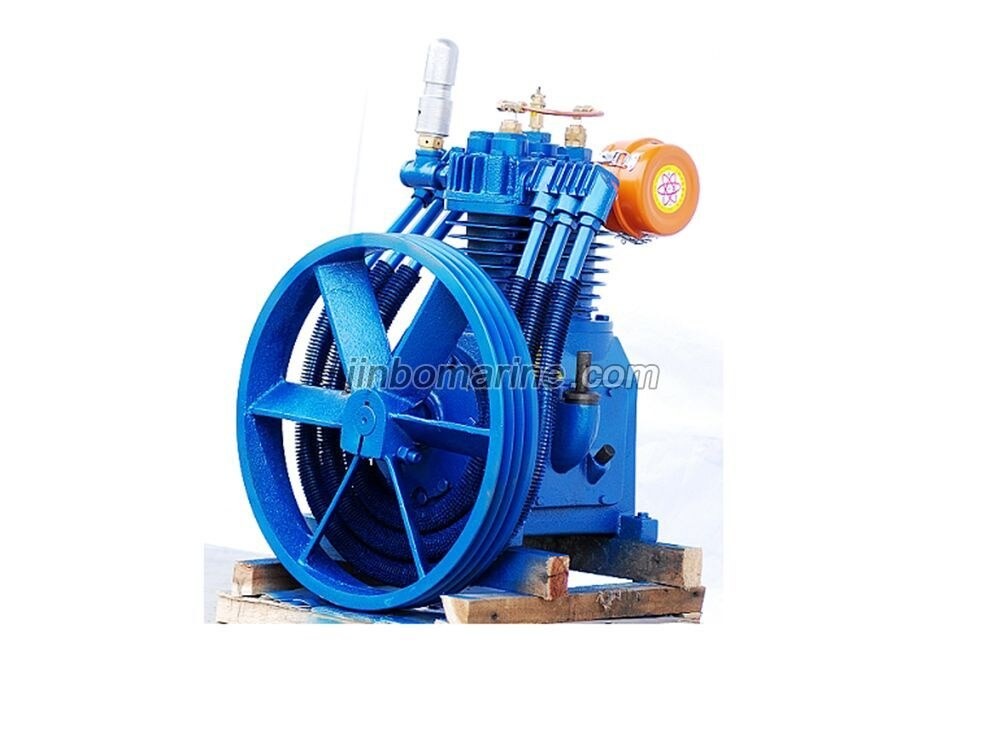

2ZS-0.34/3-B Medium Pressure 3.0MPa Air Cooling Marine Air Compressor
- Category:Medium Pressure Air Cooled Marine Air Compressor
- Certificate:CCS
- Supply Ability:100 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Description:
2ZS-0.34/3-B series air compressor has obtained CCS certificate. The technical performance indexes of the products have reached the advanced level in China and are sold well in the whole country. The supporting exports are well received by customers in the domestic and foreign markets.
The product is mainly used for the start-up of marine diesel engine, the start-up and braking of water and electricity equipment, the supplement of air source, and also can be used as the pressure air source in the fields of pressure vessel detection, instrument detection, pneumatic device and construction, petrochemical industry and plastic stool.
The product can be equipped with air control device, electric control device or full-automatic control device. It can provide single machine, motor driven horizontal unit, vertical unit, diesel driven horizontal unit, gas cylinder unit, etc.
Techincal data:
Model | Discharge volume | Rated pressure | Cylinder diameter(mm) | Piston stroke | Speed | Shaft power | Motor | |
m3/min | Mpa | Ⅰ | Ⅱ | mm | r/min | kw | ||
2ZF-0.34/3-B | ≥0.34 | 3 | 108 | 48 | 95 | 600 | <5 | Y132S-4 5.5KW |
2ZS-0.34/3-B | ≥0.34 | 3 | 108 | 48 | 95 | 600 | <5 | Y132S-4 5.5KW |
2ZF-0.34/3-BⅡ | ≥0.34 | 3 | 108 | 48 | 95 | 600 | <5 | Y132S-4 5.5KW |
WF-0.6/3 | ≥0.60 | 3 | 2-100 | 60 | 67 | 800 | <7 | Y132M-4 7.5KW |
