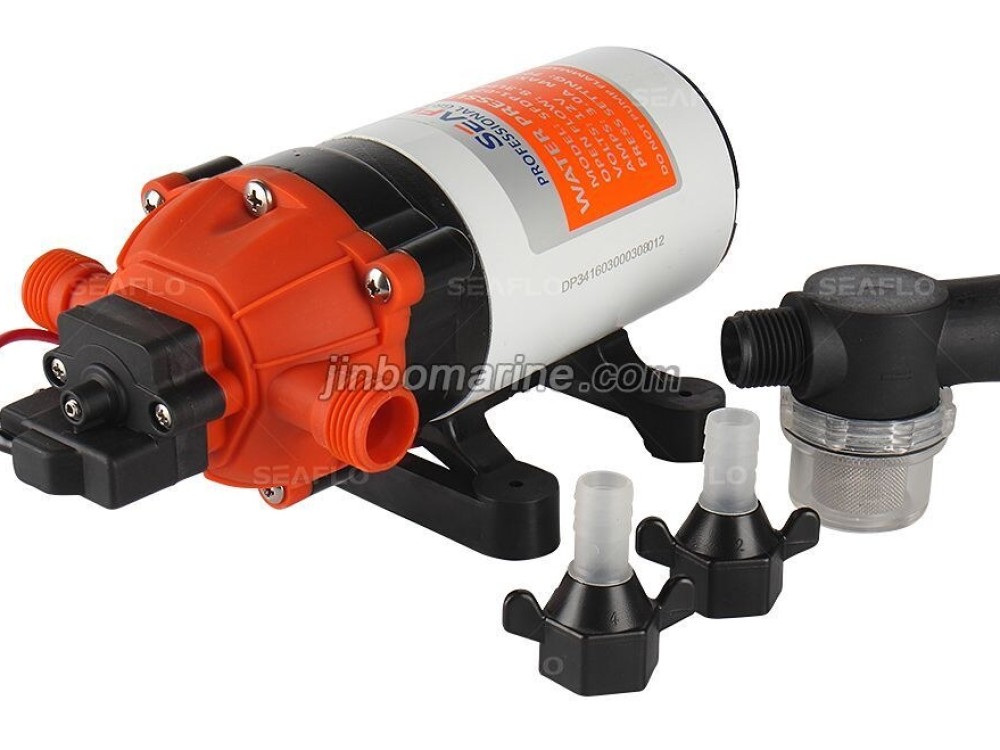

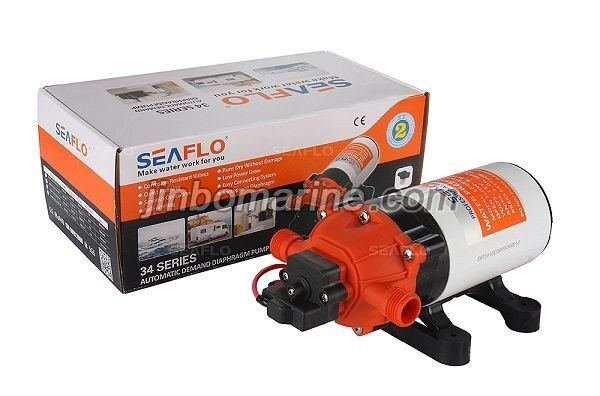

34 Series DC Diaphragm Pump

General description:

12V/24V 3.0-11.6LPM 17-100PSI

The 34-Series is our continuous-duty on-demand positive displacement pump. It provides reliable performance in moderate water flow, high-pressure applications. This 3-chamber diaphragm pump provides up to 2.2 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Serves 2 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the fixture is opened and closed. They are easy to install service and winterize.

Parameter pump and motor:

PUMP
Type 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type Pressure switch
Max Recommended Temperature 60° C(140° F)
Priming Capabilities 6 feet (1.8 m) suction lift
Re-start Pressure

Shut-off Pressure 70PSI :56 PSI ±5 PSI (±0.3 bar)

Shut-off Pressure 100PSI :75 PSI ±5 PSI (±0.3 bar)

Inlet/Outlet Ports 1/2"-14 MNPT
Weight 5.1 lbs (2.3 kg)

MOTOR
Leads 16 AWG, 14" (35cm) long with 2-Pin connector/Leads
Duty Cycle Continuous
Max.Amp Draw 7.5 A
Fuse 11.3 A

STANDARD PUMP CONFIGURATIONS

Model Voltage

Open Flow

(GPM/LPM)

Control Type

Max Draw

Shut-off Pressure

(PSI/BAR)

Valves Diaphragm Ports

Wire Connections

SFDP1-022-070-34 12V 2.2 / 8.3 Switch 7.5A 70 / 4.8 EPDM Santoprene 1/2"-14 MNPT 2-Pin/Leads
SFDP1-022-070-34 24V 2.2 / 8.3 Switch 4.0A 70 / 4.8 EPDM Santoprene 1/2"-14 MNPT 2-Pin/Leads
SFDP1-016-100-34 12V 1.6 / 6.0 Switch 6.0A 100 / 6.9 EPDM Santoprene 1/2"-14 MNPT 2-Pin/Leads
SFDP2-016-100-34 24V 1.6 / 6.0 Switch 4.0A 100 / 6.9 EPDM Santoprene 1/2"-14 MNPT 2-Pin/Leads
