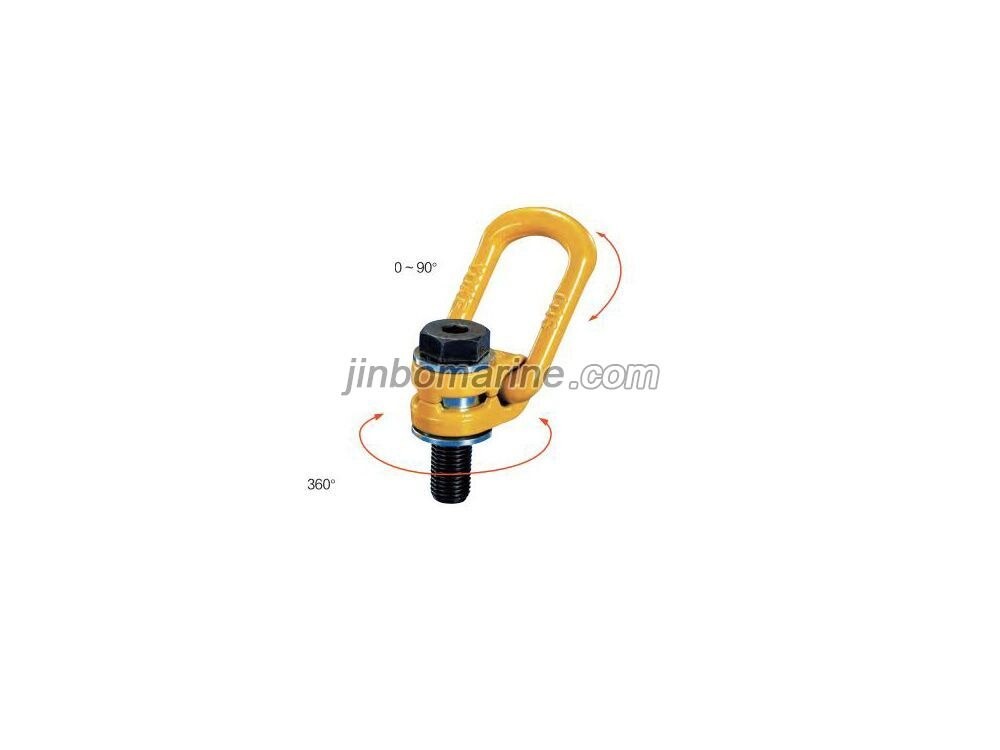

8-212 YOKE Lifting Point With Unc Thread

Request a Quote Not what you need, please send your RFQs via Email.

Details

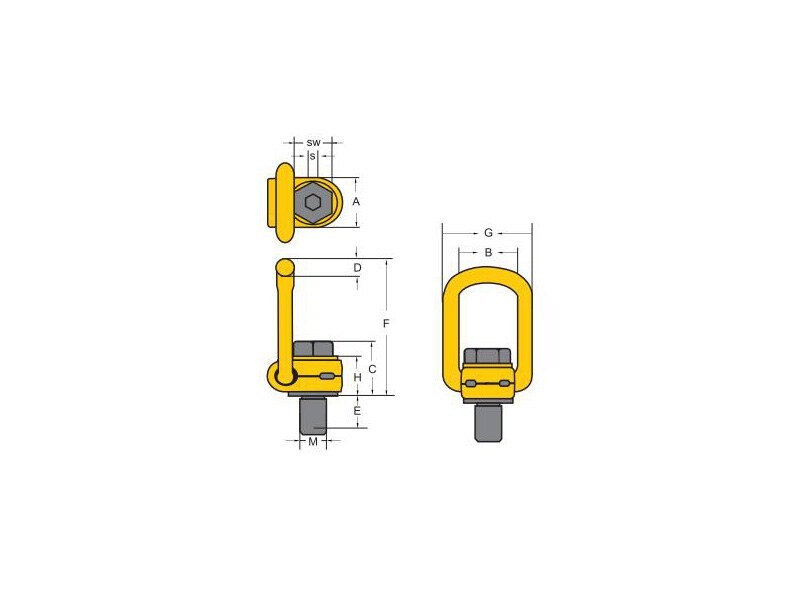

8-212 YOKE Lifting Point With Unc Thread Drawing

8-212 YOKE Lifting Point With Unc Thread Parameters

ITEM NO. WLL/T TPI WEIGHT/KG
8-212-010 1 1/2-13UNC 1.1
8-212-015 1.5 5/8-11UNC 1.1
8-212-020 2.5 3/4-10UNC 2.9
8-212-025 2.5 7/8-9UNC 2.9
8-212-040 4 1-8UNC 3.1
8-212-050 5 1 1/4-7UNC 6.8
8-212-080 8 1 1/2-6UNC 12.8
8-212-150 15 1 3/4-5UNC 24.0
8-212-200 20 2-4.5UNC 25.5
ITEM NO. TECHNICAL PARAMETERS/MM
A B C D E
8-212-010 1.3 1.46 1.73 0.53 0.75
8-212-015 1.3 1.46 1.81 0.53 0.94
8-212-020 1.97 2.13 2.2 0.65 1.1
8-212-025 1.97 2.13 2.28 0.65 1.1
8-212-040 1.97 2.13 2.34 0.65 1.61
8-212-050 2.36 2.56 3.23 0.89 1.61
8-212-080 3.03 3.35 4.01 1.04 2.25
8-212-150 3.74 4.09 4.48 1.42 2.63
8-212-200 3.74 4.09 4.76 1.42 3
ITEM NO. TECHNICAL PARAMETERS/MM
F G H S SW
8-212-010 3.86 2.24 1.42 5/16 3/4
8-212-015 3.86 2.24 1.42 3/8 15/16
8-212-020 5.51 3.23 1.73 1/2 1 1/8
8-212-025 5.51 3.23 1.73 5/8 1 1/3
8-212-040 5.51 3.23 1.73 5/8 1 1/2
8-212-050 6.69 3.9 2.44 7/8 1 7/8
8-212-080 8.86 4.88 3.07 1 2 1/4
8-212-150 10.08 6.22 3.39 1 2 5/8
8-212-200 10.20 6.22 3.54 1 1/4 3
