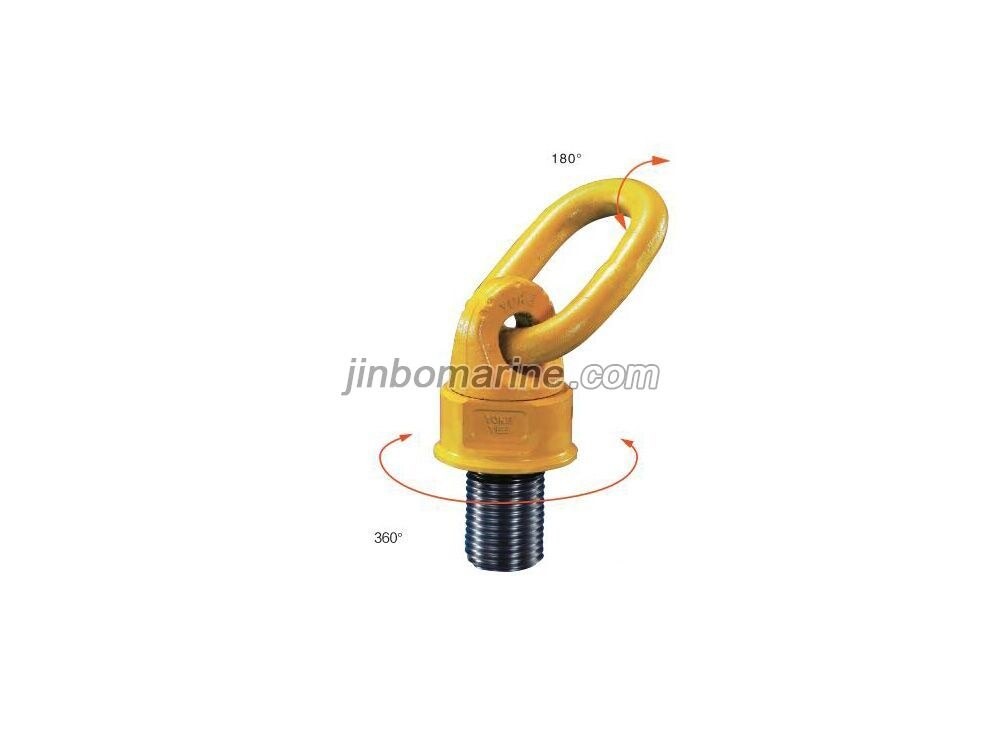

8-271 YOKE Swivel Point
- Category:Chain Sling
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

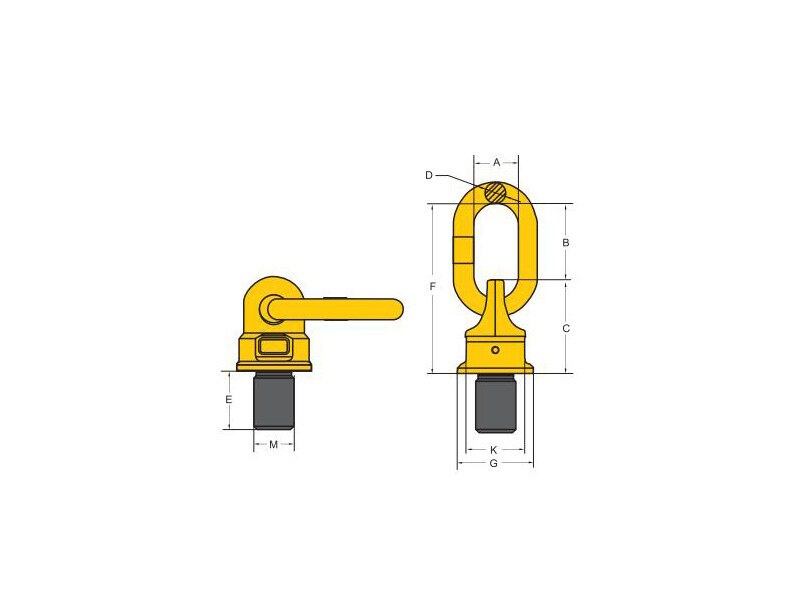

8-271 YOKE Swivel Point Drawing
8-271 YOKE Swivel Point Parameters
ITEM NO. | WLL/T | THREAD/M | WEIGHT/KG | |
Y | (Z) | |||
8-271-003 | 0.4 | 0.6 | M8X1.25 | 0.2 |
8-271-004 | 0.6 | 0.9 | M10X1.5 | 0.2 |
8-271-006 | 0.7 | 1.2 | M12X1.75 | 0.3 |
8-271-013 | 1.5 | 2.6 | M16X2 | 0.5 |
8-271-020 | 2.5 | 4 | M20X2.5 | 1.0 |
8-271-035 | 4 | 7 | M24X3 | 2.2 |
8-271-060 | 6 | 10 | M30X3.5 | 4.5 |
8-271-080 | 10 | 15 | M36X4 | 4.6 |
8-271-120 | 13 | 17 | M42X4.5 | 5.5 |
8-271-130 | 14 | 18 | M48X5 | 6.1 |
8-271-140 | 20 | 25 | M52X5 | 10.5 |
8-271-160 | 20 | 28 | M56X5.5 | 10.7 |
8-271-161 | 20 | 28 | M64X6 | 11.6 |
8-271-310 | 40 | 50 | M72X6 | 30.6 |
8-271-350 | 48 | 50 | M80X6 | 31.9 |
8-271-400 | 48 | 50 | M90X6 | 33.9 |
ITEM NO. | TECHNICAL PARAMETERS/MM | |||
A | B | C | D | |
8-271-003 | 29 | 32 | 40 | 8 |
8-271-004 | 29 | 32 | 40 | 8 |
8-271-006 | 35 | 50 | 45 | 10 |
8-271-013 | 38 | 50 | 54 | 13 |
8-271-020 | 38 | 54 | 68 | 13 |
8-271-035 | 40 | 66 | 88 | 19 |
8-271-060 | 50 | 86 | 120 | 22 |
8-271-080 | 50 | 86 | 120 | 22 |
8-271-120 | 65 | 110 | 122 | 25 |
8-271-130 | 65 | 110 | 122 | 25 |
8-271-140 | 70 | 120 | 150 | 32 |
8-271-160 | 70 | 120 | 150 | 32 |
8-271-161 | 70 | 120 | 150 | 32 |
8-271-310 | 90 | 130 | 210 | 45 |
8-271-350 | 90 | 130 | 210 | 45 |
8-271-400 | 90 | 130 | 210 | 45 |
ITEM NO. | TECHNICAL PARAMETERS/MM | |||
E | F | G | K | |
8-271-003 | 12 | 72 | 35 | 30 |
8-271-004 | 15 | 72 | 35 | 30 |
8-271-006 | 18 | 95 | 40 | 36 |
8-271-013 | 24 | 104 | 46 | 41 |
8-271-020 | 30 | 122 | 62 | 55 |
8-271-035 | 36 | 154 | 78 | 70 |
8-271-060 | 45 | 206 | 90 | 80 |
8-271-080 | 54 | 206 | 90 | 80 |
8-271-120 | 63 | 235 | 98 | 84 |
8-271-130 | 72 | 235 | 98 | 84 |
8-271-140 | 78 | 270 | 120 | 94 |
8-271-160 | 84 | 270 | 120 | 94 |
8-271-161 | 96 | 270 | 120 | 94 |
8-271-310 | 108 | 340 | 170 | 145 |
8-271-350 | 120 | 340 | 170 | 145 |
8-271-400 | 135 | 340 | 170 | 145 |
