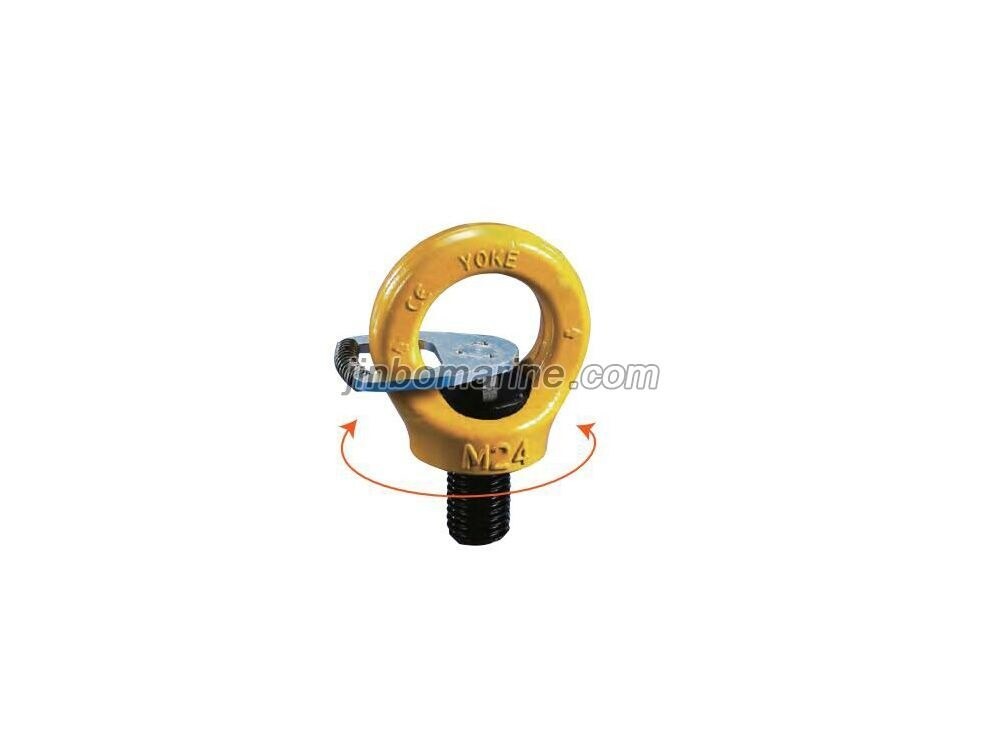

8-291k Metric Thread Yoke Eye Type Rotary Point With Stopplate
- Category:Chain Sling
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

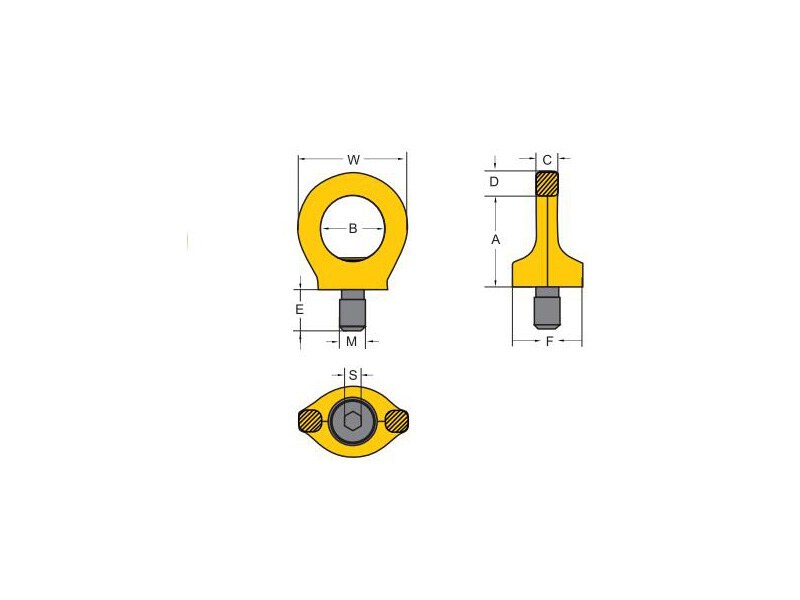

8-291k Metric Thread Yoke Eye Type Rotary Point With Stopplate Drawing
8-291k Metric Thread Yoke Eye Type Rotary Point With Stopplate Parameters
ITEM NO. | WLL/T | M | WEIGHT/KG | |
X | (Z) | |||
8-291k-003 | 0.3 | (1) | M8X1.25 | 0.1 |
8-291k-004 | 0.4 | (1) | M10X1.5 | 0.1 |
8-291k-007 | 0.75 | (2) | M12X1.75 | 0.2 |
8-291k-015 | 1.5 | (4) | M16X2 | 0.3 |
8-291k-023 | 2.3 | (6) | M20X2.5 | 0.6 |
8-291k-032 | 3.2 | (8) | M24X3 | 1.0 |
8-291k-045 | 4.5 | (12) | M30X3.5 | 1.8 |
8-291k-070 | 7.0 | (16) | M36X4 | 3.2 |
8-291k-090 | 9.0 | (24) | M42X4.5 | 5.0 |
8-291k-120 | 12.0 | (32) | M48X5 | 7.6 |
8-291k-140 | 12.0 | (32) | M56X5.5 | 9.2 |
8-291k-150 | 12.0 | (32) | M64X6 | 10.0 |
ITEM NO. | TECHNICAL PARAMETERS/MM | |||
A | B | C | D | |
8-291k-003 | 36 | 25 | 8 | 9 |
8-291k-004 | 36 | 25 | 8 | 9 |
8-291k-007 | 45 | 30 | 10 | 11 |
8-291k-015 | 52 | 35 | 14 | 13 |
8-291k-023 | 60 | 40 | 16 | 15 |
8-291k-032 | 72 | 48 | 19 | 18 |
8-291k-045 | 90 | 60 | 24 | 22 |
8-291k-070 | 109 | 72 | 29 | 27 |
8-291k-090 | 123 | 82 | 34 | 32 |
8-291k-120 | 144 | 94 | 38 | 37 |
8-291k-140 | 147 | 102 | 40 | 43 |
8-291k-150 | 147 | 102 | 40 | 43 |
ITEM NO. | TECHNICAL PARAMETERS/MM | |||
E | F | S | W | |
8-291k-003 | 12 | 25 | 6 | 44 |
8-291k-004 | 15 | 25 | 6 | 44 |
8-291k-007 | 18 | 33 | 8 | 52 |
8-291k-015 | 24 | 35 | 10 | 61 |
8-291k-023 | 30 | 44 | 12 | 70 |
8-291k-032 | 36 | 52 | 14 | 84 |
8-291k-045 | 45 | 60 | 17 | 105 |
8-291k-070 | 54 | 76 | 22 | 126 |
8-291k-090 | 63 | 88 | 24 | 147 |
8-291k-120 | 72 | 104 | 27 | 168 |
8-291k-140 | 84 | 124 | 27 | 178 |
8-291k-150 | 95 | 124 | 27 | 178 |
