8000KGS Delta Welding HHP Anchor
- Category:Offshore Anchor
- Delivery Time:30 Days
- Material:Steel Plate and Casting Steel
- Certificate:ABS, LR, BV, DNV, GL, RINA, NK, KR, RS, IRS, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China 8000KGS Delta Welding HHP Anchor:
Jinbo Marine supply the delta Welding HHP anchor with weight from 100kgs to 25000kgs, certified by ABS, LR, BV, GL, KR, IRS, CCS Certificate. From your securing order to final delivery, we wor hard to make sure everything goes as required and high quality.
Delta Welding HHP Anchors Specification
Material: High Quality Steel Plate and Casting Steel(Shank)
The anchor is to be suitable for kinds of ships use.
Magnefic Particle Examination of welding is to be performed after proof testing.

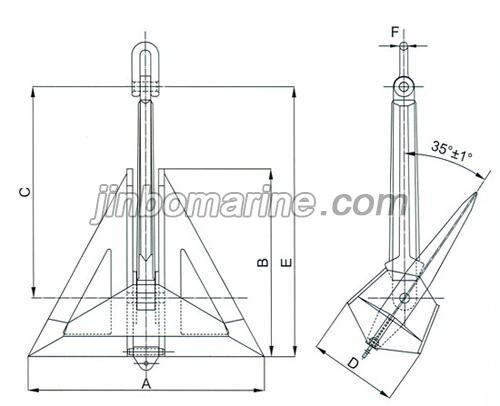

Anchor Weight and Dimension
|
Weight/Mass (KG) |
Size(mm) | |||||
| A | B | C | D | E | F | |
| 300KGS | 1200 | 960 | 1080 | 457 | 1380 | 45 |
| 500KGS | 1500 | 1200 | 1350 | 571 | 1725 | 50 |
| 1000KGS | 1875 | 1500 | 1686 | 714 | 2155 | 62 |
| 1080KGS | 1915 | 1530 | 1686 | 722 | 2200 | 62 |
| 2000KGS | 2363 | 1890 | 2124 | 900 | 2715 | 82 |
| 3000KGS | 2700 | 2160 | 2430 | 1028 | 3105 | 90 |
| 4000KGS | 2975 | 2380 | 2676 | 1133 | 3420 | 100 |
| 5000KGS | 3250 | 2600 | 2922 | 1238 | 3735 | 110 |
| 7000KGS | 3575 | 2860 | 3216 | 1361 | 4100 | 117 |
| 7500KGS | 3650 | 2925 | 3290 | 1390 | 4210 | 117 |
| 8000KGS | 3730 | 2900 | 3360 | 1420 | 43000 | 130 |
| 9000KGS | 3950 | 3160 | 3555 | 1504 | 4543 | 135 |
| 10000KGS | 4100 | 3280 | 3690 | 1561 | 4715 | 140 |
| 12000KGS | 4490 | 3575 | 4030 | 1695 | 5320 | 145 |
| 13500KGS | 4670 | 3720 | 4195 | 1765 | 5535 | 150 |
| 15000KGS | 4845 | 3875 | 4355 | 1830 | 5735 | 150 |
| 18000KGS | 5140 | 4080 | 4610 | 1940 | 6080 | 160 |
| 20000KGS | 5330 | 4260 | 4790 | 2010 | 6310 | 170 |
| 22500KGS | 5490 | 4360 | 4905 | 2060 | 6470 | 180 |
| 25000KGS | 5740 | 4590 | 5160 | 2165 | 6795 | 195 |
Delta Superior Anchor Photos

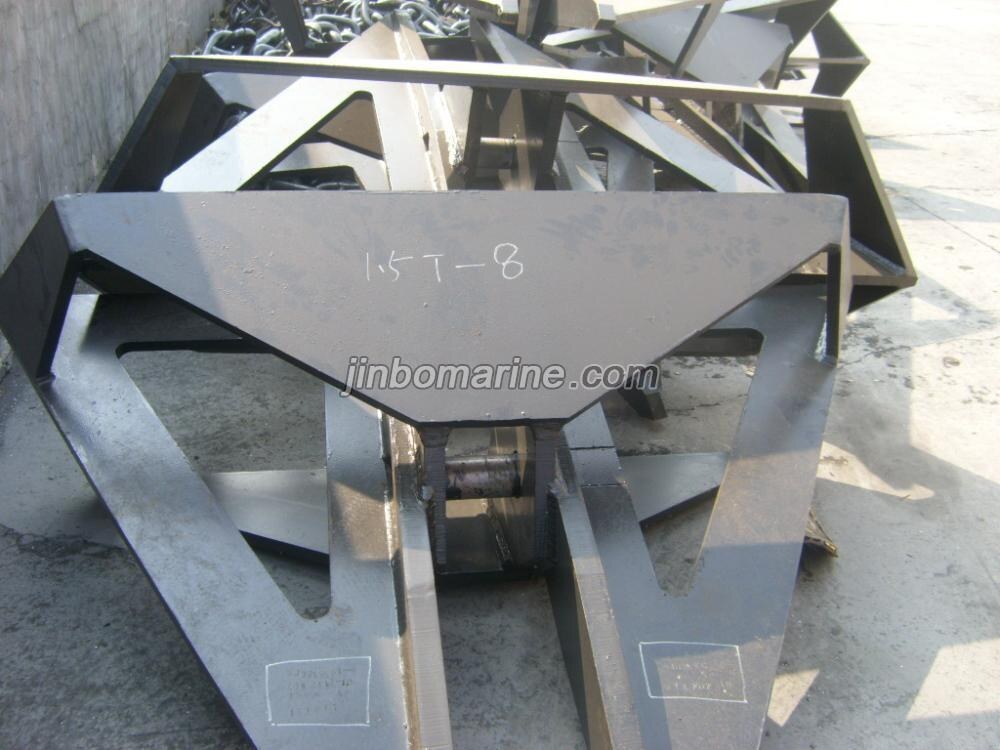

1500kgs Anchors Head

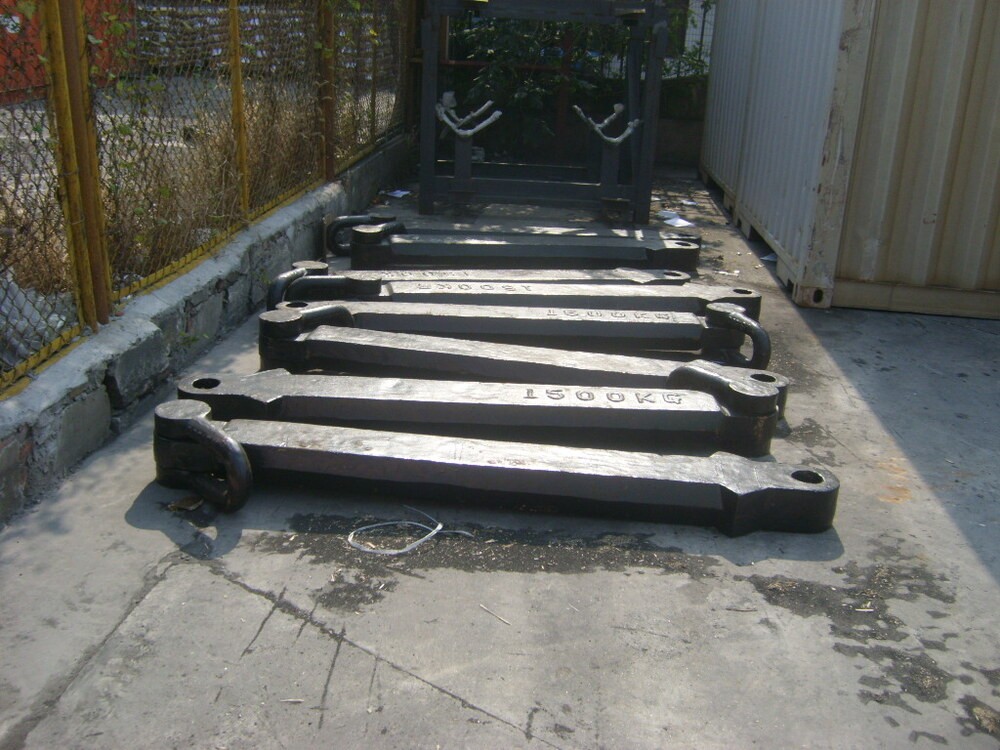

1500KGS Anchor Shank
Please specify the weight and quanity, FOB or CIF when enquiry.
For more details, please feel freel to contact us.
