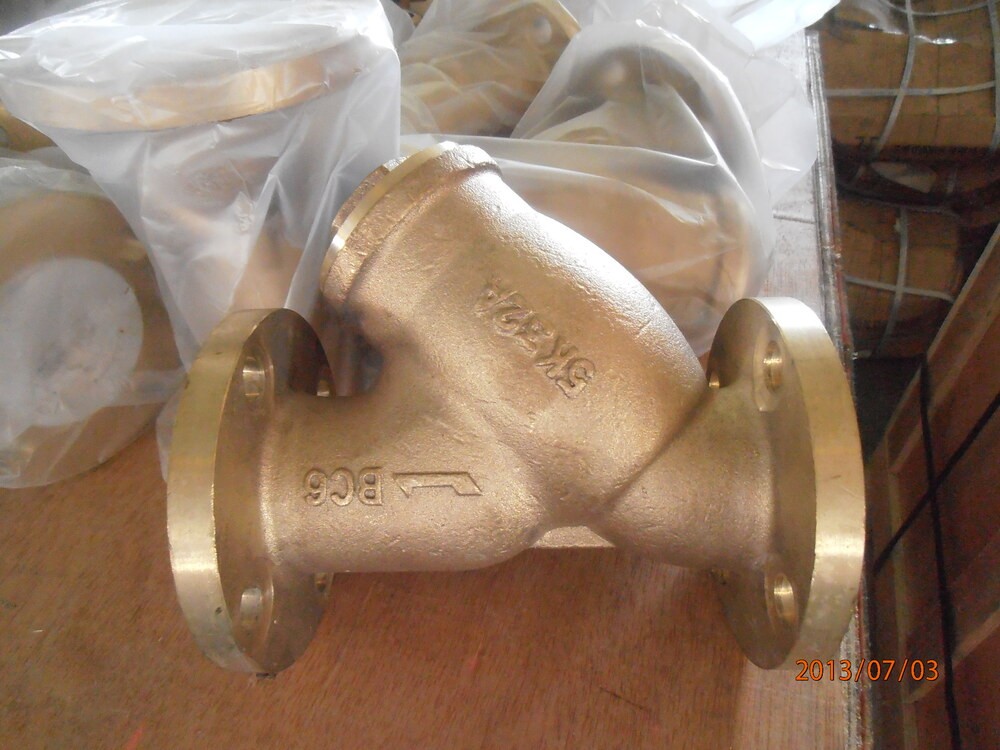

Marine Bronze Y strainer JIS F7220Q 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Y strainer JIS F7220Q 5K:

Design Standard: JIS F7220Q-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 1.05Mpa

Flange size as per JIS B2220 - 5K

Main Material:

1.Body: Bronze (BC6)

2.Bonnet: Bronze (BC6)

3.Strainer: Stainless Steel (SUS304)

4.Gasket: non-asbestos

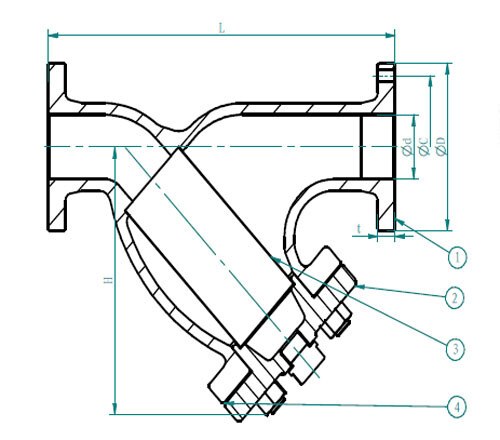

Main Size List(mm):

DN
d L D C Hole (n-d) t H
20 20 200 85 65 4-12 14 127
25 25 225 95 75 4-12 14 155
32 32 260 115 90 4-15 16 164
40 40 280 120 95 4-15 16 180
50 50 320 130 105 4-15 16 208
65 65 350 155 130 4-15 18 253
80 80 373 180 145 4-19 18 268

*We also manufacture it with 10K.
