A60 Fireproof Door
- Category:Marine Door
- Material:Steel
- Standards:CB3234-84
- Certificate:EC, CCS
- Packing Details:Iron Pallet
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

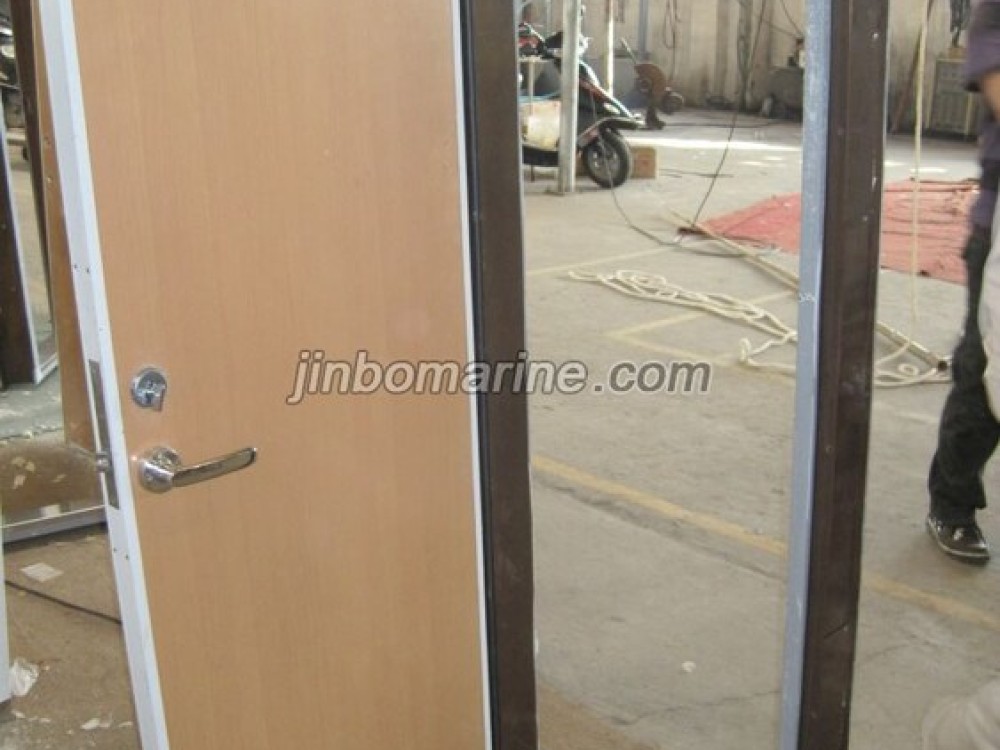

China A60 Fireproof Door:
Standard: CB3234-84
The steel fireproof door meets the fireproof requirements of SOLAS in 1974, corrected in 1983.We have the EC, ABS, BV, GL, NK, CCS type approval certificate for the door.It can be used in passage way of fireproof area,bulkhead,casing wall of engine room and accommodations of ship.
Class:A60,A0,A30,B15,B0,
B class is with emergency exit (kick-out panel) or vent louver.
Color of the door can be selected by the customer. We have the color sample for your reference.
Opening Direction: Left, Right, Outwards, Inwards.

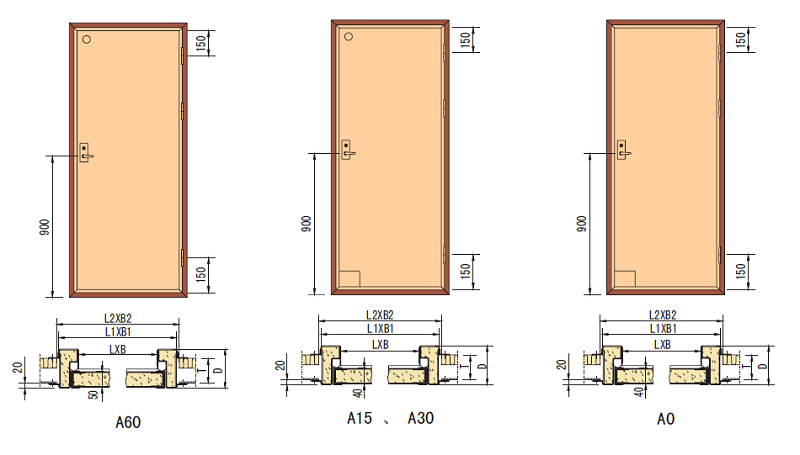

Main Size List(mm):
Class | Doorways SiZE | Frame Size | Opening Size of Wall | T | D |
LXB | L1XB1 | L2XB2 | Decided by the designer | T+40 | |
A | 1600X600 | 1693x693 | 1700x700 | ||
1600X650 | 1693X743 | 1700X750 | |||
1650X600 | 1693X793 | 1700X800 | |||
1650X700 | 1743X693 | 1750X750 | |||
1700X600 | 1793X693 | 1800X700 | |||
1700X650 | 1793X743 | 1800X750 | |||
1700X700 | 1793X793 | 1800X800 | |||
1800X600 | 1893X693 | 1900X700 | |||
1800X700 | 1893X793 | 1900X800 | |||
1800X800 | 1893X893 | 1900X900 | |||
1850X800 | 1943X893 | 1950X900 | |||
B | 1600X600 | 1664X680 | 1670X685 | ||
1600X650 | 1664X730 | 1670X735 | |||
1650X600 | 1714X680 | 1720X685 | |||
1650X700 | 1714X780 | 1720X785 | |||
1700X600 | 1764X680 | 1770X685 | |||
1700X650 | 1764X730 | 1770X735 | |||
1700X700 | 1764X780 | 1770X785 | |||
1800X600 | 1864X680 | 1870X685 | |||
1800X700 | 1864X780 | 1870X785 | |||
1800X800 | 1864X880 | 1870X885 | |||
1850X800 | 1914X880 | 1920X885 |
