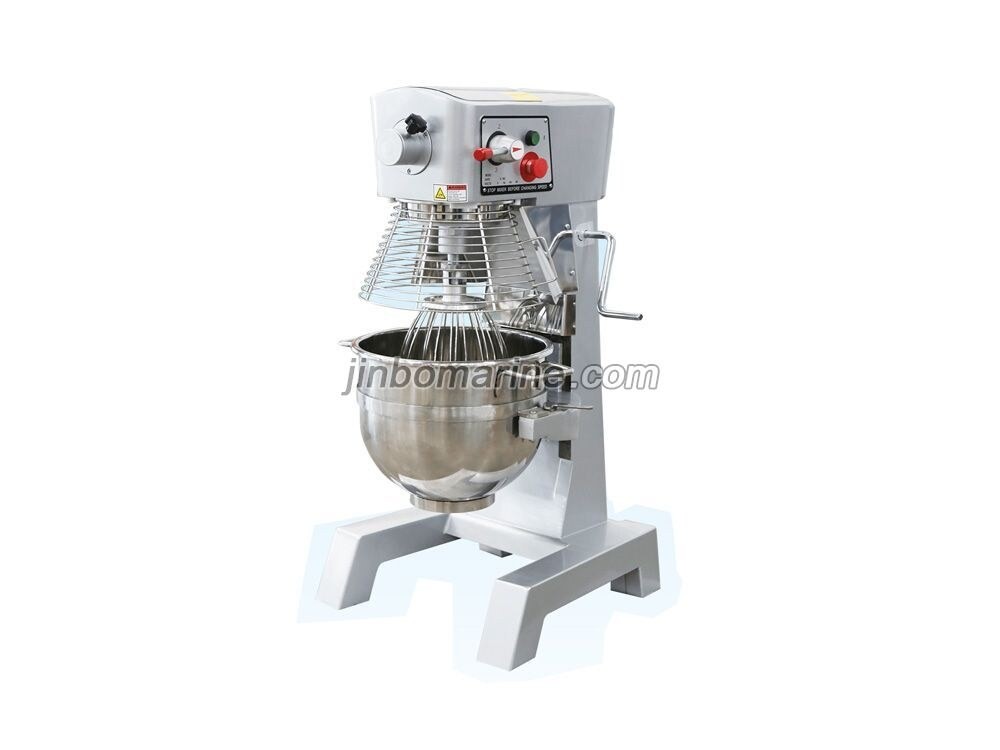

AE-40N Marine Multi-Purpose Machine

1. The planetary movement of the agitator, so that the food can be fully mixed
2. It adopts mechanical speed change, has multi-level speed, and is equipped with three types of agitators: snake-shaped, beat-shaped, and flower-bud
3. Stainless steel mixing barrel
4. A safety net cover is set on the mixing barrel
5. The base form is suitable for installation and fixing on ships

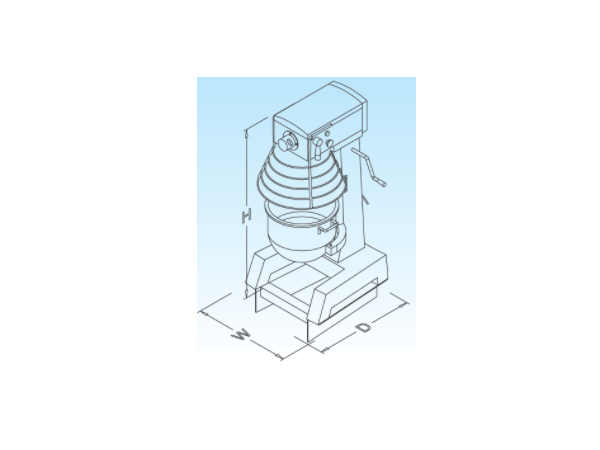

AE-40N Marine Multi-Purpose Machine Drawing

AE-40N Marine Multi-Purpose Machine Parameters

Model K7 AE-20N AE-30N AE-40N AE-60N
Volume(L) 7 20 30 40 60
Voltage 220v-1PH-50Hz 220V-1PH-50Hz 380/415V-3PH-50Hz 440/480V/3PH-60Hz 380/415V-3PH-50Hz 440/480V/3PH-60Hz
Power(kw) 0.37 1.1 1 1.5 3
Size(mm) 460X290X470 560X600X780 625X610X945 570X615X1130 700X1050X1445
Weight(kg) 29 100 180 180 410
