AF-KYDH304SD-23 Fuel Oli Purifier, Lube Oil Purifier
- Category:Oil Purifier
- Material:Stainless steel
- Standards:CCS, BV, ABS, GL,LR, NK
- Certificate:CCS
- Packing Details:Standard Export Packaging
- Delivery Time:15-20days
- Supply Ability:10 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China AF-KYDH304SD-23 Fuel Oli Purifier, Lube Oil Purifier:
Product use: the water in the separable
Marine fuel oil and impurities, clarify and purification effect, reduce running
cost, prolong the service life of the engine.Can also be used for other mutual
miscibility, the density of different liquid separation.(vegetable oil,
lanolin, animal oil, etc.)
Product performance: this machine is durable, performance fully comply with
GB/T5745-2002.

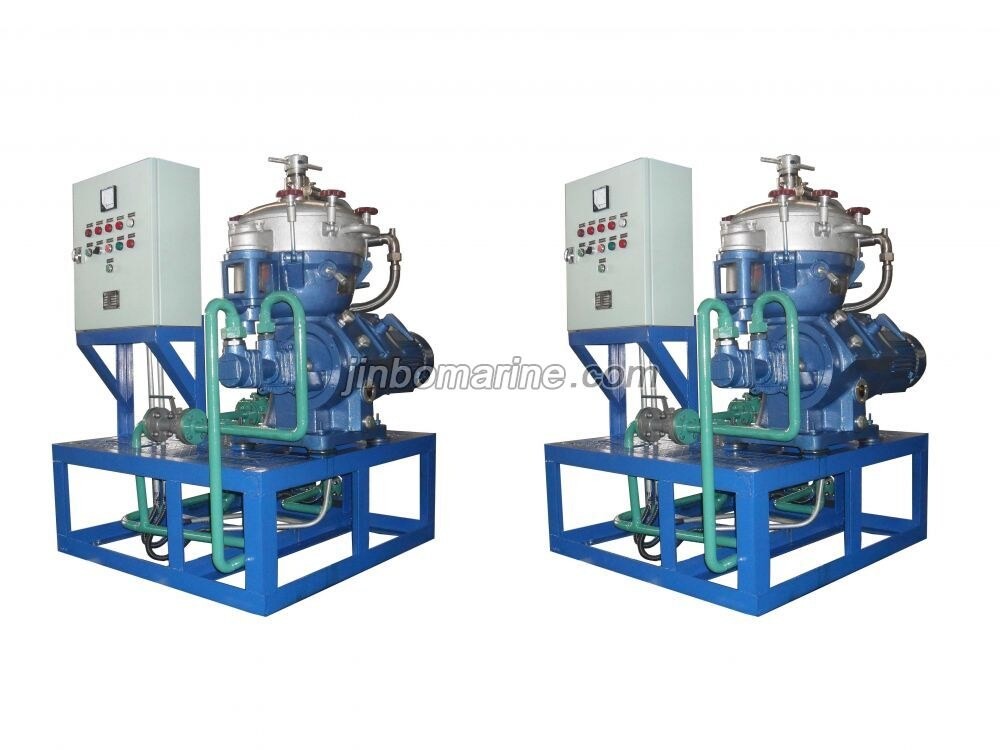

Product overview
Separator unit as the separator, heating device, for oil pump and heater,
sensor and automatic control device, control box, base, frame, piping,
instruments, valves and other integrated together, separating main function
independently and its auxiliary function integration of equipment or device.
KYDH304SD - 23 type Marine mineral oil separator is mainly used in steel ships
or riverboat clarification of heavy fuel oil and purification treatment, can
also be applied to heavy diesel oil, lubricating oil, hydraulic oil, and the
clarification of turbine oil and purification treatment, slow the abrasion of
diesel engine or other type machine, prolong the service life of machine and
oil.This model also can be applied to other areas within heterogeneous
suspension or emulsion separation.
The aircraft dantian drum parts through the precise dynamic balance check, has
a high reliability and stable operation, little vibration, low noise
advantages;Using the clear pattern drum structure, the structure is reliable,
good separation performance, widely used;In addition the aircraft also has
compact structure, cover an area of an area small, simple operation, easy to
use, convenient maintenance, class model in large quantity.
Easy installation and reasonable in ships, oil module, greatly reduce the labor
intensity of the crew, and reliable operation of the machine, is the first
choice for ship oil systems and equipment.
This type of design, manufacturing and acceptance in accordance with
GB/T5745-2002 "Marine disc separator"
The working principle of
KYDH304SD - 23 type separator is mainly composed of drum shaft, horizontal,
vertical shaft, frame, speed sensor, brake, water distribution agencies and
motor, etc.Start the process smooth, uniform acceleration, effectively prevent
the motor and gear for overload.Vertical shaft with elastic support structure,
can effectively reduce wear and reduce the influence of drum vibration on the
machine.
For separation of disc material into the drum separation zone separation and
using the material of different density of the oil, water, slag in centrifugal
field is obtained in different centrifugal force and separation.Separation of
light heat the oil in the pump output, water after the heavy heart pump output,
violent solid impurities deposition inside the drum surface, through the
operation of water discharge of rotating drum movement control, timing
discharge outside.
Rated Capacity | L/h | 3000 |
Separation Factor | a/g | 10376 |
Rotate Speed | r/min | 8300 |
Slag discharge way | Fully Automatic | |
Discharge pressure | Mpa | ≤0.2 |
start time | min | ≤6 |
Motor Power | kw | 4 |
Weight | KG | 800 |
Overall Dimensions | mm | 1330*1305*1650 |
