Marine Cast Iron Lift Check Globe Valve JIS F7358 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Iron Lift Check Globe Valve JIS F7358 5K:

Design Standard: JIS F7358-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa~0.4Mpa

Flange size as per JIS B2220 - 5K

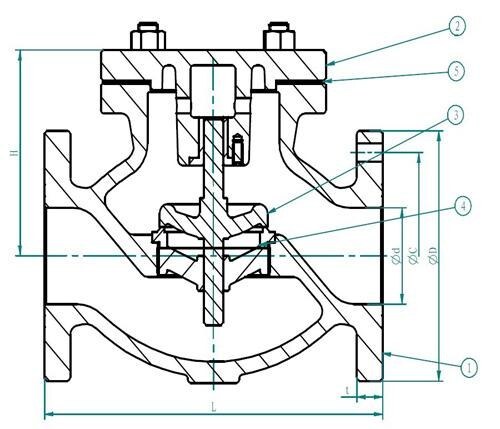

Main Material:

1-Body: Cast Iron (FC200)

2-Bonnet: Cast Iron (FC200)

3-Disc: Bronze (BC6)

4-Seat: Bronze (BC6)

5-Gasket: non-asbestos

Main Size List(mm):

IMPA CODE DN L D C No of Bolt Hole Bolt Hole Diameter t H
751311 50 210 130 105 4 15 16 107
751312 65 250 155 130 4 15 18 124
751313 80 280 180 145 4 19 18 129
751314 100 340 200 165 8 19 20 146
751315 125 410 235 200 8 19 20 166
751316 50 480 265 230 8 19 22 188
751317 200 570 320 280 8 23 24 212
