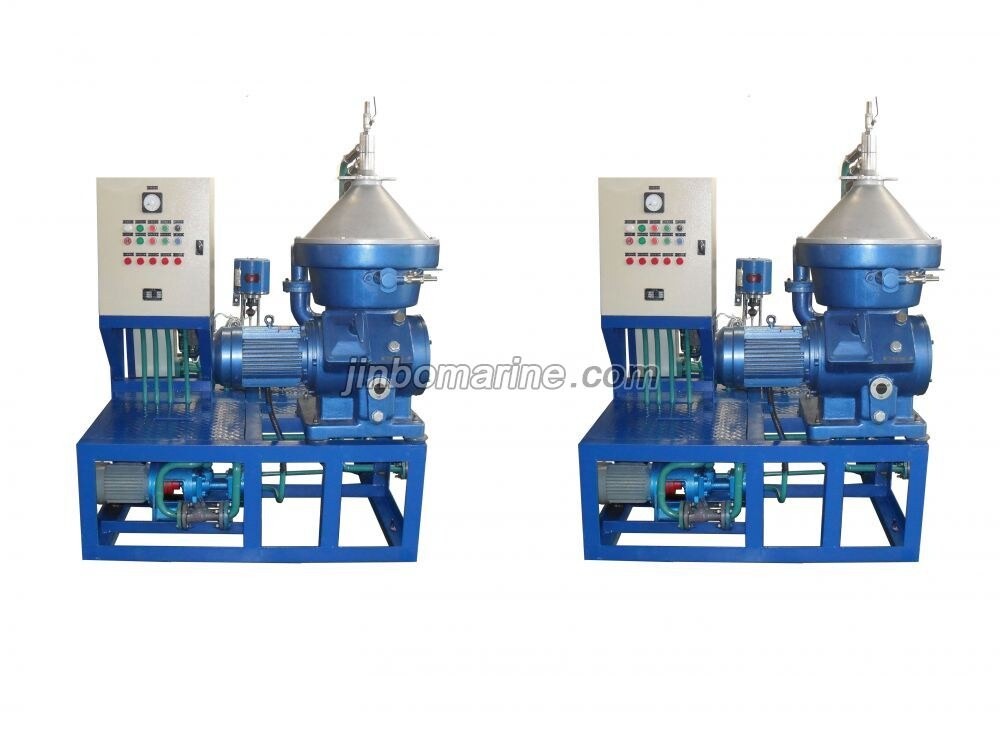

AF-KYDR203DD-23 Marine Fuel Oil Purifier

Product use: the water in the separable Marine fuel oil and impurities, clarify and purification effect, reduce running cost, prolong the service life of the engine.Can also be used for other mutual miscibility, the density of different liquid separation.(vegetable oil, lanolin, animal oil, etc.)

Product performance: this machine is durable, performance fully comply with GB/T5745-2002.
Product overview
Separator unit as the separator, heating device, for oil pump and heater, sensor and automatic control device, control box, base, frame, pipeline, instrument, valves and other integrated together, separating main function independently and its auxiliary function integration of equipment or device.
KYDR203DD - 23 type Marine mineral oil separator is mainly used in steel ships or riverboat clarification of heavy fuel oil and purification treatment, can also be applied to heavy diesel oil, lubricating oil, hydraulic oil, and the clarification of turbine oil and purification treatment, slow the abrasion of diesel engine or other type machine, prolong the service life of machine and oil.This model also can be applied to other areas within heterogeneous suspension or emulsion separation.
Easy installation and reasonable in ships, oil module, greatly reduce the labor intensity of the crew, and reliable operation of the machine, is the first choice for ship oil systems and equipment.
This type of design, manufacturing and acceptance in accordance with GB/T5745-2002 "Marine disc separator"
The working principle of
KYDH203DD - 23 type separator is mainly composed of drum shaft, horizontal, vertical shaft, frame, devices, brakes and motor, etc.Start the process smooth, uniform acceleration, effectively prevent the motor and gear for overload.Vertical shaft with elastic support structure, can effectively reduce wear and reduce the influence of drum vibration on the machine.
For separation of disc material into the drum separation zone separation and using the material of different density of the oil, water, slag in centrifugal field is obtained in different centrifugal force and separation.Separation of light heat the oil in the pump output, water, solid impurities deposition inside the drum with downtime by manual removal.

Rated Capacity	L/h	1500
Separation Factor	a/g	12094
Rotate Speed	r/min	8300
Slag discharge way		Artificial discharge
Discharge pressure	Mpa	≤0.2
start time	min	≤6
Motor Power	kw	4
Weight	KG	600
Overall Dimensions	mm	1150*1105*1500
