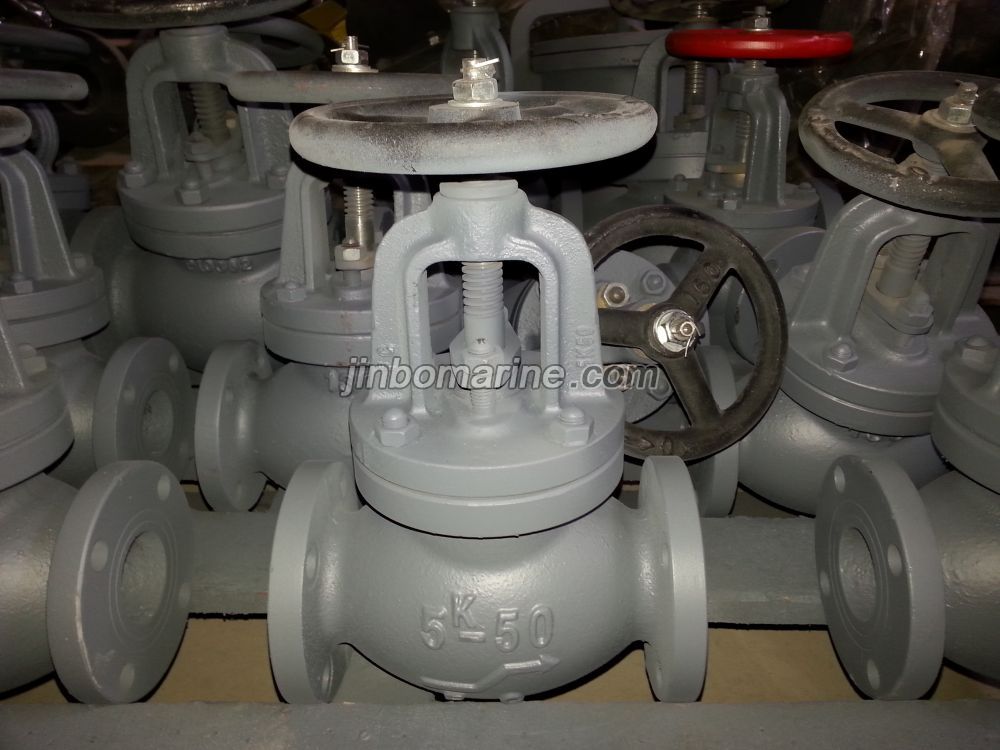

Marine Cast Iron Globe Valve JIS F7305 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Iron Globe Valve JIS F7305 5K:

Design Standard: JIS F7305-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 - 5K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

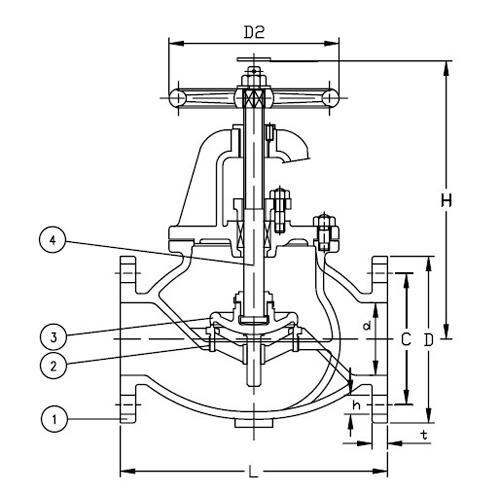

Main Size List(mm):

IMPA Code Size L D C No of Bolt Hole h t H D2
750201 50 210 130 105 4 15 16 270 160
750202 65 250 155 130 4 15 18 300 180
750203 80 280 180 145 4 19 18 310 180
750204 100 340 200 165 8 19 20 360 224
750205 125 410 235 200 8 19 20 390 250
750206 150 480 265 230 8 19 22 445 280
750207 200 570 320 280 8 23 24 530 315
750208 250 740 385 345 12 23 26 650 355
750209 300 840 430 390 12 23 28 740 400
750210 350 840 480 435 12 25 30 840 500
750211 400 1050 540 495 16 25 30 940 630
