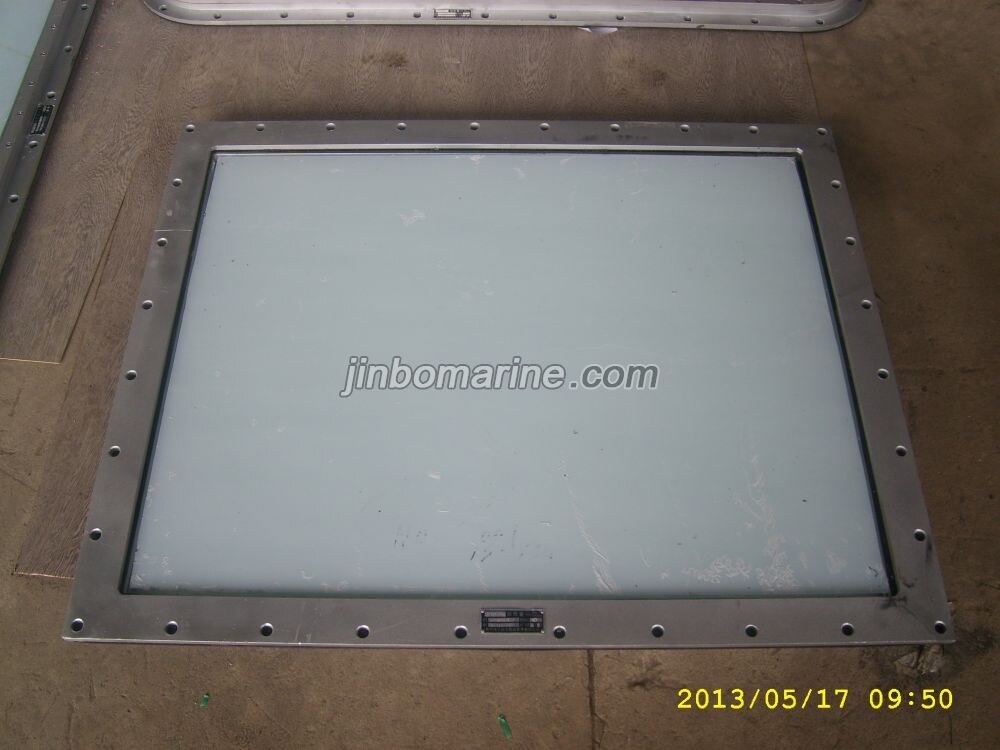

Aluminum Double-Layers Hollow Glass Soundproof Window
- Category:Marine Window
- Material:Aluminum
- Standards:Standard: CB/T3917-1999
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Aluminum Double-Layers Hollow Glass Soundproof Window:
Standard: CB/T3917-1999
It is used on the cabin which needs soundproof, heat insulation and thermal insultion.
Main Material:
Frame: Aluminum Alloy
Glass: G-safety glass, P-plate glass, J-Composite glass, C-Dark Brown Safety Glass

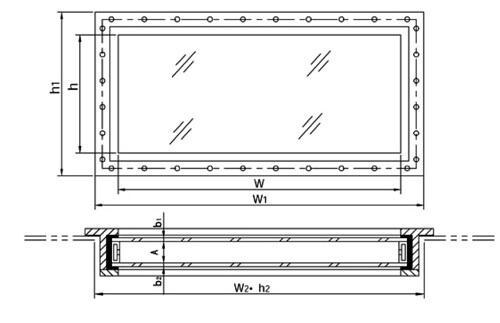

Main Size List(mm):
| Nominal Size | Outside Size | Opening Size | Glass Thickness | Hollow Distance | Glass Thickness | Soundproodf | Weight |
| wxh | w1xh1 | w2xh2 | b1 | A | b2 | TL (dB) | kgs |
| 300x425 | 420x545 | 352x477 | 6 | 6 | 6 | 29 | 10 |
| 300x425 | 420x545 | 352x477 | 6 | 9 | 6 | 30.5 | 10 |
| 355x500 | 475x620 | 407x552 | 6 | 6 | 6 | 29 | 15.6 |
| 355x500 | 475x620 | 407x552 | 6 | 9 | 6 | 31.5 | 16.2 |
| 400x560 | 520x680 | 452x612 | 6 | 6 | 6 | 28.6 | 18.2 |
| 400x560 | 520x680 | 452x612 | 6 | 9 | 6 | 31.5 | 18.6 |
| 450x360 | 570x750 | 520x682 | 6 | 9 | 6 | 31.5 | 21.2 |
| 500x710 | 620x830 | 552x762 | 6 | 9 | 6 | 31 | 25.3 |
| 900x630 | 1020x750 | 952x682 | 6 | 12 | 6 | 30.5 | 29.4 |
| 900x630 | 1020x750 | 952x682 | 8 | 16 | 6 | 31.8 | 33.2 |
| 900x630 | 1020x750 | 952x682 | 8 | 24 | 6 | 35 | 34 |
| 1000x800 | 1120x920 | 1052x852 | 8 | 16 | 6 | 31 | 45.9 |
| 1000x800 | 1120x920 | 1052x852 | 8 | 24 | 6 | 35 | 46.7 |
| 1200x800 | 1320x920 | 1252x852 | 8 | 24 | 6 | 34 | 54.4 |
| 1400x800 | 1520x920 | 1452x852 | 8 | 24 | 6 | 33 | 59.2 |
| 1600x1000 | 1720x1120 | 1652x1052 | 8 | 24 | 6 | 32 | 81.3 |
| 1800x1200 | 1920x1320 | 1852x1252 | 8 | 24 | 6 | 30.52 | 104.5 |
*The size in the above list is just for reference. The actual size is decided by the customer according to the vessel.
