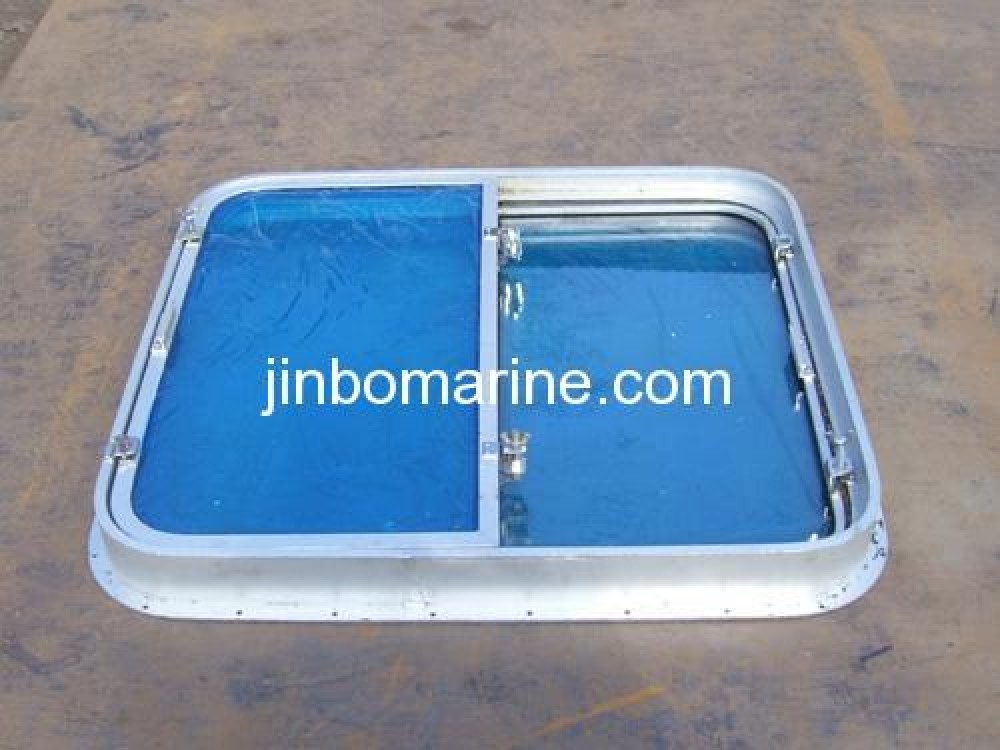

Aluminum Sliding Window
- Category:Marine Window
- Material:Aluminum
- Standards:CB/T3765-1996
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Aluminum Sliding Window:
Standard: CB/T3765-1996
It can be at the wheelhouse and superstructure above the freeboard deck of the vessels.

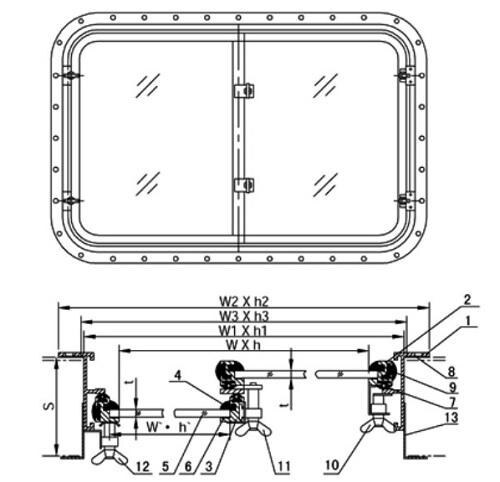

Main Parts & Material:
1-Window Frame: Aluminum Alloy
2-Window Inner Frame: Aluminum Alloy
3-Window Outer Frame:Aluminum Alloy
4~9-Seal Strip: Rubber
10~12-Butterfly Clip: Carbon Steel or Stainless Steel
13-Window Box: Aluminum Alloy
Main Size List(mm):
| Nominal Size | Clear Size | Window Frame Size | Opening Size | Glass Size | Max Pressure(Kpa) | Weight(kgs) | ||||
| wxh | W'xh'xr' | w1xh1xr | w2xh2xr2 | w3xh3xr3 | thickness(t) | w4xh4xr4 | t=8 | t=6 | t=8 | t=6 |
| 740x500 | 355x500x50 | 825x588x94 | 890x650x125 | 840x600x100 | 6,8 | 373x518x58 | 45 | 26 | 20.0 | 18.9 |
| 830x560 | 400x560x50 | 918x648x94 | 980x710x125 | 930x660x100 | 418x578x58 | 36 | 21 | 21.9 | 20.7 | |
| 930x630 | 450x630x100 | 1018x718x144 | 1080x780x175 | 1030x730x150 | 468x648x108 | 28 | 16 | 24.8 | 23.3 | |
| 1030x710 | 500x710x100 | 1118x798x144 | 1180x860x175 | 1130x810x150 | 518x728x108 | 23 | 13 | 28.0 | 26.1 | |
| 500x630 | 235x630x50 | 588x718x94 | 650x780x125 | 600x730x100 | 253x648x58 | 66 | 37 | 18.6 | 17.8 | |
| 600x710 | 285x710x50 | 688x798x94 | 750x860x125 | 700x810x100 | 303x728x58 | 46 | 26 | 21.5 | 20.4 | |
| 750x800 | 360x800x50 | 838x888x94 | 900x950x125 | 850x900x100 | 378x818x58 | 30 | 18 | 25.6 | 24.0 | |
