BA Type JIS B2801 Bow Shackle

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Techinical Specification

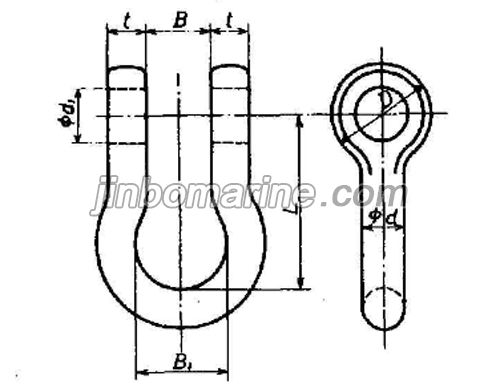

Nominal Size t d B B1 D d1 L Weight(kg)
34 34 39 50 98 85 41 176 8.88
36 36 42 54 105 90 43 190 10.49
38 38 44 57 110 95 47 198 11.74
40 40 47 60 118 100 49 212 13.16
42 42 49 63 123 105 53 220 15.25
44 44 51 66 128 110 56 230 18.24
46 46 53 68 133 115 58 240 20.71
48 48 55 72 138 120 60 248 23.21
50 50 57 75 143 125 62 257 24.85
55 55 62 83 155 138 67 280 38.6
60 60 69 90 178 150 72 31 54.47
65 65 75 98 188 164 79 338 64.68
70 70 81 105 202 178 85 360 77.95
75 75 87 112 218 192 92 387 98.49
80 80 93 120 232 206 98 414 119.37
85 85 99 128 248 220 104 440 144.44
90 90 104 135 260 232 110 473 171.5

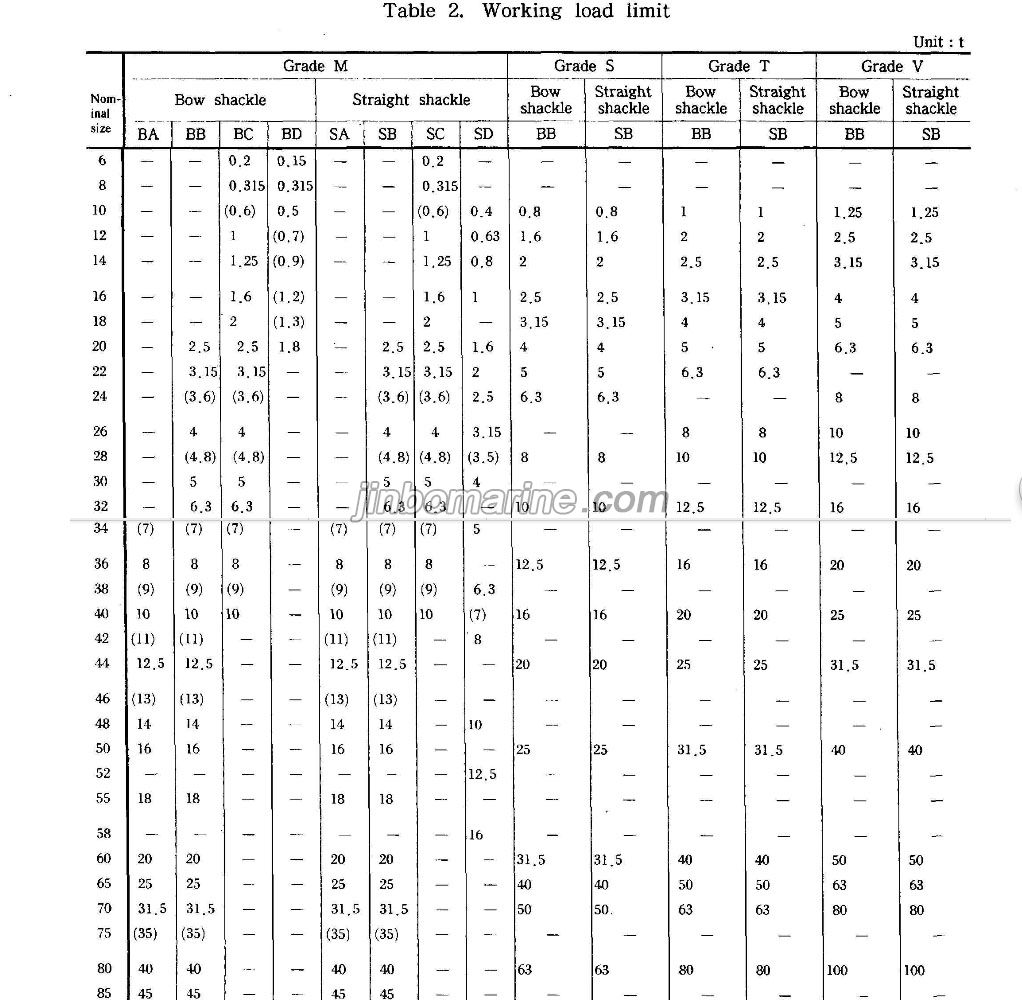

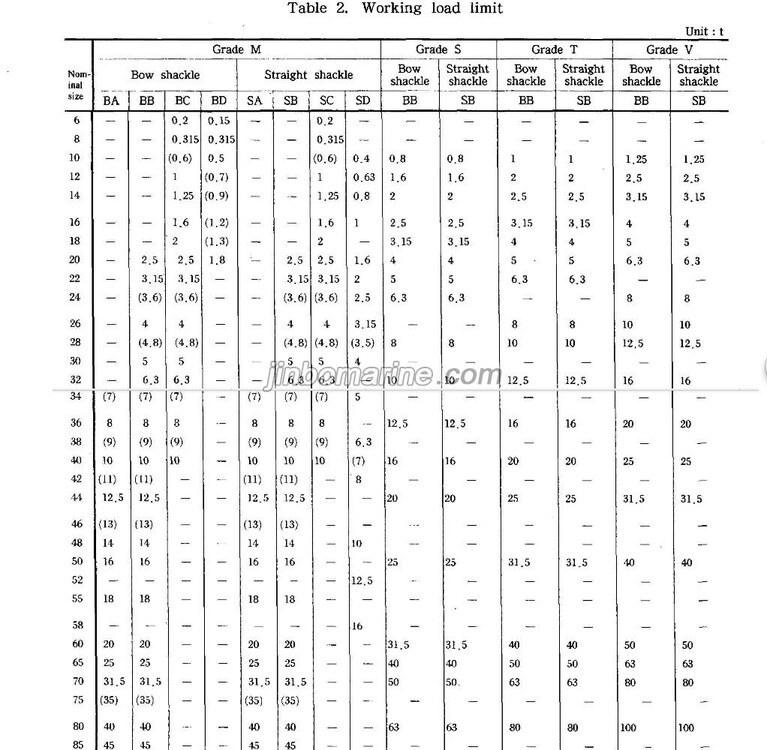

Working Load limit
