BC Type JIS B2801 Bow Shackle

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Technical Specification

Nominal Size t d B B1 D d1 L Weight(kg)
6 6 8 11 20 17 9 36 0.07
8 8 10 14 25 21 11 45 0.15
10 10 12 17 30 25 13 54 0.31
12 12 14 20 35 32 16 63 0.48
14 14 16 24 40 36 18 72 0.67
16 16 18 26 45 40 20 80 0.93
18 18 21 29 53 45 22 95 1.35
20 20 23 31 58 50 25 104 2.15
22 22 26 34 65 55 27 117 2.98
24 24 28 39 70 62 31 126 3.77
26 26 30 41 75 66 33 135 4.45
28 28 32 43 80 70 35 144 5.36
30 30 34 45 85 75 37 153 6.1
32 32 37 48 93 80 39 167 7.56
34 34 39 50 98 85 41 176 9.05
36 36 42 54 105 90 43 190 10.32
38 38 44 57 110 95 47 198 11.7
40 40 47 60 118 100 49 212 13.13

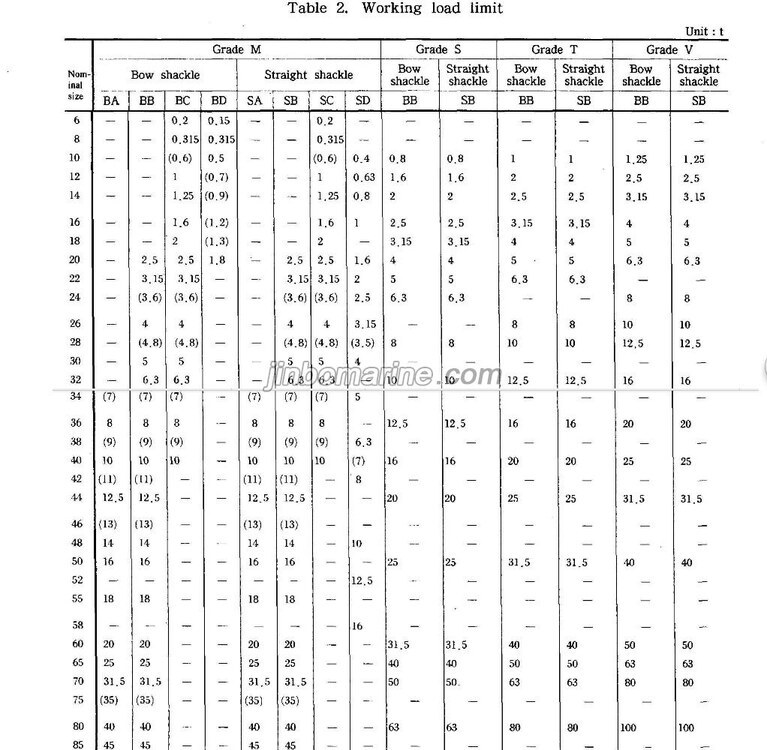

Working Loat Limits
