BD Type JIS B2801 Bow Shackle

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

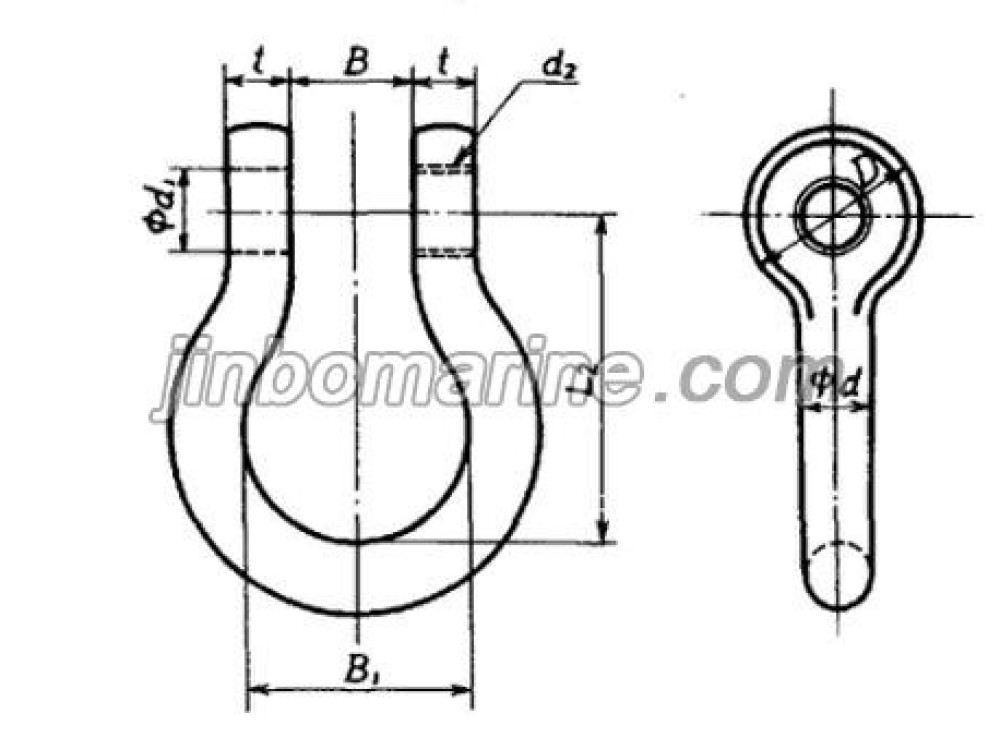

BD Type JIS B2801 Bow Shackle Specification

Nominal Size t d B B1 D d1
6 6 8 12 24 17 9
8 8 10 16 30 24 11
10 10 12 20 36 28 13
12 12 14 24 42 32 16
14 14 16 28 48 35 18
16 16 18 32 54 40 21
18 18 20 36 60 45 22
20 20 22 40 66 50 25

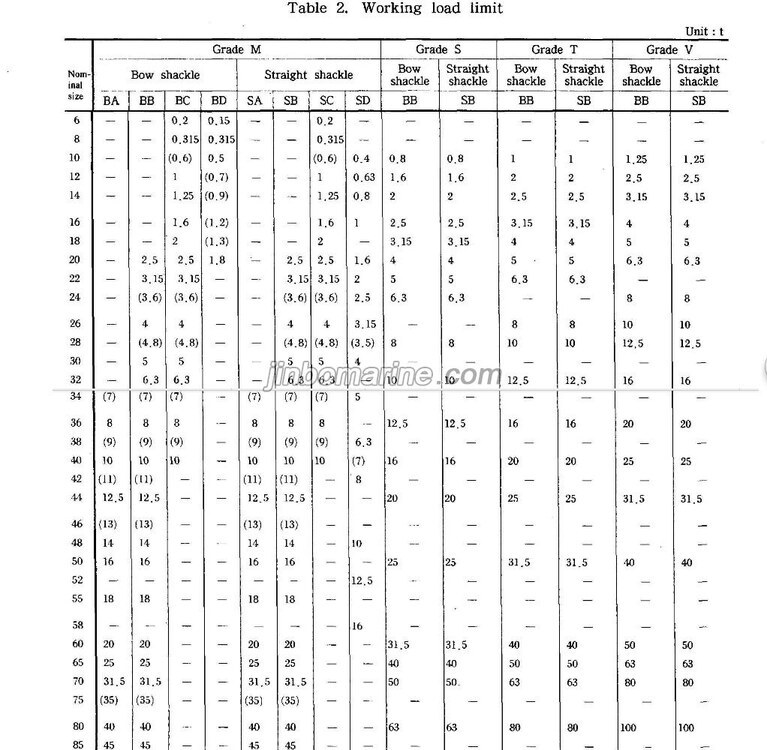

JIS F B2801 Shackle Work Load Limit
