BLT089 Angular Contat Bearing Swivels-OU Style
- Category:Chain Sling
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

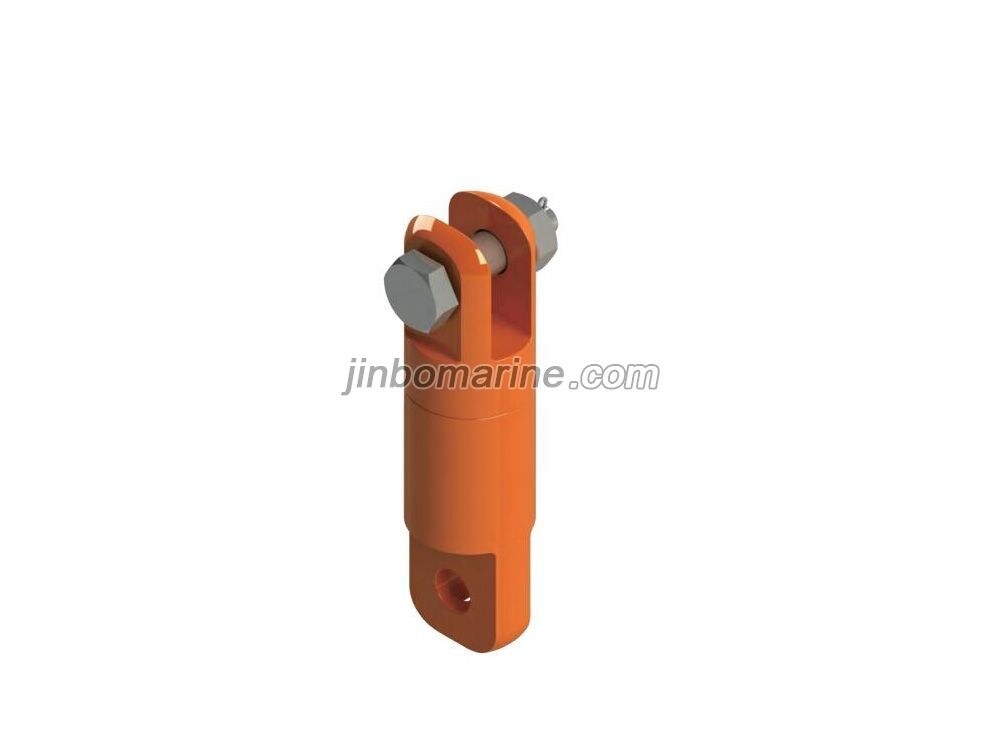

BLT089 Angular Contat Bearing Swivels-OU Style
The rotating rings are made of high-strength and high-toughness special alloy steel forging and finishing, all of which are modulated and heat treated.
The design safety factor of the rotating ring is 4:1
The independent test load should be twice the safe working load when the rotating ring is tested and certified.
The surface of the rotating ring is galvanized or plastic coated, so that the product can have better corrosion resistance and longevity.
The rotating ring is provided with a grease nipple to facilitate maintenance and make the product have better performance.

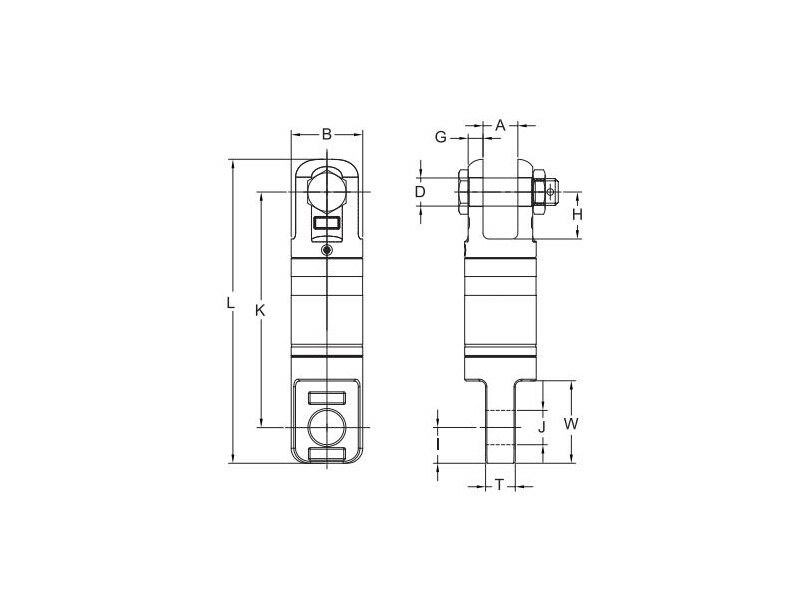

BLT089 Angular Contat Bearing Swivels-OU Style Drawing
BLT089 Angular Contat Bearing Swivels-OU Style Parameters
ITEM NO. | SIZE | WLL/T | WEIGHT/KG | |||
BLT089-007 | 0.75 | 0.75 | 0.5 | |||
BLT089-015 | 1.5 | 1.5 | 0.9 | |||
BLT089-030 | 3 | 3 | 2.2 | |||
BLT089-050 | 5 | 5 | 4.4 | |||
BLT089-085 | 8.5 | 8.5 | 7.4 | |||
BLT089-100 | 10 | 10 | 18.0 | |||
BLT089-150 | 15 | 15 | 21.2 | |||
BLT089-250 | 25 | 25 | 40 | |||
BLT089-350 | 35 | 35 | 46.7 | |||
BLT089-600 | 60 | 60 | ||||
ITEM NO. | TECHNICAL PARAMETERS/MM | |||||
B | K | L | A | G | ||
BLT089-007 | 34 | 102 | 128 | 15 | 6 | |
BLT089-015 | 40 | 112 | 152 | 18 | 8 | |
BLT089-030 | 54 | 160 | 210 | 23 | 10 | |
BLT089-050 | 65 | 203 | 267 | 32 | 14 | |
BLT089-085 | 78 | 254 | 326 | 40 | 14 | |
BLT089-100 | 106 | 310 | 410 | 42 | 25 | |
BLT089-150 | 116 | 320 | 440 | 48 | 25 | |
BLT089-250 | 137 | 405 | 540 | 62 | 30 | |
BLT089-350 | 154 | 405 | 540 | 62 | 30 | |
BLT089-600 | 270 | 670 | 890 | 100 | 75 | |
ITEM NO. | TECHNICAL PARAMETERS/MM | |||||
D | H | T | J | W | I | |
BLT089-007 | 10 | 22 | 12 | 10.5 | 35 | 13 |
BLT089-015 | 13 | 26 | 15 | 13.5 | 46 | 20 |
BLT089-030 | 19 | 32 | 20 | 20 | 57 | 25 |
BLT089-050 | 22 | 37 | 26 | 33 | 69 | 32 |
BLT089-085 | 30 | 54 | 32 | 37 | 88 | 38 |
BLT089-100 | 38 | 54 | 42 | 44 | 104 | 50 |
BLT089-150 | 38 | 57 | 49 | 54 | 117 | 60 |
BLT089-250 | 50 | 70 | 60 | 66 | 140 | 70 |
BLT089-350 | 50 | 70 | 60 | 66 | 140 | 70 |
BLT089-600 | 80 | 115 | 70 | 80 | 230 | 115 |
