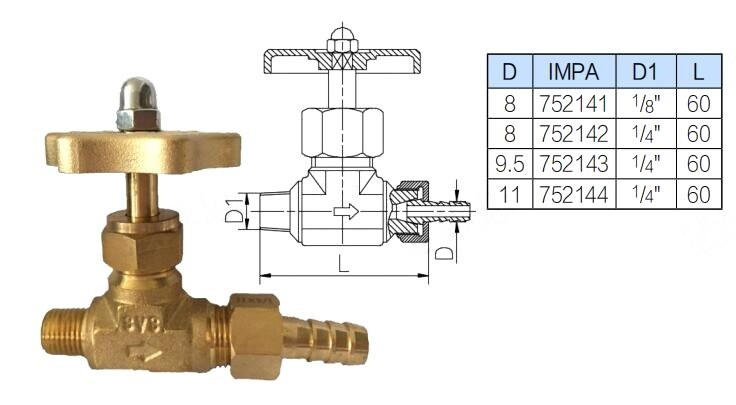

Brass Needle Straight Valve with Corrugated Hose End & Male Thread
- Category:JIS Needle Valve
- Material:Brass
- IMPA Code:752141~752144
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Brass Needle Straight Valve with Corrugated Hose End & Male Thread:
Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass material except for the gland O" rings.
Technical Specification:
1. Applicable temperature will be -20℃ to 100℃
2. Max Pressure: 1.47Mpa (15kgf/cm2)
3. Recommended for use at less than 80% of max load pressure at temperature between 80℃ and 100℃.
Main Size:
| IMPA | Nominal Size | OD of Tube | Thread | Length | Height | |
| Ring Joint Side | Male Thread | |||||
| 752141 | 8 x 1/8 | 8 | PF-1/4 | PT-1/8 | 72 | 37 |
| 752142 | 8 x 1/4 | 8 | PF-1/4 | PT-1/4 | 73 | 37 |
| 752143 | 9.5 x 1/4 | 9.5 | PF-3/8 | PT-1/4 | 87 | 42 |
| 752144 | 11 x 1/4 | 11 | PF-3/8 | PT-1/4 | 89 | 42 |
