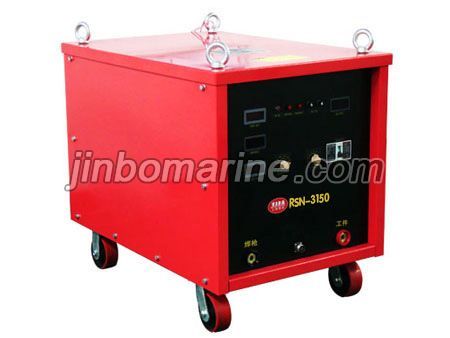

RSN-3150 Classic Silicon Control Shear Connector Welding Machine
- Category:Welding Equipment
- Certificate:CE
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Features:
1.The thyristor control current, smooth, strong, reliable.
2.Easy control and digital display of welding voltage, current and time.
3.Circuit board is under waterproof, anticorrosion, dampproof and dustproof treatment.
4.Special torch with lengthening cables, low heat, durable and workable with high load and fatigue resistance.
5.Compensatory capabilities of power voltage. When the voltage decreases, this machine can automatically stabilize welding parameters, when the voltage is extremely low, the machine still can work normally(only the max welding current is a little lower.)
6.High strength electrostatic coating steel plate, chassis, high corrosion resistance
Technical Parameters:
| Item | RSN-1600 | RSN-2000 | RSN-2500 | RSN-3150 |
| welding range | Φ6mm—Φ20mm | Φ6mm—Φ24mm | Φ6mm—Φ28mm | Φ6mm-Φ36mm |
| welding current | 300A—1600A | 300A—2000A | 500A—2500A | 600A—3150A |
| welding time | 0.1S—3S | 0.1S—3S | 0.1S—3S | 0.1S—3S |
| welding speed | Φ20 10pcs/minute |
Φ24 10pcs/minute |
Φ28 10pcs/minute |
Φ36 8pcs/minute |
| input power | AC 3˜380V±15% | AC 3˜380V±15% | AC 3˜380V±15% | AC 3˜380V±15% |
| rated input power | 65KW | 80KW | 100KW | 120KW |
| power switch | 125A | 160A | 225A | 250A |
| protect grade | Ip23 | Ip23 | Ip23 | Ip23 |
| cooling way | F | F | F | F |
| dimension(L/W/H) | 980x600x600mm | 980x650x650mm | 980x650x650mm | 980x650x650mm |
| weight | 320KG | 380KG |
410KG |
450KG |
Standard accessories and their connecting illustration:
| Standard Accessories of RSN-3150 | |||
| No. | Accessories | Spec. | Qty. |
| (1) | torch with 5m cable | YF-DH-25 | 1pc |
| (2) | torch lengthening cable | 120mm² | 25m |
| (3) | earth cable | 120mm² | 5m |
| (4) | chucks | Φ13,Φ16,Φ19,Φ22,Φ24 | 15 sets total |
| (5) | ferrules and pressing plates | ||
| (6) | earth clamp | N/A |
1pc |
