Bucket Wheel Assembly
- Category:Dredging Cutter Heads
- Standards:standard
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

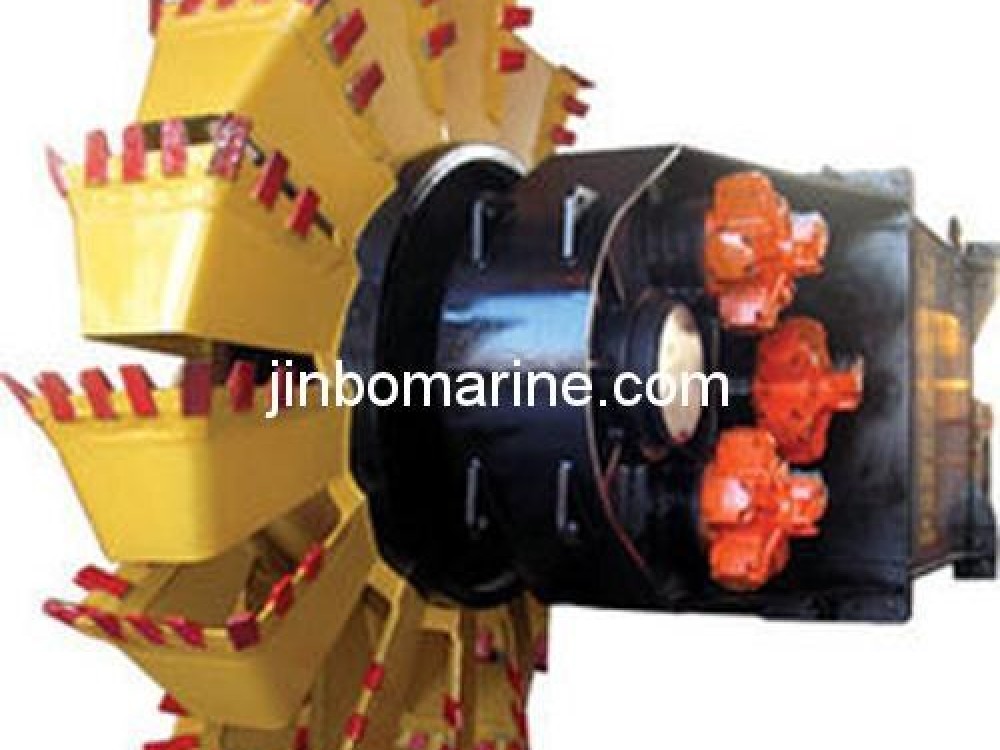

Bucket wheel assembly
General description
The bucket wheel dredging system is suitable for mining most of the soil type, with different cutter tooth it can mining rock sandy soil clay mixed soil. Bucket wheel power range from 15kw to 6000kw. Bucket wheel assembly can be divided into two drive modes as hydraulic drive and motor drive according to knife wheel diameter and power.

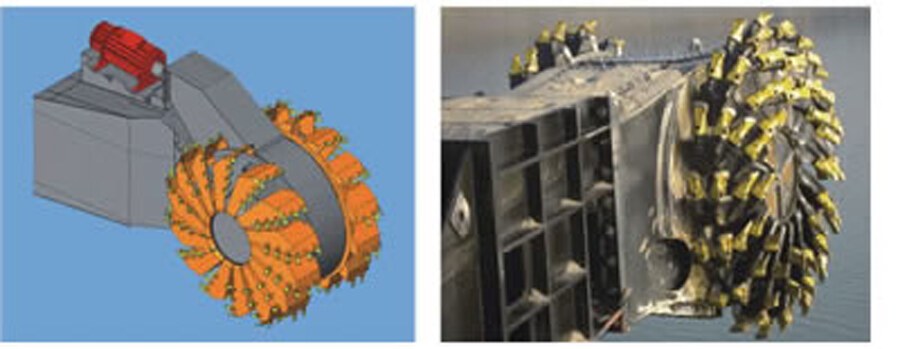

Double row bucket wheel
Double row bucket wheel has compact structure high strength rigid enough and dredging efficiency is relatively high, symmetrically arranged knife wheel of relative knife right and left swinging direction cutting and mining when working, decorated the guide plate right and left inside the mouth sucking, when right and left knife wheel cutting knife wheel of cutting side will be responsible for sucking, maximum guarantee high concentrations of dredging mud.

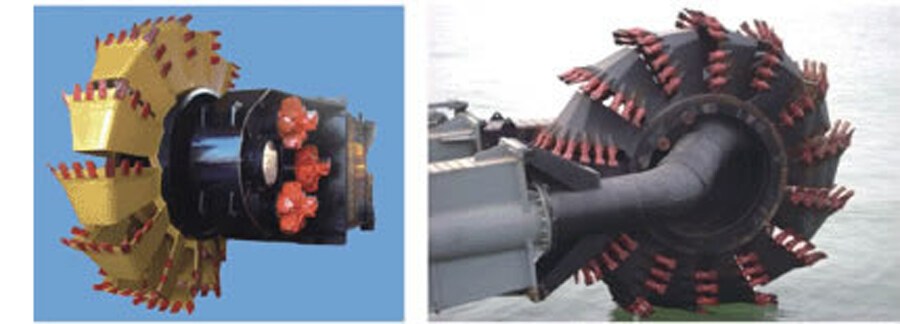

Single-row bucket wheel
Single-row bucket wheel is cheaper and lighter than double row bucket wheel.

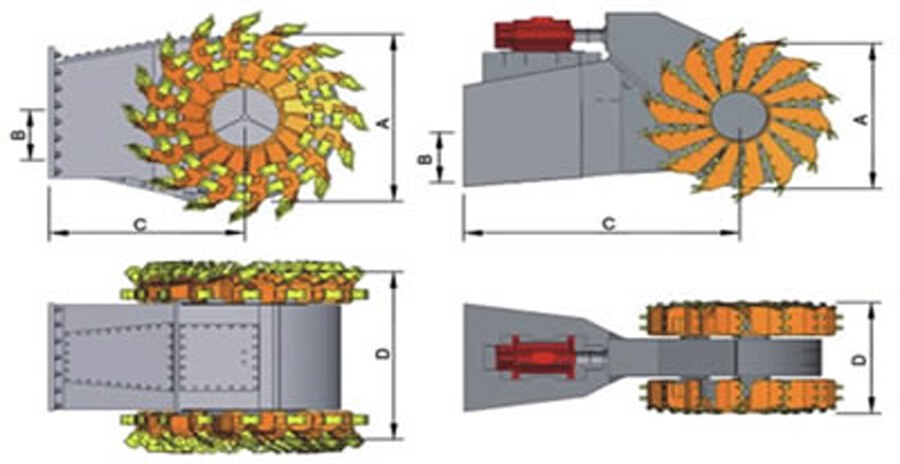

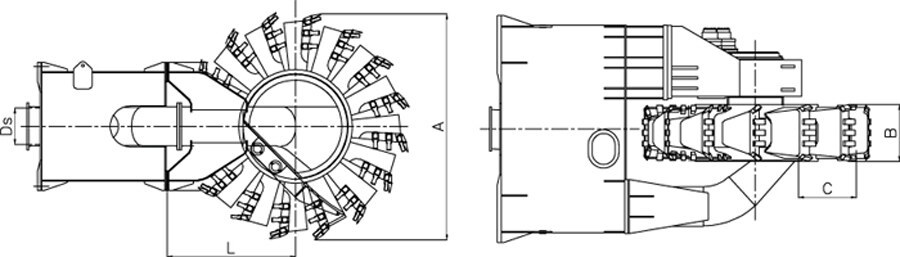

Performance data
Hydraulic drive
|
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Power(kw) |
Speed(rpm) |
Mud absorbing (m3/h) |
Weight(kg) |
|
800 |
150-250 |
850 |
1000 |
30-50 |
30 |
180 |
2800 |
|
1250 |
250-300 |
1000 |
1150 |
65-110 |
26 |
220 |
3500 |
|
1800 |
300-450 |
1600 |
1600 |
120-150 |
22 |
440 |
7000 |
|
2500 |
400-650 |
2050 |
2300 |
230-350 |
20 |
1000 |
20000 |
|
3350 |
600-850 |
2800 |
3000 |
400-500 |
16 |
2100 |
40000 |
Motor drive
|
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Power(kw) |
Speed(rpm) |
Mud absorbing (m3/h) |
Weight(kg) |
|
4000 |
600-850 |
4900 |
2800 |
500-750 |
135 |
2400 |
80000 |
|
4500 |
800-1000 |
5800 |
3200 |
750-1000 |
130 |
3000 |
100000 |
|
5200 |
850-1000 |
6000 |
4000 |
1000-1500 |
100 |
3900 |
188000 |
|
6000 |
900-1200 |
6500 |
4500 |
1500-2000 |
70 |
5200 |
200000 |
