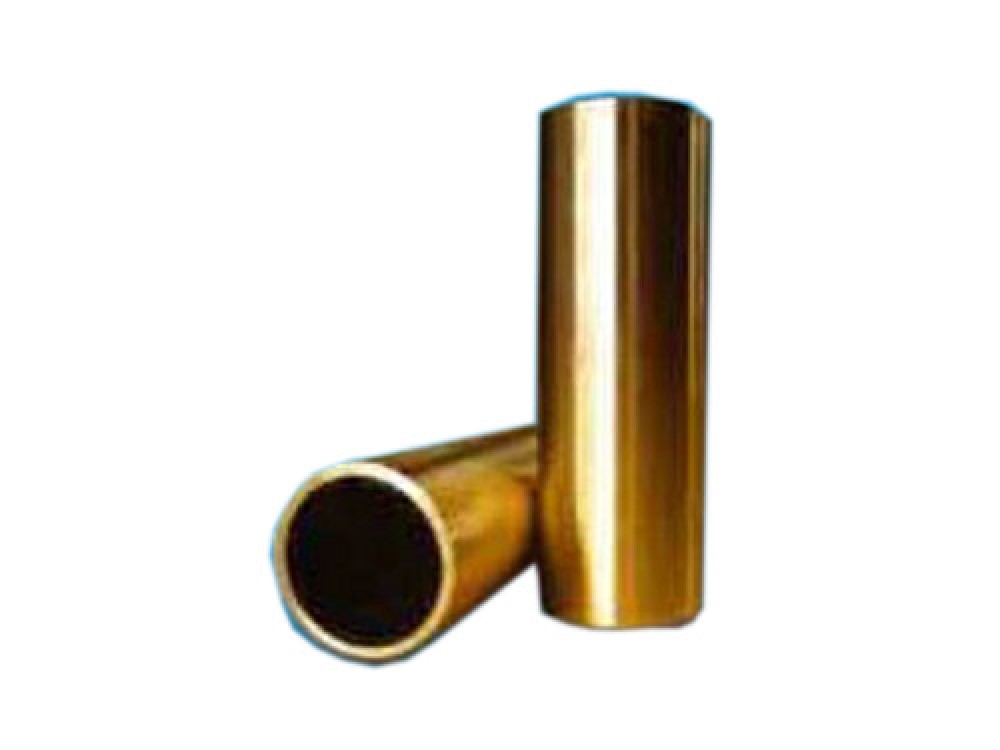

CB*769-86 marine integral type rubber bearing
- Category:Stern Tube Bearing
- Material:Copper & Rubber
- Standards:CB769-2008
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

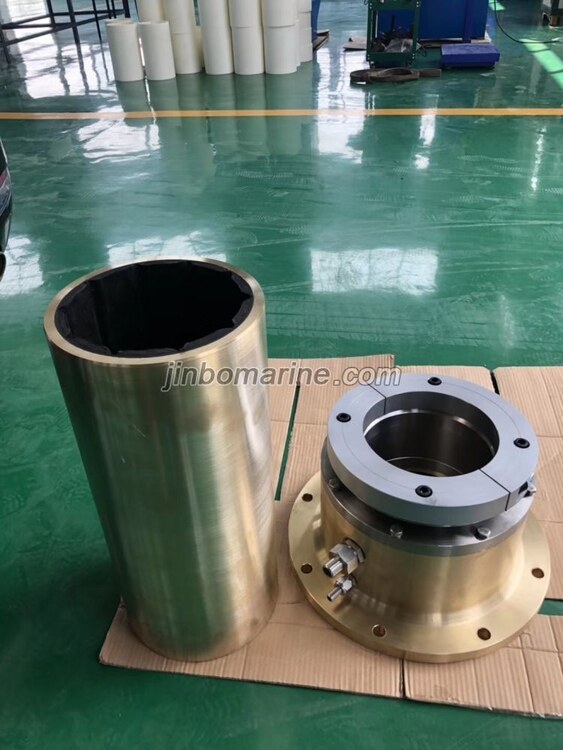

China CB*769-86 marine integral type rubber bearing:
The rubber bearing is suggested to be used when the lubricating medium of stern tube is water (the lubrication water temperature is not over 55 degree centrigrade.)
One side or two sides can be flange as per the customer's requirement.
Material:
Copper Bush--H68, H62 or other copper material agreed by the customer.
Rubber Bush--NBR

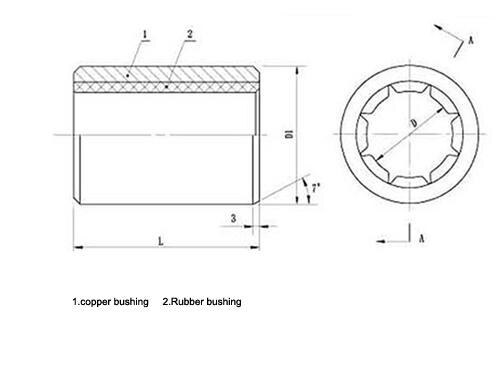

Main Size:
| Bearing diameter(D) | Outer diameter of copper bush(D1) | Length(L) | |
| Nominal sizes | Nominal sizes | Normal type | Extended type |
| 40 | 64 | 120 | 140 |
| 45 | 68 | 135 | 155 |
| 50 | 74 | 150 | 170 |
| 55 | 78 | 150 | 170 |
| 60 | 84 | 165 | 210 |
| 65 | 88 | 180 | 230 |
| 70 | 96 | 190 | 250 |
| 75 | 102 | 210 | 270 |
| 80 | 108 | 220 | 290 |
| 85 | 114 | 240 | 300 |
| 90 | 120 | 250 | 320 |
| 95 | 125 | 260 | 340 |
| 100 | 130 | 280 | 350 |
| 105 | 137 | 290 | 370 |
| 110 | 144 | 300 | 385 |
| 120 | 156 | 330 | 420 |
| 125 | 163 | 340 | 440 |
| 130 | 170 | 360 | 450 |
| 140 | 182 | 380 | 480 |
| 150 | 194 | 410 | 520 |
| 160 | 205 | 440 | 550 |
| 170 | 218 | 460 | 580 |
| 180 | 228 | 500 | 620 |
| 190 | 238 | 520 | 650 |
| 200 | 250 | 550 | 680 |
