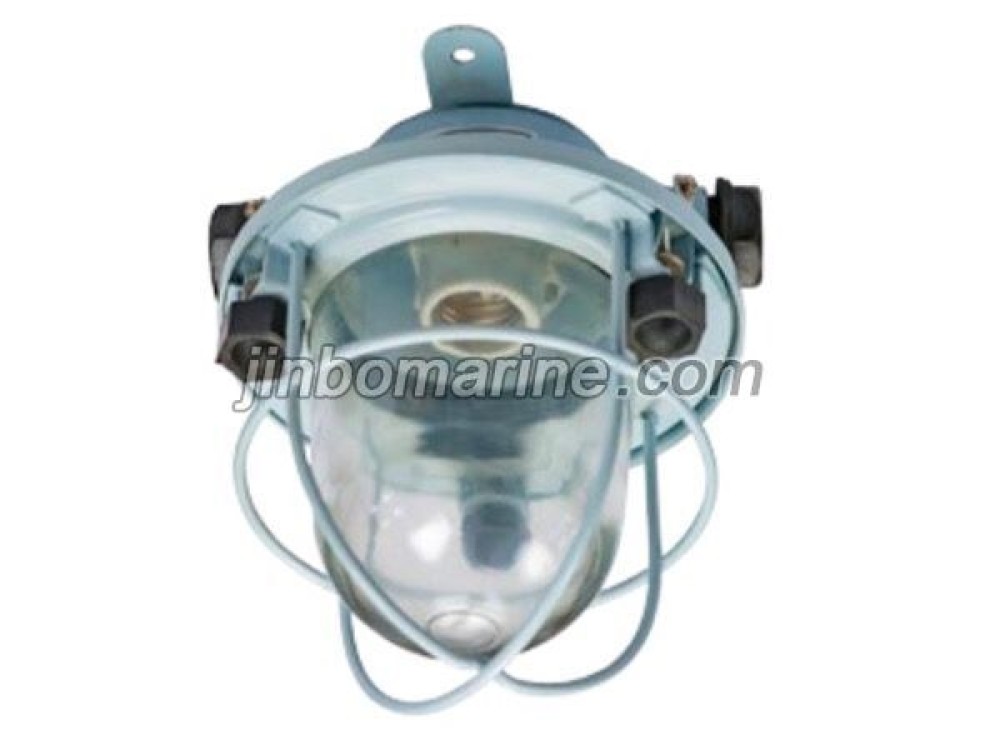

CCD1-2QL LED Pendant Light
- Category:Marine LED Light
- Packing Details:Wooden Plate
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Application
Applied to illumination of water dripping, water spattering, water coagulating place in military ship and ship, such as dry cabin, deck, outer and weather deck etc.
Product Feature
1. Shell uses good quality steel plate.
2. Lampshade uses injection of AS with metal guard.
3. LED Light Source, light soft, no glare, supper high uniformity and visual comfort, color>=80%, light rate>70%, life time 30000h,energy saving 50%, new green environmental product, easy installation, general G12 lamp holder.
4. Environment temperature I s -20-40degree within the scope of work.
5. Protection class is IP56.
6. Outdoor light should e use stainless steel body.
Standard
1. Chapter 3, Part 4 of Classification Society Rules for Classification of Sea-going Steel Ships 2015 and its Amendments;
2.GB7000.1-2015,Luminaires –Part1:General requirements and tests.
Specification
Type | LED Type | Voltage | Power | LED Power | Lamp Holder | Material | Color | Weight |
CCD1-2 | CCD1-2QL | 24-240V | 60W | <=10W | E27 | Steel | Clear,Green,Red | 1.6kg |
CCD2-1 | CCD2-1QL | 24-240V | 40W | <=10W | E27 | Aluminum | Clear | 2.5kg |
CCD4-1 | CCD4-1QL | 24-240V | 60W | <=10W | E27 | Aluminum | Clear | 2.3kg |
CCD5-2 | CCD5-2QL | 24-240V | 25W | <=5W | B15d | Brass, Plastic | Clear | 0.5kg |
CCD9-5 | CCD9-5QL | 24-240V | 60W | <=10W | E27 | Brass | Clear,Green,Red,Yellow, Blue | 2.5kg |
CCD9-5A | CCD9-5AQL | 24-240V | 25W | <=5W | B15d | Brass | 2.4kg | |
CCD9-6 | CCD9-6QL | 24-240V | 60W | <=10W | E27 | Brass | 4.2kg | |
CCD9-6A | CCD9-6AQL | 24-240V | 25W | <=5W | B15d | Brass | 4.1kg | |
CCD9-8 | CCD9-8QL | 24-240V | 60W | <=10W | E27 | Brass | 1.2kg | |
CCD15-2 | CCD15-2QL | 24-240V | 60W | <=10W | E27 | Brass | 2.3kg | |
CCD15-2A | CCD15-2AQL | 24-240V | 25W | <=5W | B15d | Brass | 2.2kg | |
WB-1 | WB-1QL | 24-240V | 15W | <=5W | B15d | Synthetic | Clear | 0.71kg |
WB-2B | WB-2BQL | 24-240V | 60W | <=10W | E27 | Synthetic | Clear | 0.85kg |
DS7-1M | DS7-1MQL | 24-240V | 15W | <=5W | B15d | Synthetic | Clear | 0.74kg |
DS7-2M | DS7-2MQL | 24-240V | 60W | <=10W | E27 | Synthetic | Clear | 0.95kg |

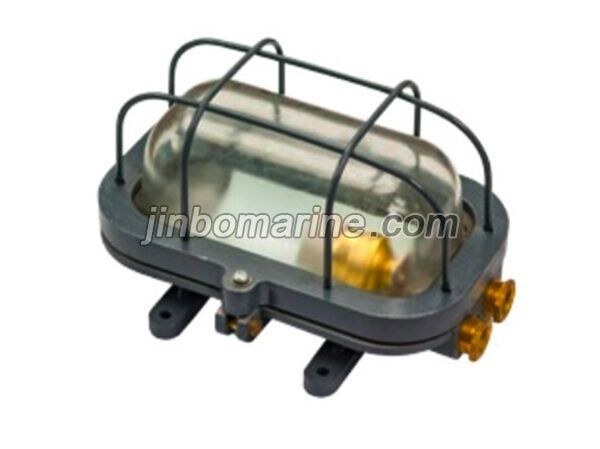

CCD2-1QL LED Pendant Light
