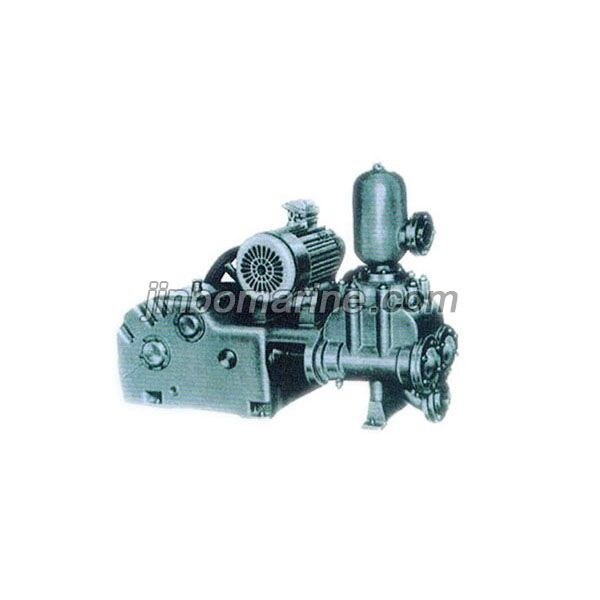

CDS Series Marine Electrical Reciprocating Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CDS Series Marine Electrical Reciprocating Pump:

CDSL marine electrical vertical reciprocating pump,CDSW marine electrical horizontal reciprocating pump,it is suitable to transport the sea water,the fresh water,the petroleum and the petroleum product in the ships,or transports other liquids which its physics,the chemical property are similar.
Or the temperature of the transported medium to be divided into the three ranks of high,middle and low.

Main Technical Data
Model Flow rate
Q (m³/h)
Pressure
(Mpa)
Drameter of the outlet (mm) Motor
power (KW)
2CDS(Y)L-15/0.3 15 0.3 65 3
2CDS(Y)L-15/0.4 15 0.4 65 4
2CDS(Y)L-15/0.5 15 0.5 65 5.5
2CDS(Y)L-15/0.6 15 0.6 65 5.5
2CDS(Y)L-15/0.7 15 0.7 65 5.5
2CDS(Y)L-15/0.8 15 0.8 65 7.5
2CDS(Y)L-15/1.0 15 1 65 11
2CDS(Y)L-25/0.3 25 0.3 65 5.5
2CDS(Y)L-25/0.4 25 0.4 65 5.5
2CDS(Y)L-25/0.5 25 0.5 65 7.5
2CDS(Y)L-25/0.6 25 0.6 65 7.5
2CDS(Y)L-25/0.7 25 0.7 65 11
2CDS(Y)L-25/0.8 25 0.8 65 11
2CDS(Y)L-25/1.0 25 1 65 15
2CDS(Y)L-35/0.3 35 0.3 80 5.5
2CDS(Y)L-35/0.4 35 0.4-1.4 80 7.5
2CDS(Y)L-35/0.5 35 0.5 80 11
2CDS(Y)L-35/0.6 35 0.6 80 11
Alao have bigger pumps, pls contact us for more information.
