CF-3G Repeater Compass

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

CF-IIIG repeater compass is Navigational aid repeat the standard magnetic compass course, supporting the use of magnetic compass. It can send the course of ship to everywhere on the ship which area not suitable for install magnetic compass. It can connnect to these navigation instrument which need the ship magnetic course information,such as steering instrument, satellite navigator and radar etc. Repeater compass have the magnectic course repeat and send information function.

Main Feature:

The electrical part of CF-IIIG repeater compass is consist of integrated circuit and contactless switch circuit,work is reliable,long service life. The technical property is conform to Q/UCAH31-1998enterprise standard.

Main Parameter:

1.Master repeat scale: 0-360° Min seale mark 1°

2.Master repeat scale dial diameter: 165mm

3.Master repeat accuracy: equal or less than 1°

4.Tracking velocity: >8° / S

5.Division repeater repeat accuracy: equal or less than 0.5° (relative to master repeater)

6.Course information sending message form: DC35V three_phase stepping motor,

Three phase six steps 1°.

7.Power: master repeater power supplied directly by DC24V,2.5A

AC220V 1Phase 50HZ(must power supplied through power box)

8.Installation type: instrument type(Embedded)

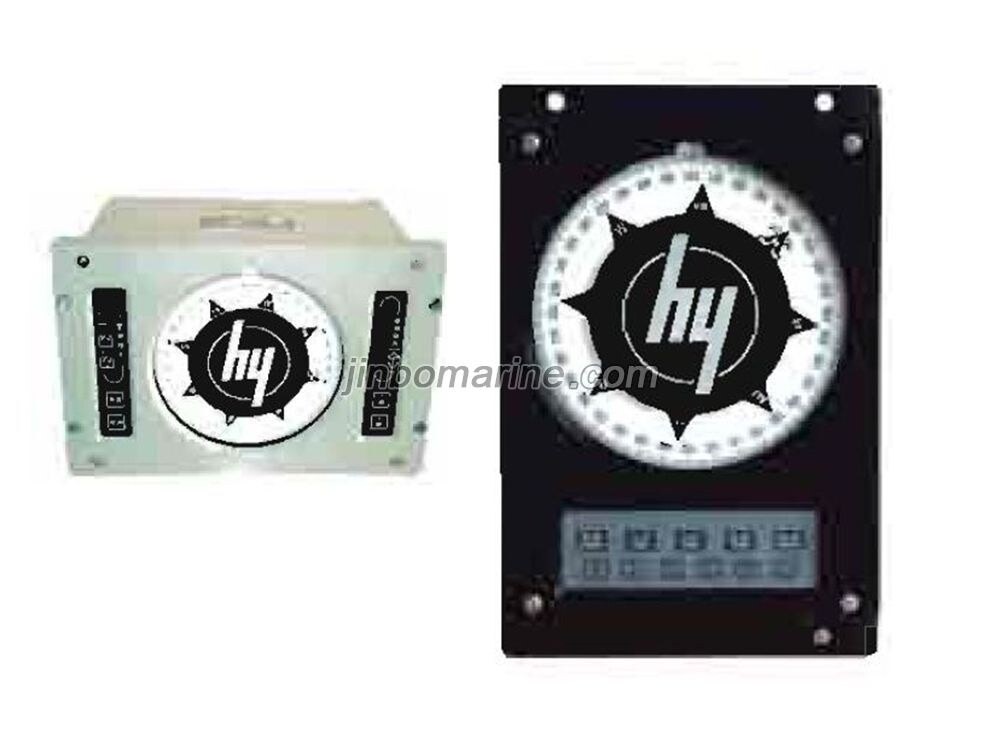

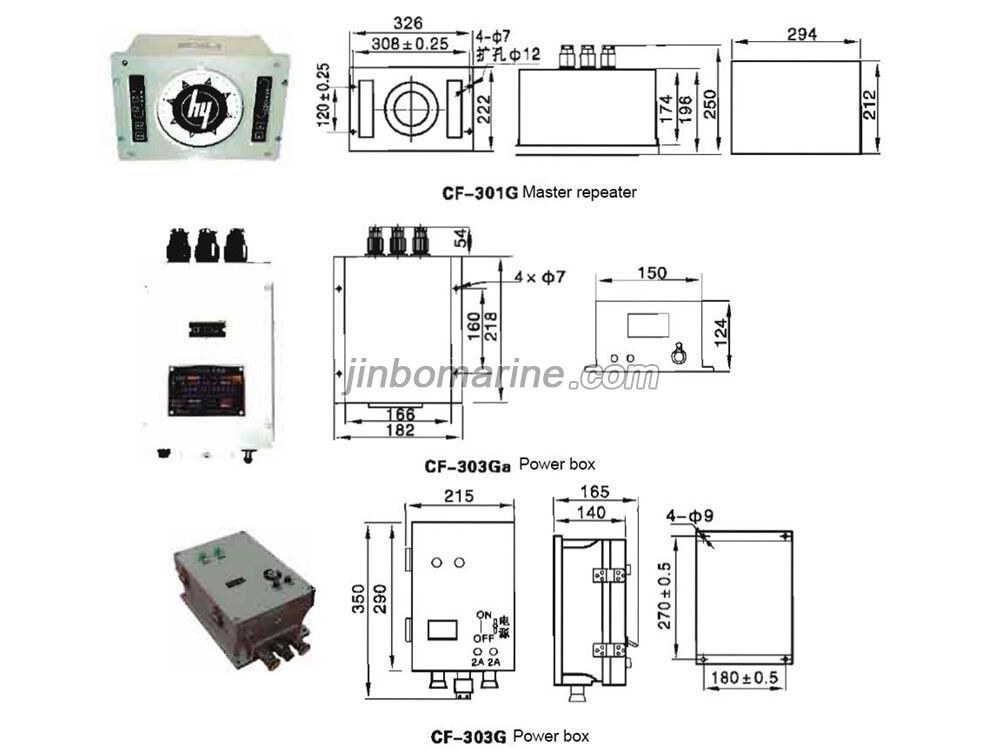

CF-III G (horizontal type) repeat compass

Item No

Instrument Name

Instrument No.

Quantity

Weight

Remark

1

Master repeater

CF301G

1

9kg

2

Magnetic heading sensor

CF302G

1

150g

Install on the compass bowl

3

Power Box

CF303G

Optional

6kg

AC220V-1Phase
50HZ and DC24V,two-way supply power to power box.

CF303Ga

4kg

4

Magnetic compass

a

Vertical compass

CPL-190

Draw at Random 1 piece

b

Vertical compass

CPL-165

c

Projection compass

CGY-165

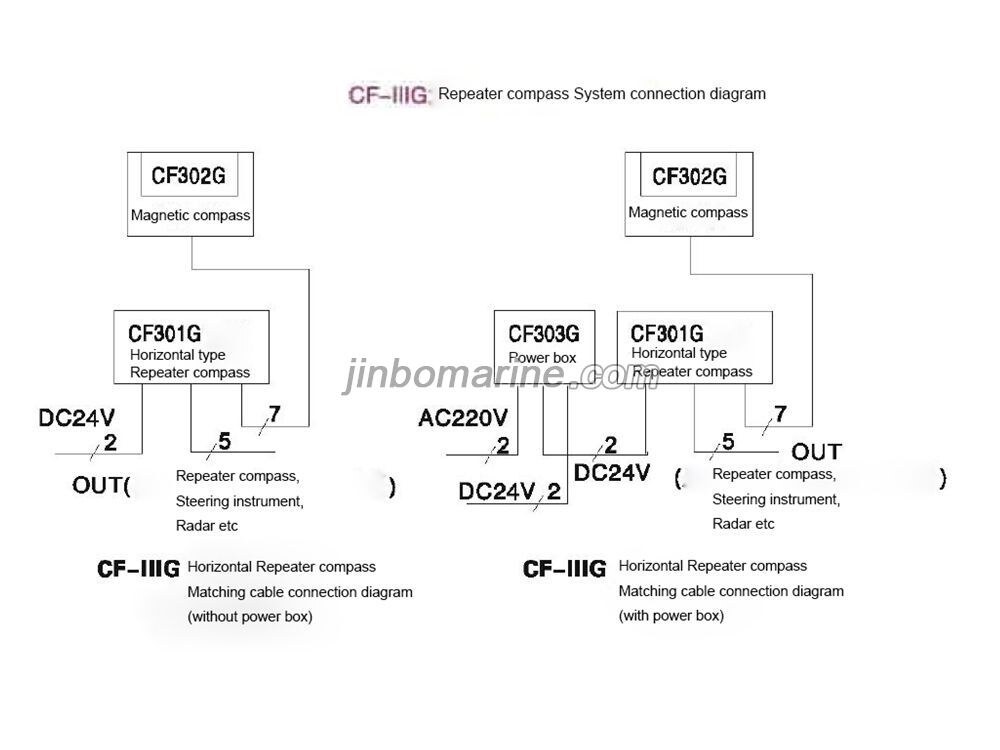

CF-IIIG Repeater compass system connection diagram

Main component photo
