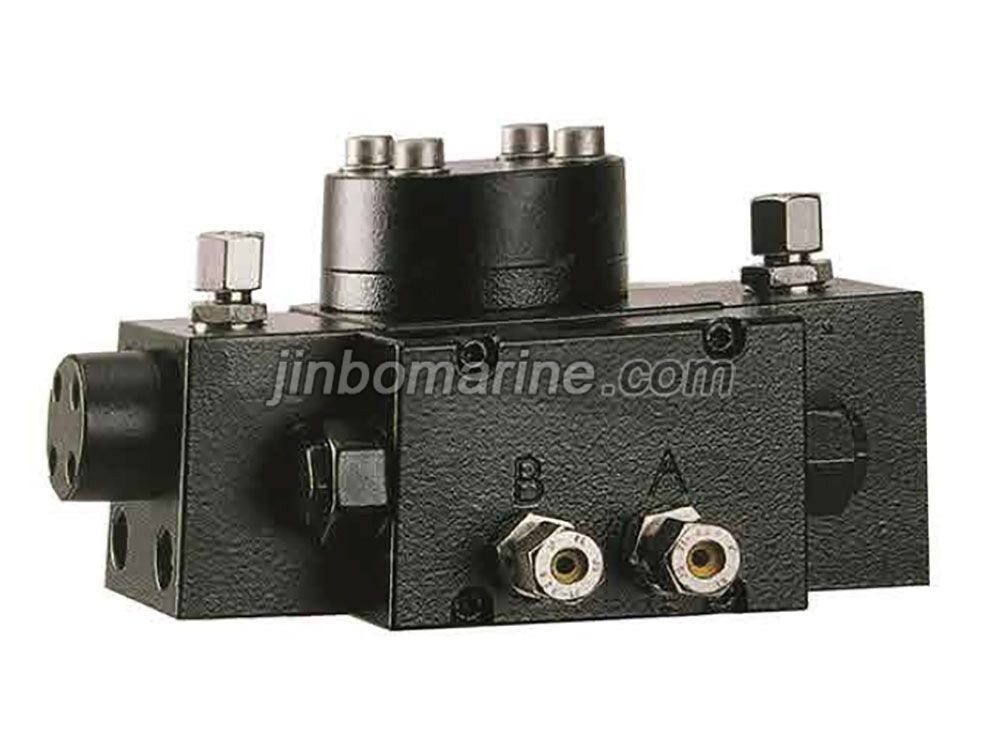

CG-HA Hydraulic Actuator
- Category:Actuator Series
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CG-HA Hydraulic Actuator:
Hydraulic actuator with high accuracy, fast response, and can achieve high precision control, the transmission is stable and reliable, and the travel regulation is acurate, low speed large torque transmission without speed reduction device,actuator for controlling the 0 degree to 90 degreee rotary valves and other products, such as butterfly valve,ball valves,air door, flapper valve, plug valve, such as louver valves, can be widely used in petroleum, chemical, water,marine,pulp and paper,power, heating,light industry and other industries.
Technical Specification:
Model:CG-HQ
Working pressure:11Mpa
Rotation angle: 90±5 degree
Ambient temperature:-20 ℃ to 80 ℃

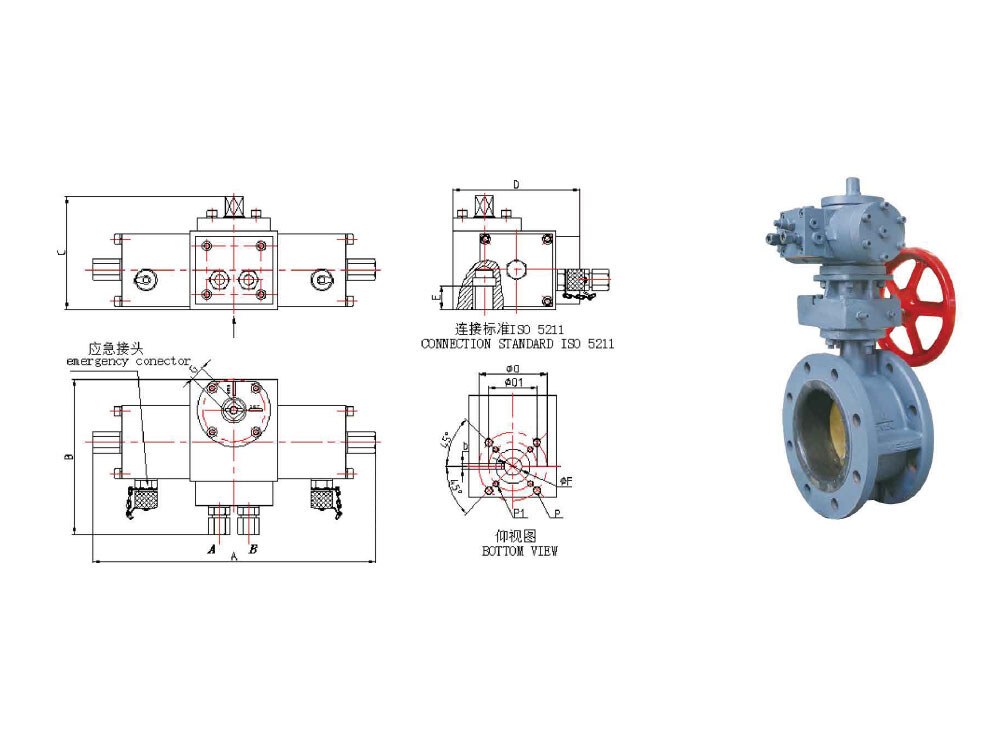

Outside Dimension Of CG-HA Hydraulic Actuator:
| Model | CG-HA40 | CG-HA50 | CG-HA60 | CG-HA70 | CG-HA80 | CG-HA100 |
| ISO Flange | F05-F07 | F07-F10 | F10-F12 | F12 | F12-F14 | F14-F16 |
| A | 291 | 320 | 385 | 492 | 577 | 724 |
| B | 160 | 185 | 212 | 270 | 284 | 324 |
| C | 116 | 140 | 155 | 165 | 180 | 220 |
| D | 130 | 155 | 182 | 240 | 254 | 294 |
| E | 40 | 45 | 50 | 55 | 65 | 70 |
| G | 17 | 17/19 | 22 | 27 | 36 | 46 |
| Φ F | 18 | 18/22 | 22/28 | 28/36 | 36/42 | 50 |
| Φ 0 | 50 | 70 | 102 | / | 125 | 140 |
| Φ 01 | 70 | 102 | 125 | 125 | 140 | 165 |
| P | 4-M6 | 4-M8 | 4-M10 | / | 4-M12 | 4-M16 |
| P1 | 4-M8 | 4-M10 | 4-M12 | 4-M12 | 4-M16 | 4-M20 |
| b | 5/6 | 6/8 | 8/10 | 10 | 10/12 | 16 |
| Max Torque | 240 | 400 | 690 | 1130 | 2050 | 3650 |
