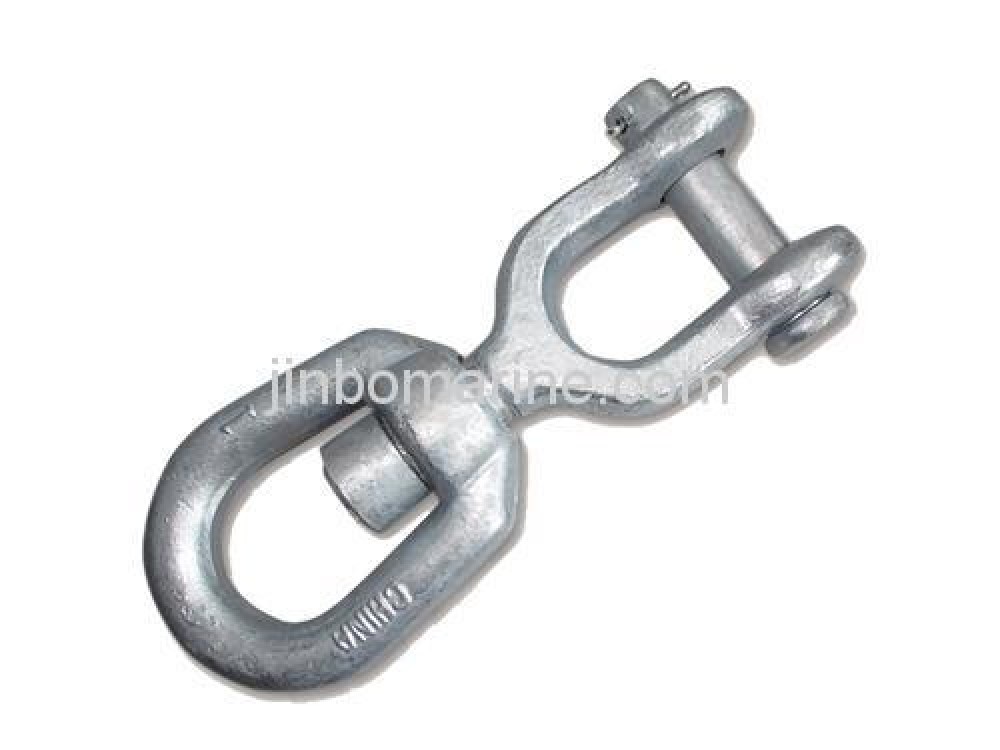

Chain Swivels G403
- Category:Chain Swivel
- Material:45# Steel
- Packing Details:Wooden Box
- Delivery Time:20 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Main Specification
Material: 45# Steel
Finish:Spaying Painting , Spraying Plastics, Galvanized

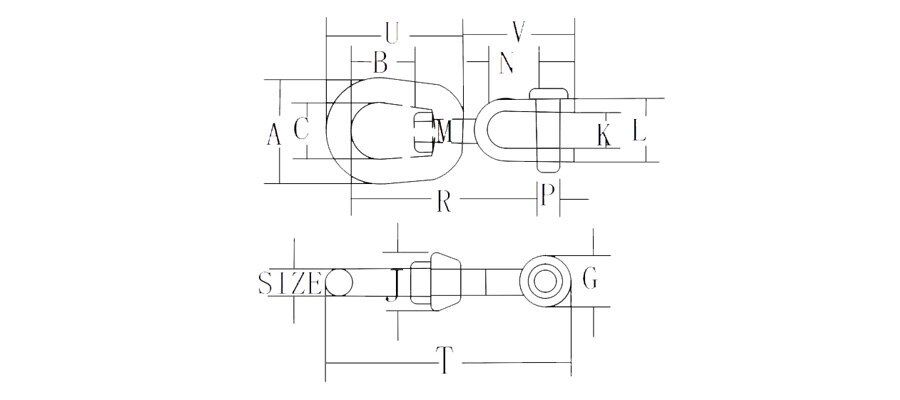

Size Table
| Size (in) | Working Load Limit (1bs) | Weight Each (1bs) | Dimensions | |||||||||||||
| A | B | C | G | J | K | L | M | N | P | R | T | U | V | |||
| 1/4 | 850 | 0.25 | 1.25 | 0.69 | 0.75 | 0.69 | 0.69 | 0.47 | 1.03 | 0.31 | 0.88 | 0.25 | 2.63 | 3.38 | 1.69 | 1.69 |
| 5/16 | 1250 | 0.37 | 1.63 | 0.81 | 1 | 0.81 | 0.81 | 0.5 | 1.13 | 0.38 | 0.88 | 0.31 | 2.94 | 3.88 | 2.06 | 1.81 |
| 3/8 | 2250 | 0.7 | 2 | 0.94 | 1.25 | 1 | 1 | 0.63 | 1.41 | 0.5 | 1.06 | 0.38 | 3.63 | 4.75 | 2.5 | 2.25 |
| 1/2 | 3600 | 1.43 | 2.5 | 1.31 | 1.5 | 1.31 | 1.31 | 0.75 | 1.75 | 0.63 | 1.31 | 0.5 | 4.5 | 6.06 | 3.19 | 2.88 |
| 5/8 | 5200 | 2.48 | 3 | 1.56 | 1.75 | 1.63 | 1.5 | 0.94 | 2.06 | 0.75 | 1.5 | 0.63 | 5.31 | 7.31 | 3.88 | 3.44 |
| 3/4 | 7200 | 3.88 | 3.5 | 1.75 | 2 | 1.88 | 1.88 | 1.13 | 2.53 | 0.88 | 1.75 | 0.75 | 6.06 | 8.31 | 4.31 | 4 |
| 7/8 | 10000 | 5.75 | 4 | 2.06 | 2.25 | 2.13 | 2.13 | 1.19 | 2.75 | 1 | 2.06 | 0.88 | 7 | 9.53 | 5 | 4.53 |
