CHLS Marine Water Chilling Unit

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

CHLS marine water chilling unit mainly consists of refrigeration compressor, marine high-efficient condenser, liquid supply solenoid valve, thermostatic expansion valve, dry-type evaporator, electrical control cabinet, instrument and valves, etc.

All components of this unit are already assembled by the manufacturer, also pressure test and vacuum test for cooling system are already done, sufficient amount of R404A gas is filled in.

Technical Data:

Item CHLS-12 CHLS-23 CHLS-35 CHLS-46 CHLS-58 CHLS-70 CHLS-82
Cooling capacity KW 11.6 23 35 46 58 70 82
Cooling medium R22(R134a, R404A, R407C)
Power supply main circuit AC380V 3P 50HZ/AC 440V 3P 60HZ
control circuit AC220V 1P 50HZ/AC 220V 1P 61HZ
Protection device High pressure, low pressure,oil pressure, water stop, lack phase, overload and safety valve
Copressor Type Hermetic or semi-hermetic compressor
Energy regulation % / 0,50,100 or(0,66,100)
motor power KW 42 66 90 15 19 22 24
Condensor type Horizontal sheel&tube
water inlet temp ℃ ≦36
water flow m3/h 3 7 10 13.5 17 20 23
water pressure loss kPa ≦50 ≦70
Drier evaporator type Horizontal sheel&tube
water inlet temp ℃ 12/7
water flow m3/h 3 7 6 8 10 12 14
water pressure loss kPa ≦60
weight kg 650 850 900 1100 1300 1450 1650
Item CHLS-93 CHLS-105 CHLS-116 CHLS-140 CHLS-151 CHLS-175 CHLS-210
Cooling capacity KW 93 105 116 140 151 175 210
Cooling medium R22(R134a, R404A, R407C)
Power supply main circuit AC380V 3P 50HZ/AC 440V 3P 60HZ
control circuit AC220V 1P 50HZ/AC 220V 1P 61HZ
Protection device High pressure, low pressure,oil pressure, water stop, lack phase, overload and safety valve
Copressor Type semi-hermetic compressor
Energy regulation % 0,50,100 or(0,66,100) 0,50,100 or(0,66,100)
motor power KW 26 30 37 2x22 2x24 2x26 2x30
Condensor type Horizontal sheel&tube
water inlet temp ℃ ≦36
water flow m3/h 26 30 35 40 42 50 60
water pressure loss kPa ≦50 ≦70
Drier evaporator type Horizontal sheel&tube
water inlet temp ℃ 12/7
water flow m3/h 16 18 20 24 26 30 36
water pressure loss kPa ≦60
weight kg 1850 2000 2250 2450 2600 3100 3300

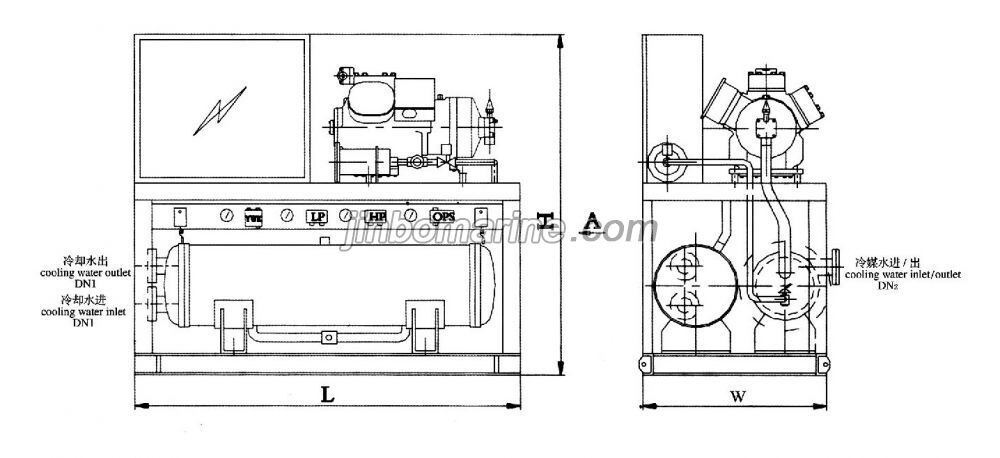

Dimension:

Model CHLS-12 CHLS-23 CHLS-35 CHLS-46 CHLS-58 CHLS-70 CHLS-82
L 1250 1450 1420 1680 1850 1800 1850
W 550 600 680 850 880 950 950
H 1200 1200 1480 1500 1500 1520 1620
DN1 DN25 DN32 DN40 DN40 DN50 DN65 DN65
DN2 DN25 DN32 DN40 DN40 DN50 DN65 DN65
Model CHLS-93 CHLS-105 CHLS-116 CHLS-140 CHLS-151 CHLS-175 CHLS-210
L 2000 2050 2100 2100 2600 2650 2850
W 1150 1150 1180 1100 1450 1450 1450
H 1600 1620 1620 1750 1800 1850 1850
DN1 DN65 DN65 DN65 2-DN50 2-DN65 2-DN65 2-DN65
DN2 DN80 DN80 DN80 DN80 DN80 DN100 DN100
