CJKR-105 Marine Packaged Air Conditioning Unit

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

CJKR105 Marine packaged air conditioning unit has two types, which are cooling and heating type. The cooling type air conditioner is mainly composed of air filter, air cooler, marine centrifugal fan, refrigerating compressor, marine high-efficiency condenser, liquid supply solenoid valve, thermostatic expansion valve, electrical control cabinet and instrument cabinet etc. Diffusion box and mixing box are used as the associated equipment of the unit, the opening position and dimension of their nozzles will be arranged as per the requirements of the user.

Technical Data:

Type CJKR-58 CJKR-70 CJKR-82 CJKR-93 CJKR-105 CJKR-116 CJKR-151 CJKR-175 CJKR-186 CJKR-210
Cooling capacity 58 70 82 93 105 116 151 175 186 210
Adjustable rang 0-50%-100% 0-66%-100% 0-50%-75%-100%
Compressor motor power 15 17.5 19 23 27 30 37.5 45 56.25 60
Refrigerating medium R22(R314a,R404A,R407c)
Heating capacity 70 82 93 107 116 134 167 187 215 232
Heating medium 0.3-0.4MPa Steam
Steam consumption 139 162 184 210 228 263 328 366 423 480
Air flow 5000 6200 7200 8200 9000 10500 13100 15100 16000 18000
Fan motor power 5.5 7.5 11 11 15 15 15 22.5 30 37
External static pressure 1050 1200 1500 1570 1500 1500 1600 1800 1800 1800
Cooling water Medium ≤32℃ sea water ≤36℃ fresh water
Cooling water flow 15 20 23.5 25 29 33 42 48 54 60
Cooling water press.drop ≤50 ≤50 ≤50 ≤70 ≤70 ≤70 ≤70 ≤70 ≤70 ≤70
Protection HV. LV. Water pressure, over load,
electric heating over-temp. safety valve, power supply faults
Power supply AC380V 3Ph 50Hz/AC440V 3Ph 60Hz
Weight 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200

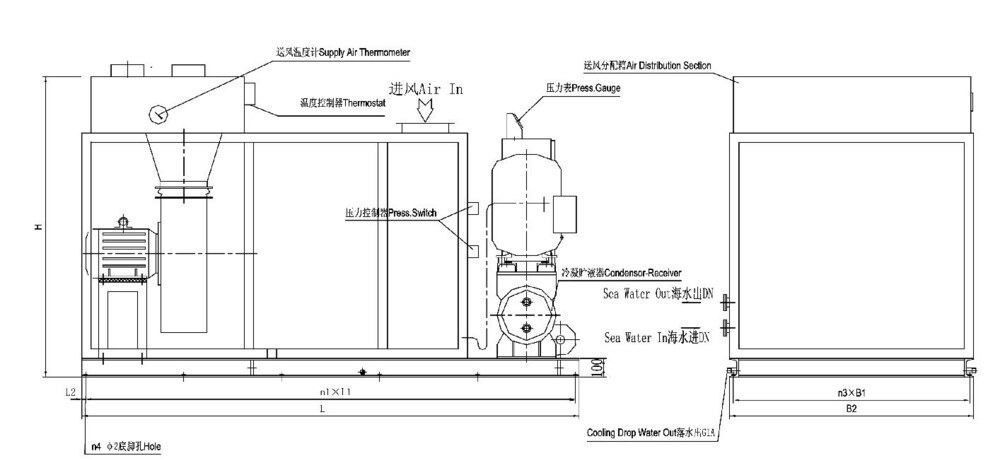

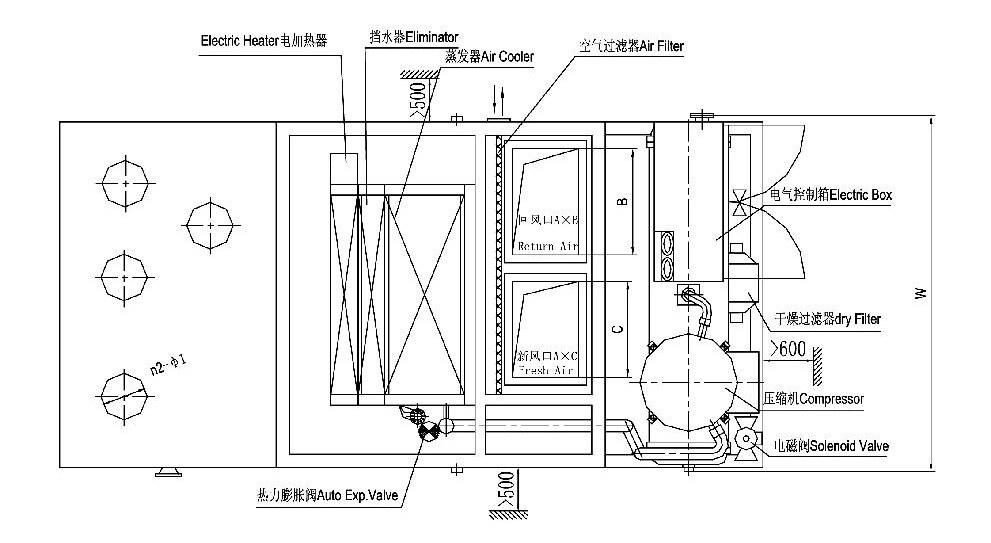

Dimension:

Type L W H n1xL1 L2 n3xB1 B2 n2-Φ1 n4-Φ2 AxB AxC DN
CJKR-58 2500 1550 1400 5x492 20 3x420 1300 5-Φ150 16-Φ13 250x300 250x300 50
CJKR-70 2900 1500 1600 5x570 25 2x655 1350 6-Φ150 14-Φ17 300x400 300x400 50
CJKR-82 3100 1700 1750 6x510 20 3x487 1500 7-Φ150 18-Φ14 400x525 400x525 65
CJKR-93 3100 1700 1750 6x510 20 3x480 1500 8-Φ150 18-Φ14 400x525 400x525 65
CJKR-105 3300 1750 1750 6x540 30 3x520 1600 9-Φ150 18-Φ17 400x575 400x575 65
CJKR-116 3300 1750 1750 6x540 30 3x520 1600 10-Φ150 18-Φ17 400x575 400x575 65
CJKR-151 3400 1800 1750 6x550 50 3x550 1700 13-Φ150 18-Φ20 400x600 400x600 80
CJKR-175 3500 2200 1850 6x570 40 3x583 1800 15-Φ150 18-Φ20 450x650 450x650 80
CJKR-186 3800 2200 1900 7x530 45 3x620 1900 16-Φ150 20-Φ17 450x700 450x700 100
CJKR-210 3900 2200 1950 7x540 60 3x650 2000 18-Φ150 20-Φ17 450x800 450x800 100
