CPW Series Marine Sludge Discharge Pump
- Category:Sewage Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

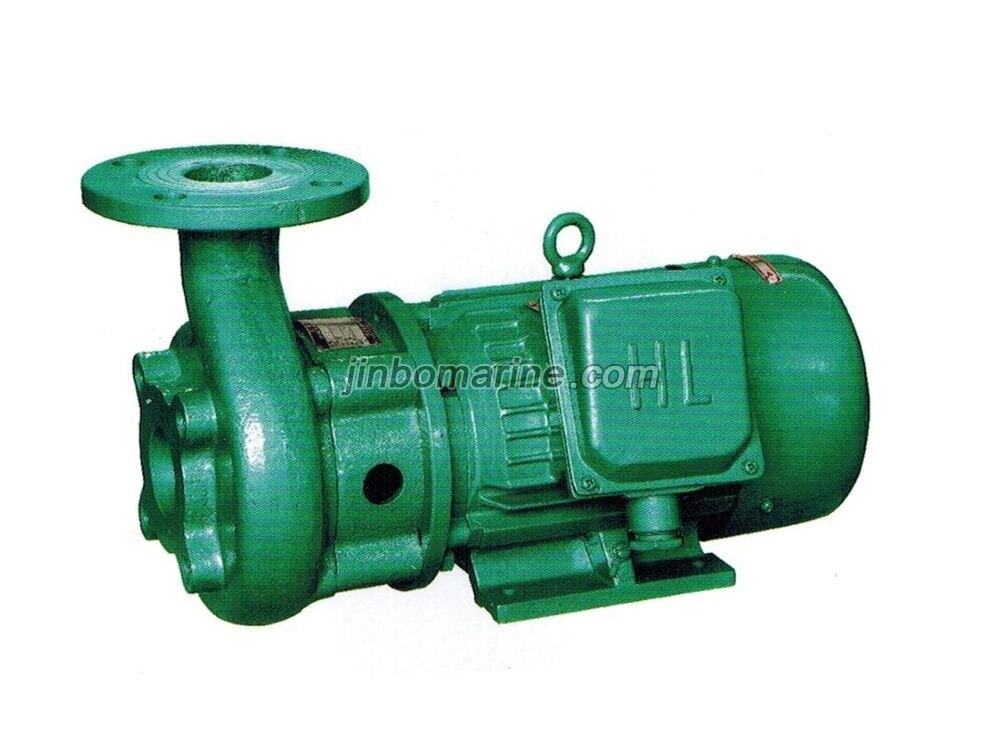

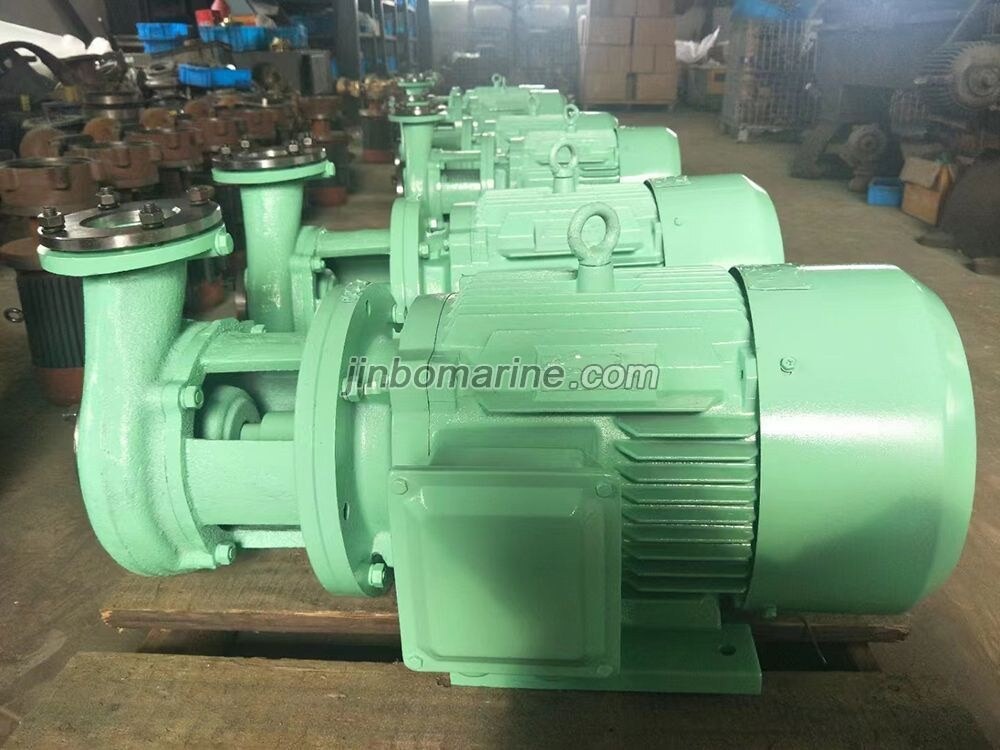

CPW Series Marine Sludge Discharge Pump
General description:
CPW Series Marine Sludge Discharge Pump is a motor-driven horizontal single-channel impeller centrifugal drainage pump,The pumps of this series are suitable for transferring sewage, industrial waste water, oily water, fresh water or sea water at a temperature below 85 degree, containing solids with a diameter up to one third of that of the pump port, and fibers with a length up to five times of that of the ports. They are best choice for use in conjunction with waster water treatment plants.
Sample Meaning:
- 50CPW-10-15
- 50-Inlet and outlet diameter 50mm
- C-Marine use
- PW-sump pump
- 10-Capacity 10m3/h
- 15-Head 15m
Main parameter:
| Model |
Flowrale m3/h |
Pressure MPa |
Pump Power kw |
Intel Pipe Diameter mm |
Outl Pipe Diameter mm |
| 25ZB-2-20 | 2 | 0.2 | 0.75 | 25 | 25 |
| 25ZB-3-20 | 3 | 0.2 | 1.1 | 25 | 25 |
| 32CPW-0.5-15 | 1 | 0.15 | 0.37 | 32 | 32 |
| 32CPW-5-15 | 5 | 0.15 | 1.1 | 32 | 32 |
| 50CPW-10-15 | 10 | 0.15 | 1.5 | 50 | 50 |
| 50CPW-10-20 | 10 | 0.2 | 2.2 | 50 | 50 |
| 50CPW-10-25 | 10 | 0.25 | 2.2 | 50 | 50 |
| 50CPW-10-30 | 10 | 0.3 | 3 | 50 | 50 |
| 50CPW-15-20 | 15 | 0.2 | 2.2 | 50 | 50 |
