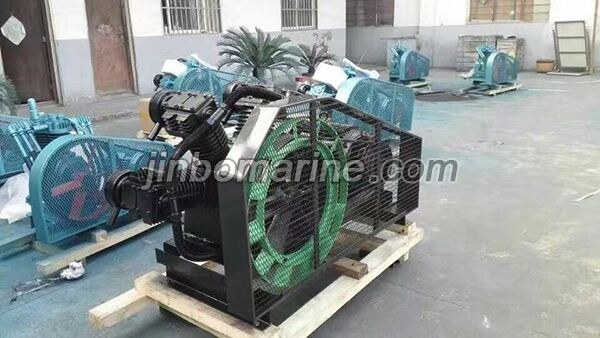

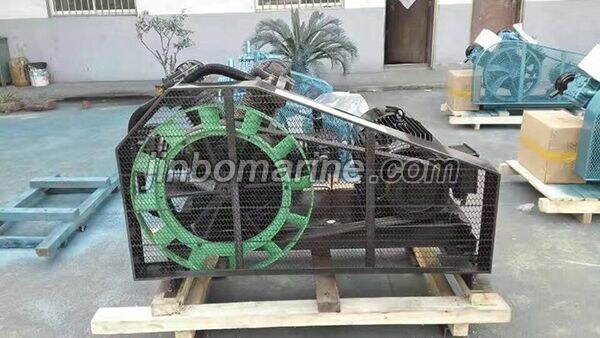

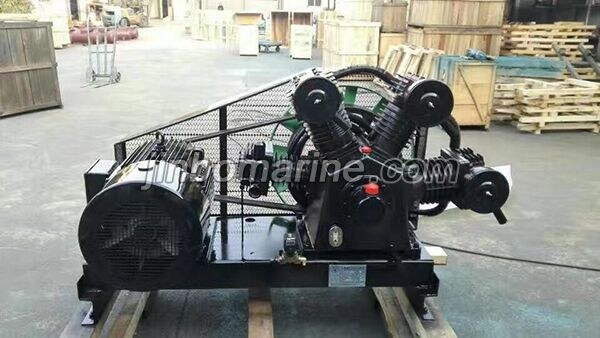

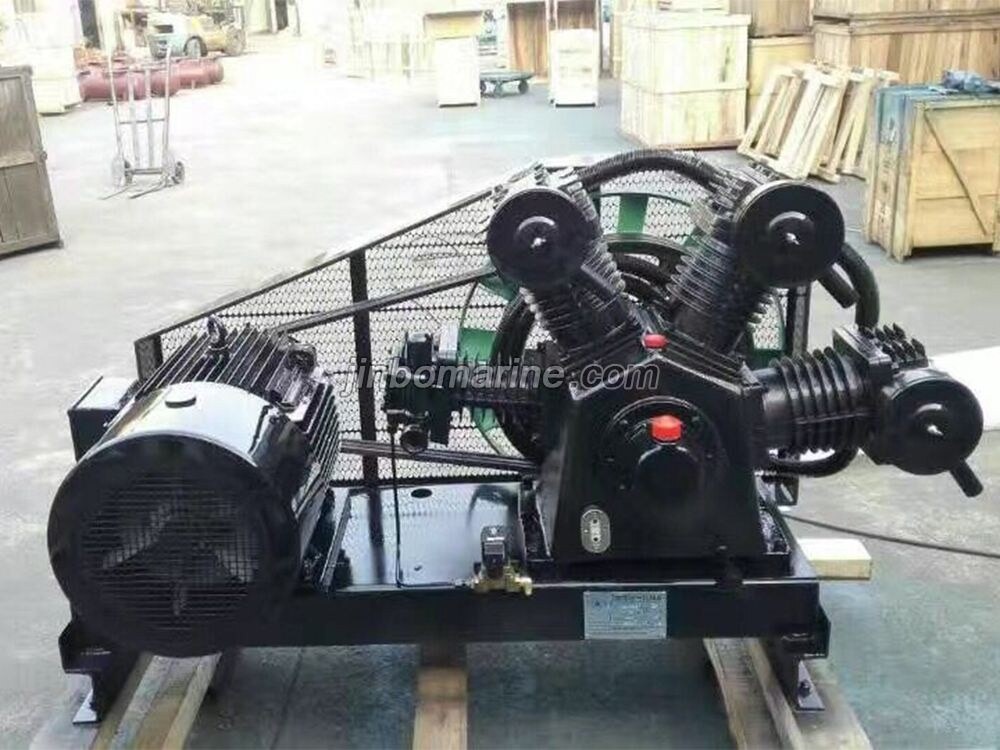

CF-120/30 Piston Type Medium Pressure Marine Air Compressor
- Category:Medium Pressure Air Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CF-120/30 Piston Type Medium Pressure Marine Air Compressor:
The common base is equipped with an air water separator, a pressure controller, and a battery discharge valve.
It can be equipped with temperature control device, shock absorber outlet and exhaust hose.
The fully controlled unit is equipped with wall hanging electronic control box, which can realize automatic unloading, automatic start, automatic stop, overload of motor, automatic alarm, high temperature and stop function.
Main Specification
Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight | Overall size | |
m3/h | m3/min | Mpa | r/min | KW | Kg | mm | ||
CF-120/30 | Three cylinders. | 120 | 2.0 | 3.0 | 760 | 22 | 600 | 1550x850x950 |
Air-cooled | ||||||||
Second stage compression. |
