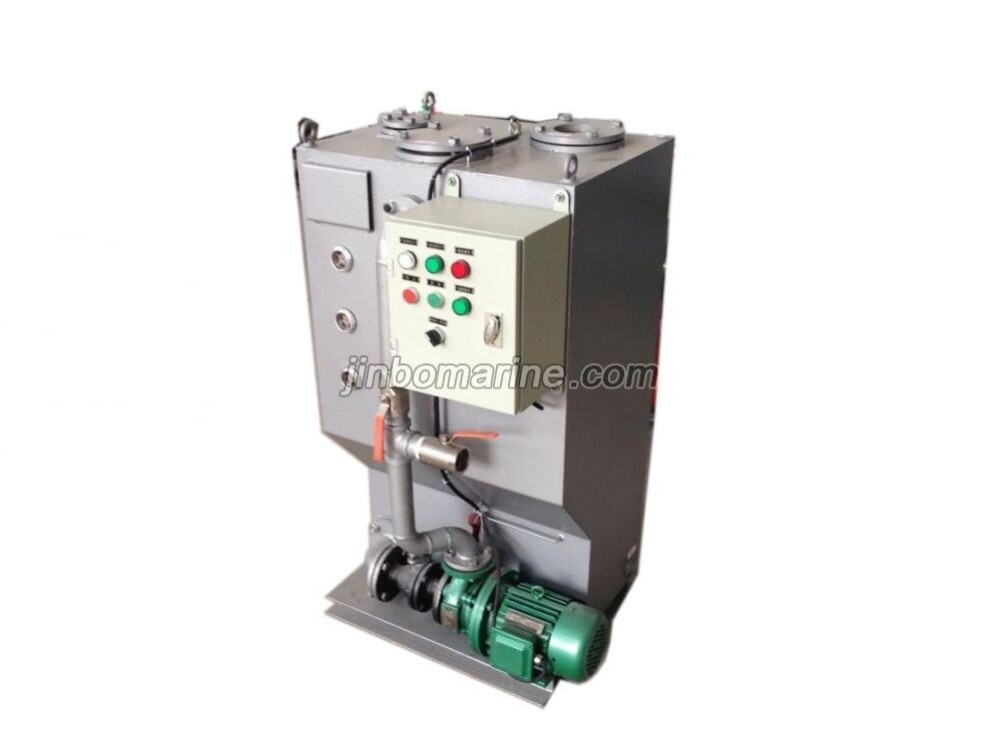

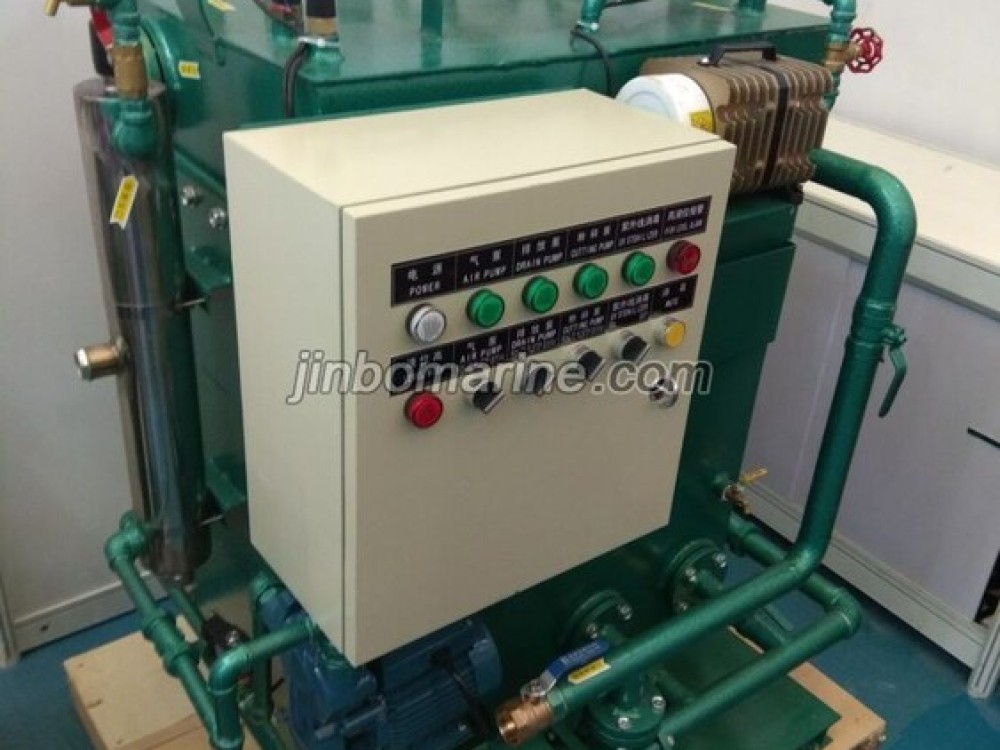

CWSC Series Sewage Treatment Plant
- Category:Sewage Treatment Plant
- Certificate:CCS certificate
- Material:Carbon Steel
- Packing Details:Standard Packaging
- Delivery Time:10 sets/month
- Standards:IMO MEPC227 (64)
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
Small oil-water separatorsuitable for small vessels, the price is very cheap.
Due to adopt the sequence batch reactor (SBR) and UV disinfection technique,the equipment features with advanced technology,reasonable process,stock load capability,compact structure,no secondary pollution etc.
The effusion of this plant can meet the amended convention of MAPOL 73/78 issued by international maritime organization, and fully conpliance the resolution MEPC.227(64) "revised guidelines on implementation of effluent standards and performance tests for sewage treatment plants"
|
Model Parameter |
CSWC | CSWC | CSWC | CSWC | CSWC | CSWC | CSWC | CSWC | CSWC | CSWC | |
| -10 | -20 | -30 | -40 | -60 | -80 | -100 | -120 | -150 | -200 | ||
| Capacity(m3/d) | 1.50 | 3.00 | 4.50 | 6.00 | 9.00 | 12.00 | 15.00 | 18.00 | 22.50 | 30.00 | |
| Electrical System | 380V/50Hz 440V/60Hz | ||||||||||
| Power (kw) | 3.20 | 3.20 | 3.50 | 3.50 | 4.00 | 4.00 | 5.00 | 5.00 | 5.50 | 5.50 | |
| Net weight(kg) | 650 | 750 | 830 | 1050 | 1380 | 1600 | 1850 | 2200 | 2500 | 2800 | |
|
Outline demension |
L(mm) | 1440 | 1440 | 1560 | 1760 | 2160 | 2820 | 3220 | 3620 | 4520 | 5820 |
| W(mm) | 1270 | 1470 | 1670 | 1870 | 1970 | 2170 | 2270 | 2270 | 2270 | 2270 | |
| H(mm) | 1580 | 1780 | 1880 | 1880 | 1980 | 1980 | 2080 | 2080 | 2080 | 2080 | |
