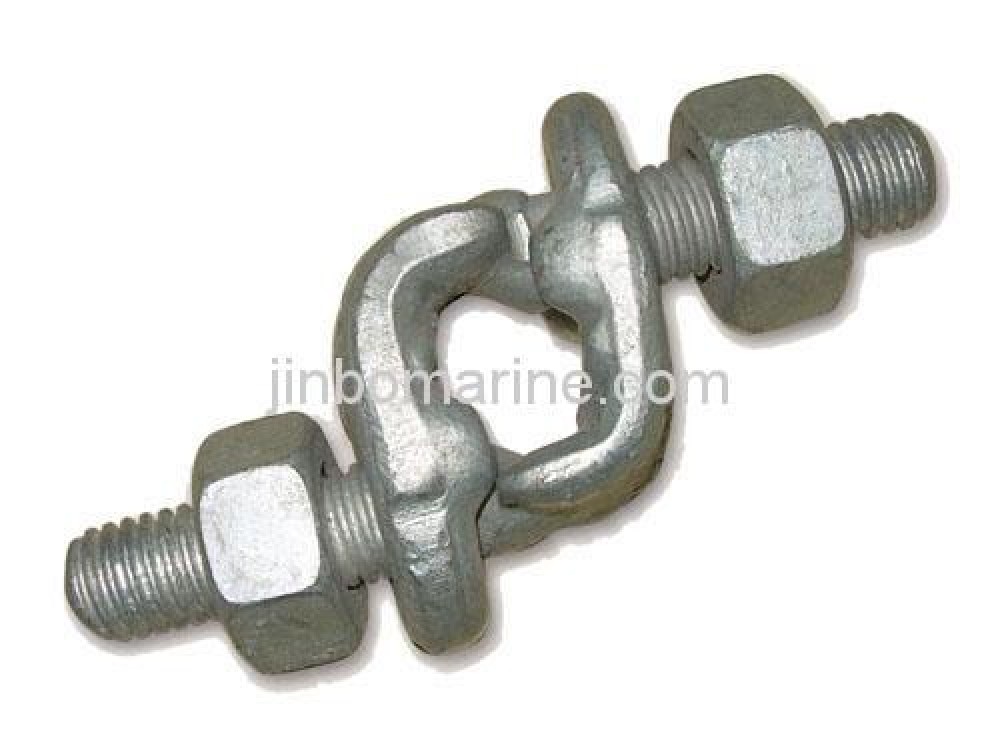

US Type Drop Forged Fist Grip Clip

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

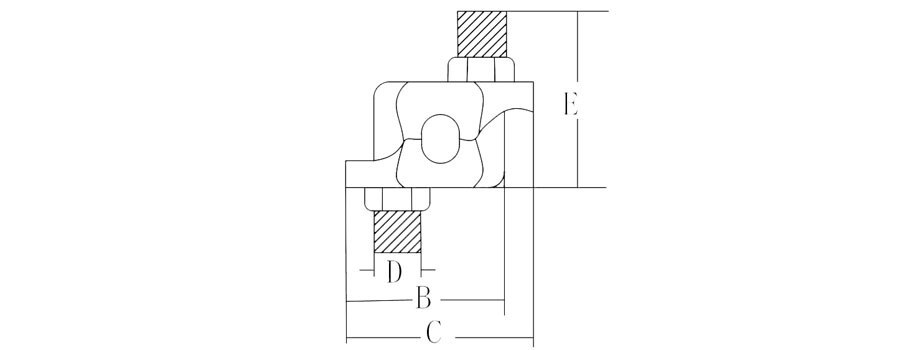

Size Table

Size A B C D E
3/16-1/4 6.35 31.75 37.3 9.65 32.5
5/16 7.87 34.04 39.69 9.65 37.34
3/8 9.65 10.39 47.63 11.18 45.79
7/16 12.7 47.75 55.56 12.7 55.6
1/2 12.7 47.75 55.56 12.7 55.6
9/16 16 57.9 66.68 16 68.33
5/8 16 57.9 66.68 16 68.33
3/4 19.05 68.33 77.79 19.05 74.68
7/8 22.35 75.44 79.38 19.05 84.07
1 25.4 78.23 89.69 19.05 94.5
1 1/8 28.7 87.38 99.22 22.35 106.17
1 1/4 31.75 90.42 102.3 22.35 107.95
1 3/8 38.1 104.9 118.27 25.4 141.22
1 1/2 38.1 104.9 118.27 25.4 141.22
