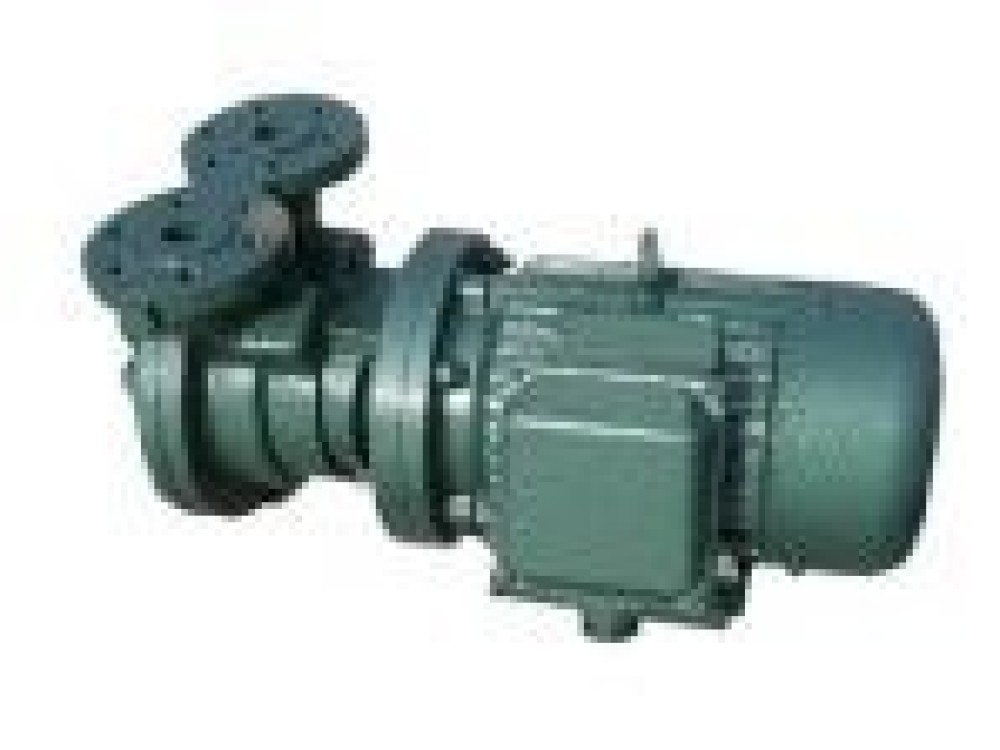

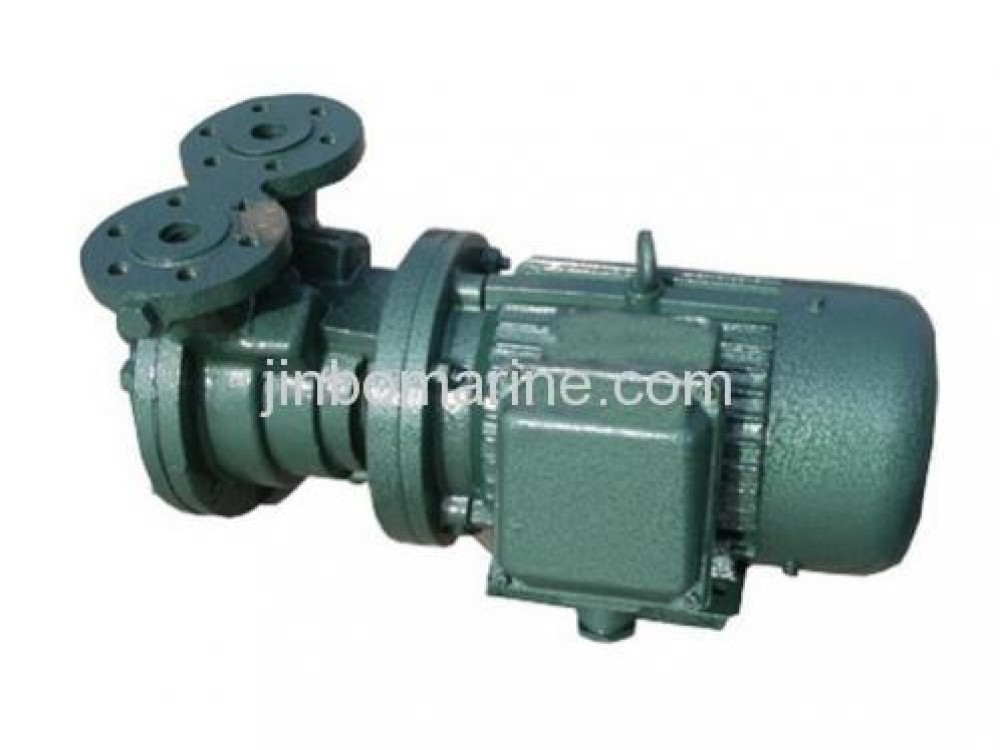

CXZ Series Marine Self-Priming Vortex Fresh Water Pump
- Category:Vortex Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
CXZ Series Marine Self-Priming Vortex Fresh Water Pump
CXZ Series Marine Self-Priming Vortex Pump is used to pumping fresh and seawater for drinking, washing and sanitary in the vessel.
Main Specification
| Type | Capacity | Head | (NPSH)r | Speed | Shaft power | Motor power | Suction head | Efficiency | Unit weight | |
| (m3/h) | (l/s) | (m) | (m) | (r/min) | (kw) | (kw) | (m) | (%) | (kg) | |
| 20CXZ-35 | 1 | 0.3 | 35 | 7 | 2900 | 0.43 | 0.75 | 3 | 20 | 42 |
| 32CXZ-25 | 3.5 | 1 | 28 | 7 | 2900 | 1.48 | 1.5 | 3 | 18 | 57 |
| 32CXZ-40 | 3 | 0.8 | 40 | 6 | 2900 | 1.82 | 2.2 | 4 | 18 | 57 |
| 40CXZ-30 | 9 | 2.5 | 30 | 6 | 2900 | 2.54 | 4 | 4 | 29 | 80 |
