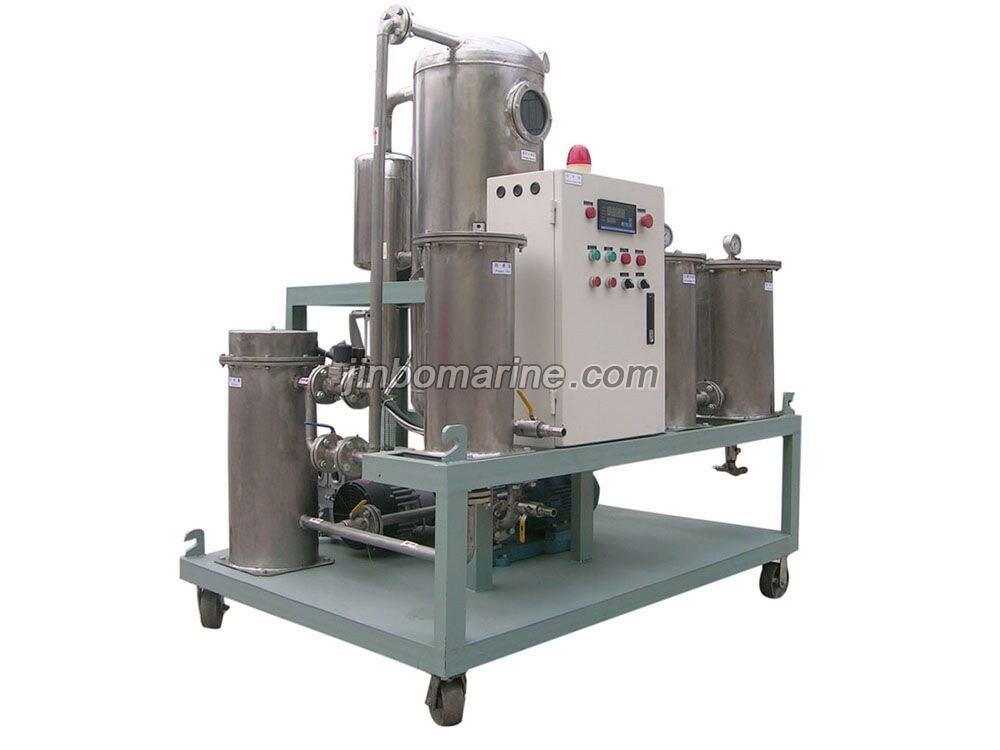

TYC Series Phosphate Ester Fire Resistant Oil Purifier
- Category:Oil Purifier
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China TYC Series Phosphate Ester Fire Resistant Oil Purifier:
TYC series phosphoric acid fuel oil filter:
The TYC series is widely used in the purification of oil resistant system with EH phosphoric acid fuel.
Technical features:
1. This machine is a new generation of vacuum oil filter for phosphate anti fuel oil system developed by machine, anti settling, aggregation and separation, vacuum analysis, vacuum flash evaporation, retention, dehydration, degassing technology, not only can effectively remove oil free moisture and gas, but also the deep removal of oil in 100% the free water and the 99% water and dissolved gas;
2. It using a new type of composite material made of progressive encryption filter, can remove a large number of impurities in the oil filter.
Sorbent material resistivity and new special acid increased by u, the material is a high surface activated agent patent special, for the production of submicron grade porous inorganic meltblown, increase super active agent three oxidation two lanthanum (La2O3) and cerium (CeO2) compound and into, is 20 times of conventional regeneration agent activity the. It can effectively adsorb the colloidal substance in the oil, degrade the organic acid and inorganic acid in the oil, and greatly improve the resistivity of the oil.
3. This machine is made of stainless steel, which is anti acid and anti - corrosion. The filter element and sealing material are made of non - soluble material. It is beautiful, light, easy to operate, low noise and long service life.
4. This equipment is equipped with automatic infrared liquid level control system, automatic pressure protection system to ensure high performance and reliable operation of the equipment.
5. Online oil filter, unattended, running status indicator light display.
Technical data:
Item | Unit | TYC-10 | TYC-20 | TYC-30 | TYC-50 | |
Flow Rate | L/min | 10 | 20 | 30 | 50 | |
working vacuum | Mpa | -0.06~-0.095 | ||||
working Preuusre | Mpa | ≤0.3 | ||||
power | / | 380V/50HZ(at user's option) | ||||
noise db(A) | dB(A) | ≤65~80(depend on user's requirement) | ||||
Fult-free working hours | h | ≥4000 | ||||
continuous hours | h | ≥150 | ||||
Heating power | Kw | 9 | 18 | 18 | 30 | |
Total Power | Kw | 12 | 20 | 21 | 33 | |
After filteration | water content | ppm | ≤100 | |||
gas content | % | ≤0.1 | ||||
acid value | mg KOH/g | ≤0.05 | ||||
Resistance value | Ω | ≤1.0×1010 | ||||
granularity | NAS | ≤5 Stage |
