CYSC107 Series 15ppm bilge water separator
- Category:Marine Oil Water Seperator
- Standards:IMO MEPC.107(49)
- Certificate:CCS
- Delivery Time:20days
- Supply Ability:30 Sets/Month
- Packing Details:Export Wooden Box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

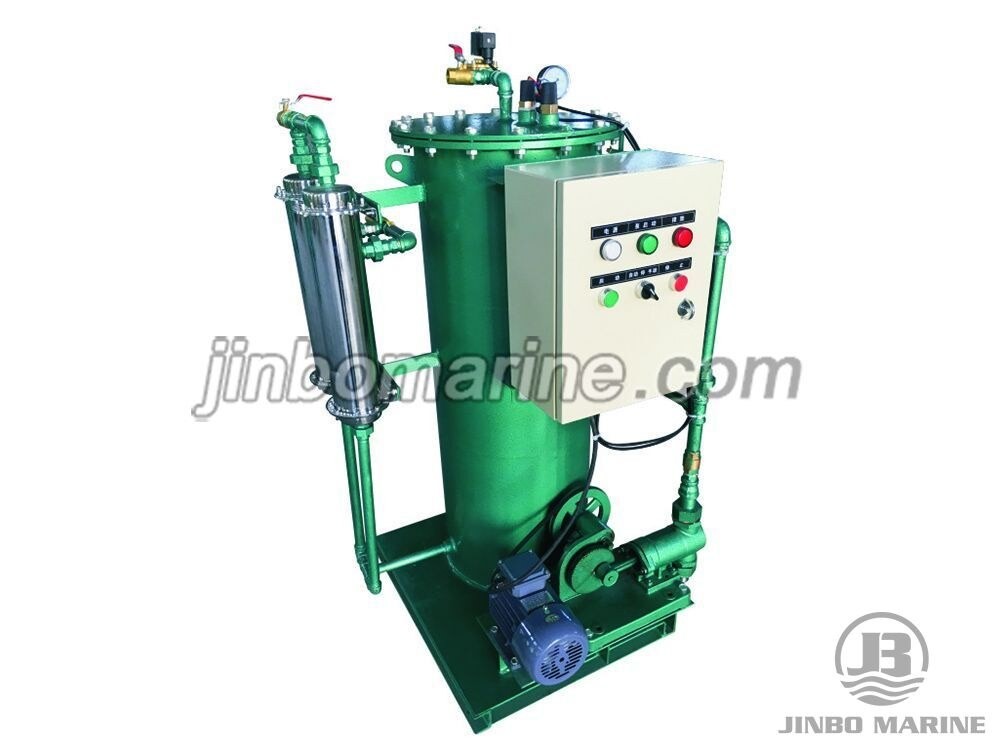

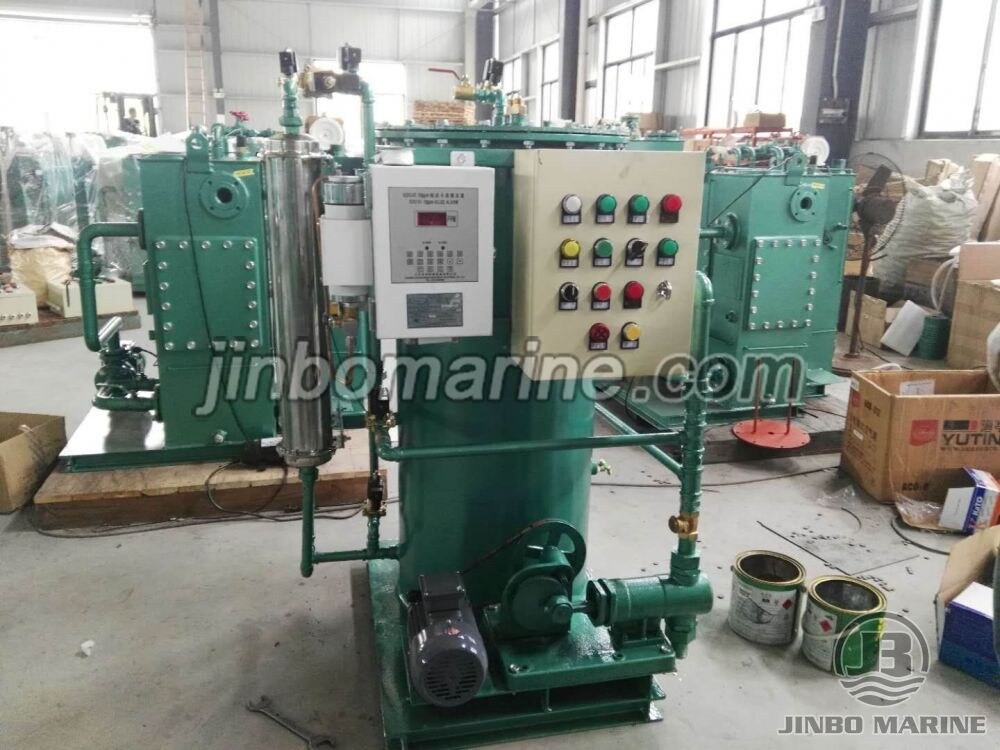

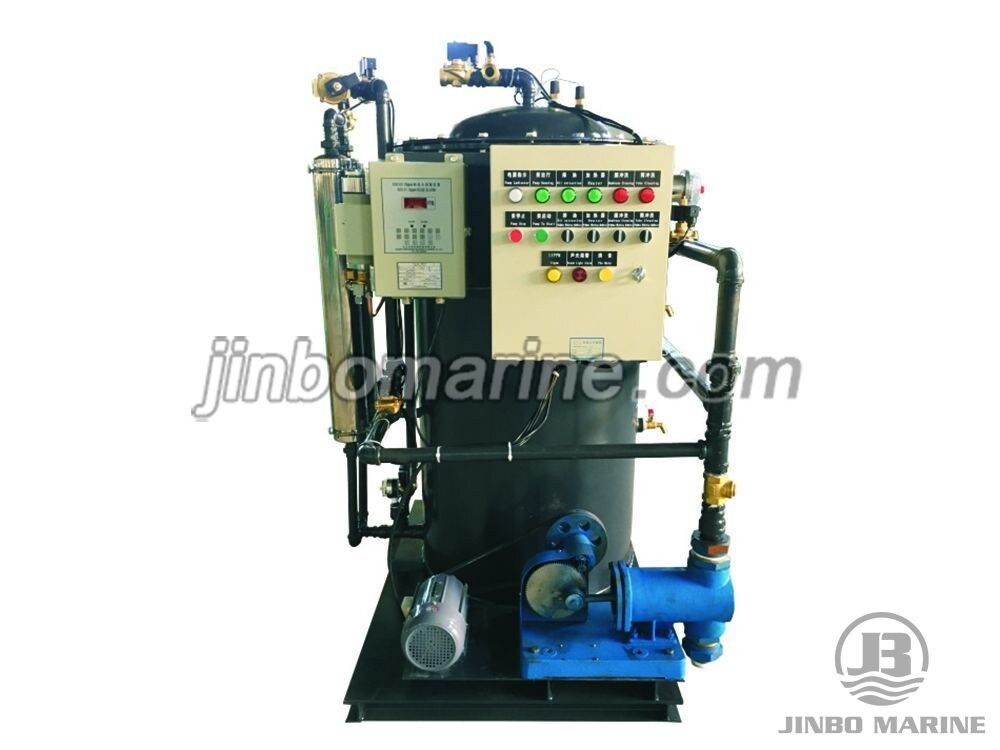

China CYSC107 Series 15ppm bilge water separator:
CYSC107 Series 15ppm bilge water separator is the oily water separator which using gravity, coalescence, and mining companies, power plants, oil depots and other occasion oily wastewater processing, the separator can handle emulsified oily water. The processing result of the device is in full compliance with the convention on the international maritime organization MARPOL 73/78 MEPC 107(49) Specifications resolution. Our products get domestic and international classification society type approval certificates.
Product Feature:
1. No need to add any additional items such as chemical demulsifies.
2. Overcome the short life of membrane, high replacement cost disadvantage.
3. No need to use absorbent materials, which are easily saturated & intractable problems.
4. Compact structure, small size easy installation.
5. Fully automatic control and production measures, ease of operation.
Type | CYSC107- | ||||||
technical parameter | |||||||
0. 1 | 0.25 | 0.5 | 1 | 1.5 | 2 | ||
(m3/h) | 0. 1 | 0.25 | 0.5 | 1 | 1.5 | 2 | |
Separating Capacity | |||||||
(m3/h) | 0.11 | 0.275 | 0.55 | 1.1 | 1.1 | 2.2 | |
Max Separating Capacity | |||||||
(kW) | 0.25 | 0.37 | 0.37 | 0.55 | 0.55 | 0.75 | |
Motor Power | |||||||
(MPa) | ≤0.4 | ≤0.6 | |||||
Bilge water inlet Pressure | |||||||
(MPa) | ≥0.1 | ≥0.2 | |||||
Effluent Pressure | |||||||
Oil Content of Effluent | ≤ 15 ppm | ||||||
Discharging Oil Means | Automatic and Manual | ||||||
Heater Model | Electric heating(Optional) | ||||||
Voltage | AC220V/380V 50HZ | ||||||
