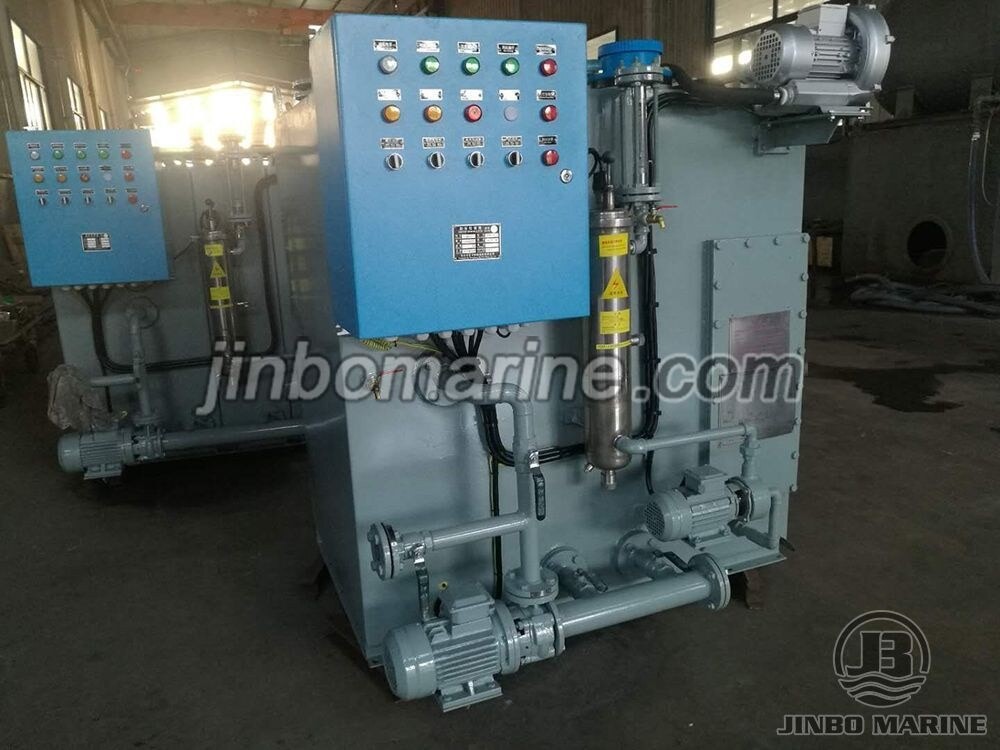

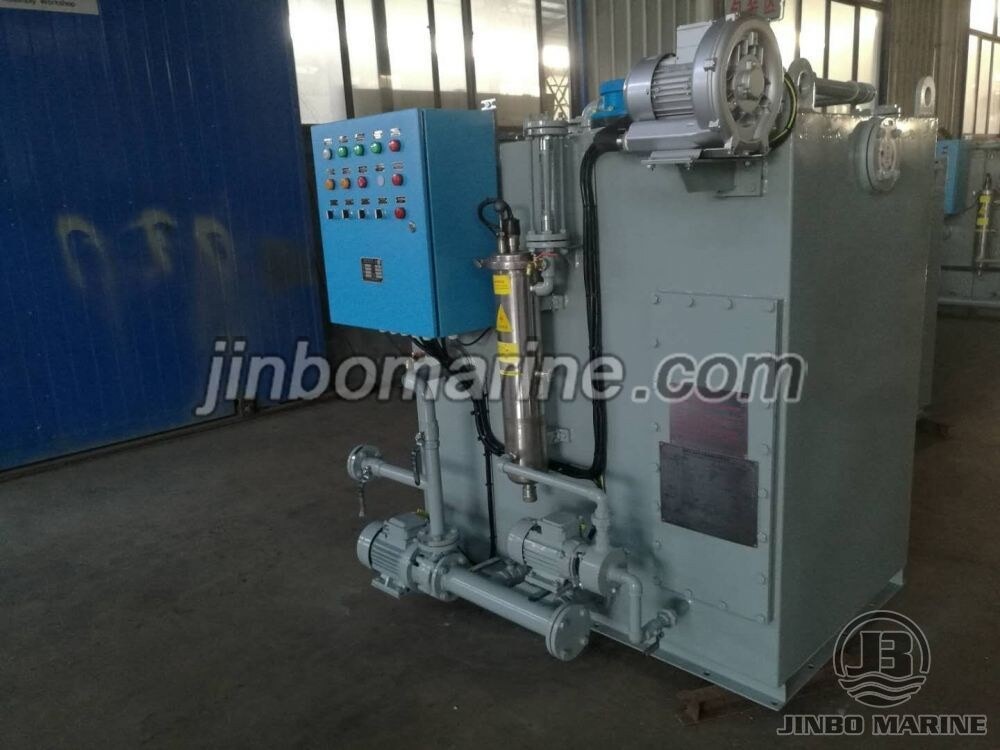

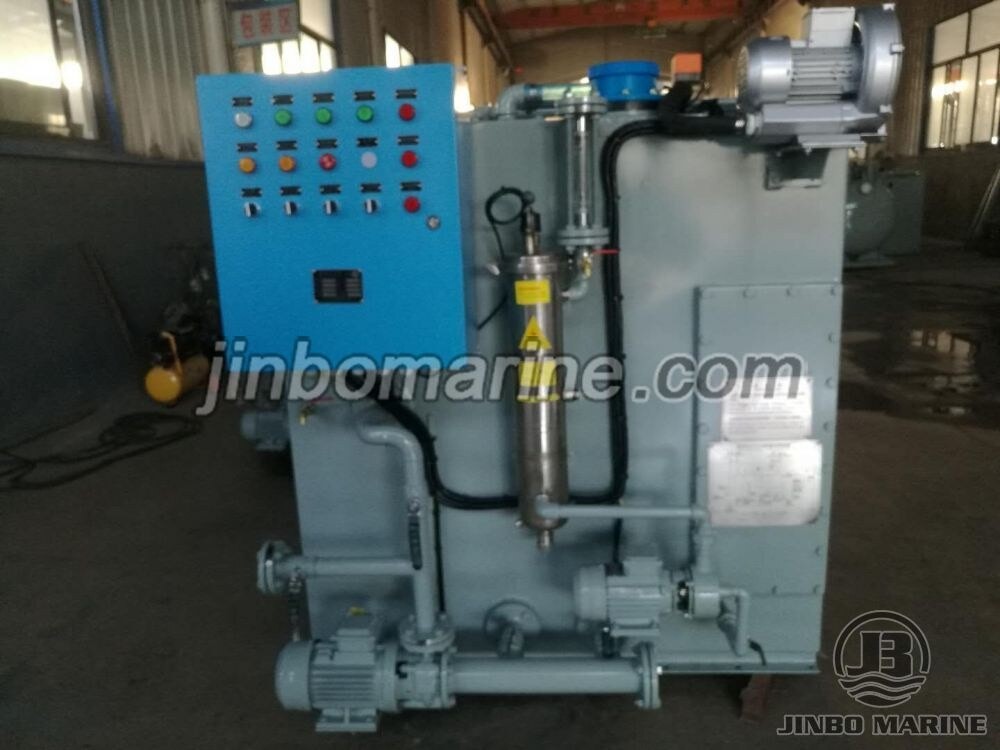

SWCM-15 Square Type Sewage Treatment Plant

This equipment SWCM square is SWCM round modification, suitable for ships with small engine room size, or customers have special requirements of the ship, technical specifications and requirements and SWCM round the same, to meet the latest IMO 224 (67) standards. At the same time, we can refit according to customer's request.

Technical Feature:

1.Adopting horizontal circular design, ellipse closures on both ends, pressure resistance and compact structure.

2.The device is adopted auto-control, and compliance with the requirement of 24-hours unattended cabin.

3.Adopting the "MBR" technology, devices allow to the narrow size, and solve the conflict of small space of cabin, but

big volume of device.

4.The intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of "aerobic -

anoxic", and resolve the problem of "nitrogen and phosphorus removal".

5.The device is adopting the principle of“air-lifting”to transfer the sludge from sediment tank and membrane tank

to aeration tank, meantimes the“pump stops and air never stopped”, so as the scale on the membrane surface comes

down. Due to back flushing and clean the membrane“online”usd technology patent.

6."On-line" cleaning technology, making the dirt on membrane off automatically, recover membrane flux. It can be

solved the problem of opening the cleaning or replacement of membrane difficultly caused by the small space in cabin.

7.The effluent after further treatment can be reached at the requirement of“water recovery”.

Packing:
