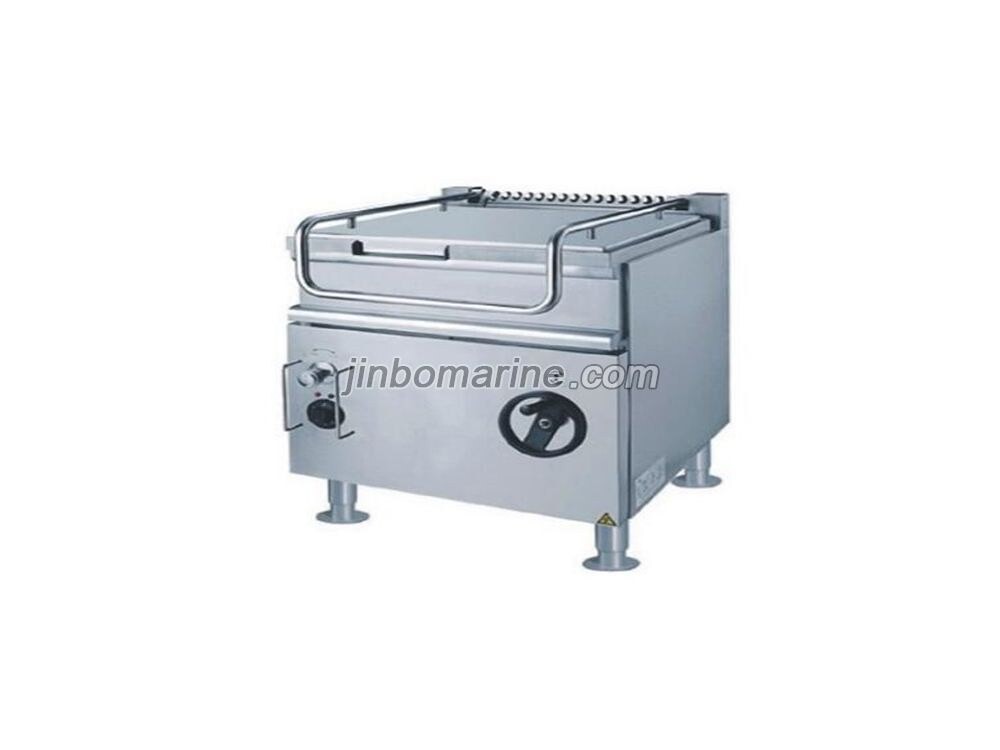

DCG-40 Marine Titling Frying Pan

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

DCG-40 Marine Titling Frying Pan

1.Complete stainless steel execution.
2.Rotary manual tilt device.
3.Heating temperature is between 60℃ and 300℃, and can be set freely.
4.Induction system on the pan bottom will automatically stop heating when the pan body tilt.
5.Rounded bottom designed, easy for cleaning.
6.With adjustable fixed feet.

DCG-40 Marine Titling Frying Pan Specification



Model Voltage Capacity Rating Size(WxDxH)mm Weight
DCG-40 380-415V/3P/50Hz
440-480V/3P/60Hz 		40L 9Kw 700x700x850 120kg
DCG-80 380-415V/3P/50Hz
440-480V/3P/60Hz 		80L 9Kw 800x900x850 150kg
DCG-40R 380-415V/3P/50Hz
440-480V/3P/60Hz 		50L 9Kw 1025x700x850 150kg
DCG-150R 380-415V/3P/50Hz
440-480V/3P/60Hz 		15L 18Kw 1400x900x900 230kg
