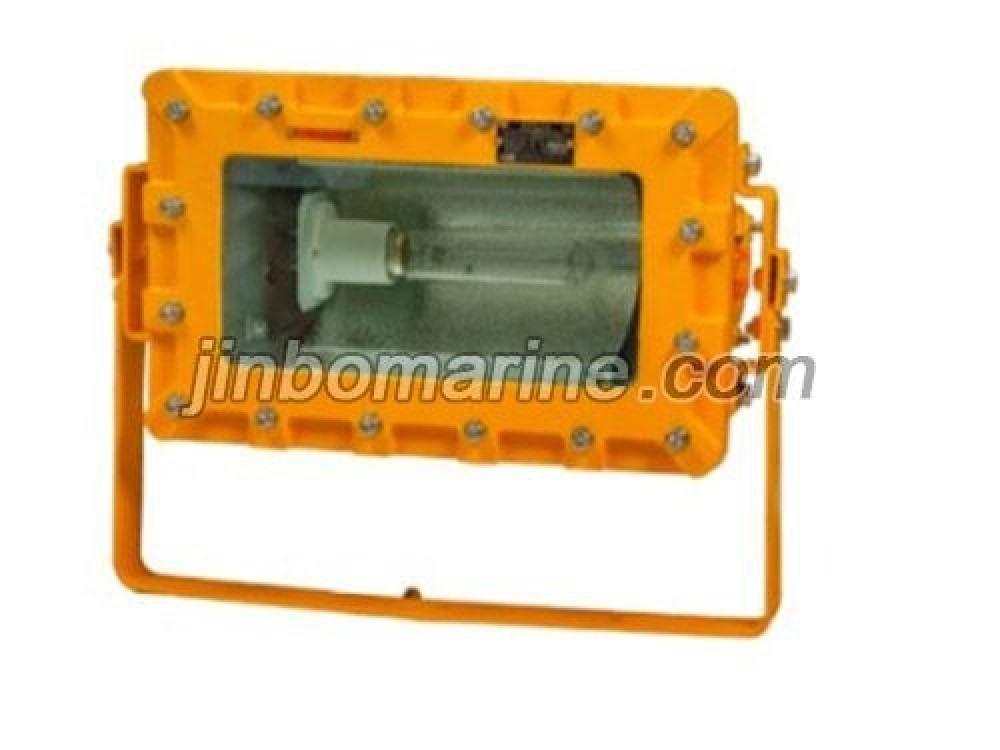

dHF220-250 Exproof Flood Light
- Category:Marine Explosion-proof Lights Series
- Packing Details:Wooden Plate
- Delivery Time:10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China dHF220-250 Exproof Flood Light:
Application
Applied to illumination of ship oil exploit platform, chemical product and explosive gas plaze zone 1 and zone 2.
Product Feature
1. The body is made of cast brass, lampshade is transparent toughened glass, with stainless steel metal guard, high water-proof and anti-corrosion.
2. Production class is IP56.
Standard
1. Chapter 3, Part 4 of Classification Society Rules for Classification of Sea-going Steel Ships 2015 and its Amendments;
2.GB7000.1-2015,Luminaires –Part1:General requirements and tests.
3.Confirm to the GB3836.1-2010<explosion environment first parts:general requirements for equipment> and GB3836.2-2010<explosive environment-parts second:equipment protected by flameproof enclosre D>
Specification
Type
Voltage
Power
Luminous Flux
Lamp Golder
Ex-proof Symbol
Light Source
Weight
dHF220-250
110/220V 50/60Hz
250W
9500lm
E40
Exd II BT4 Gb
High Pressure Sodium
Lamp
42kg
dHF220-400
110/220V 50/60Hz
400W
21000lm
E40
Exd II BT3Gb
42kg
dHF220-1000
110/220V 50/60Hz
1000W
65000lm
E40
Exd II BT2 Gb
48kg
