Diving Breathing High Pressure Air Compressor LYX100

LYX100 mini high pressure air compressor is a portable compressor for breathing in diving, firefighting. It is small and light, and can be moved by a single man. It compresses free air to 30Mpa and removes oil, vapor and other contaminants by filters and separators. It is safe and reliable source of pure air. The air quality accords to EN international breathing compressed air quality.

Air-cooling piston reciprocating
Oil splash lubrication
Copper pipe inter-cooler and after cooler
Specially treated alloy cylinder, piston and piston ring
High-strength nylon cooling fan assembly
Intake filter
Anti-shock floor mat
Manual condensate drain knob
Filling hose and filling valve
Safety valves protection for every stage
High temperature resistance plastic powder coating steel frame and base
Activated carbon, monocular sieve for air purification in the filter
Consumables and manuals are provided with every compressor
The warranty period is 1 years

Model	Operating pressure	Drive	Delivery rate	Power	Dimension	N. weight	Noise level

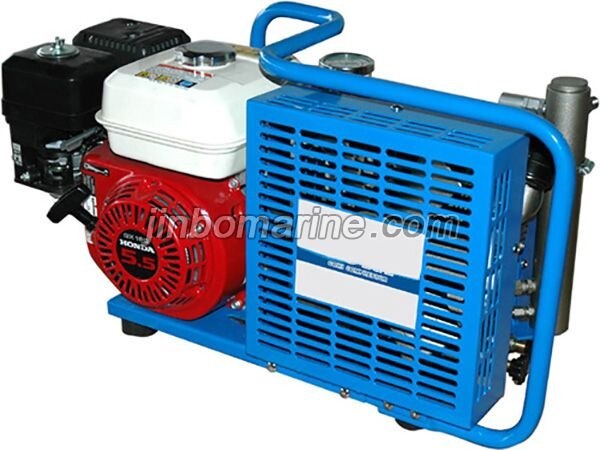

LYX100C	300BAR	Honda engine	100L/min	5.5Hp	74*32*41Cm	43 kg	<79 dB（A）

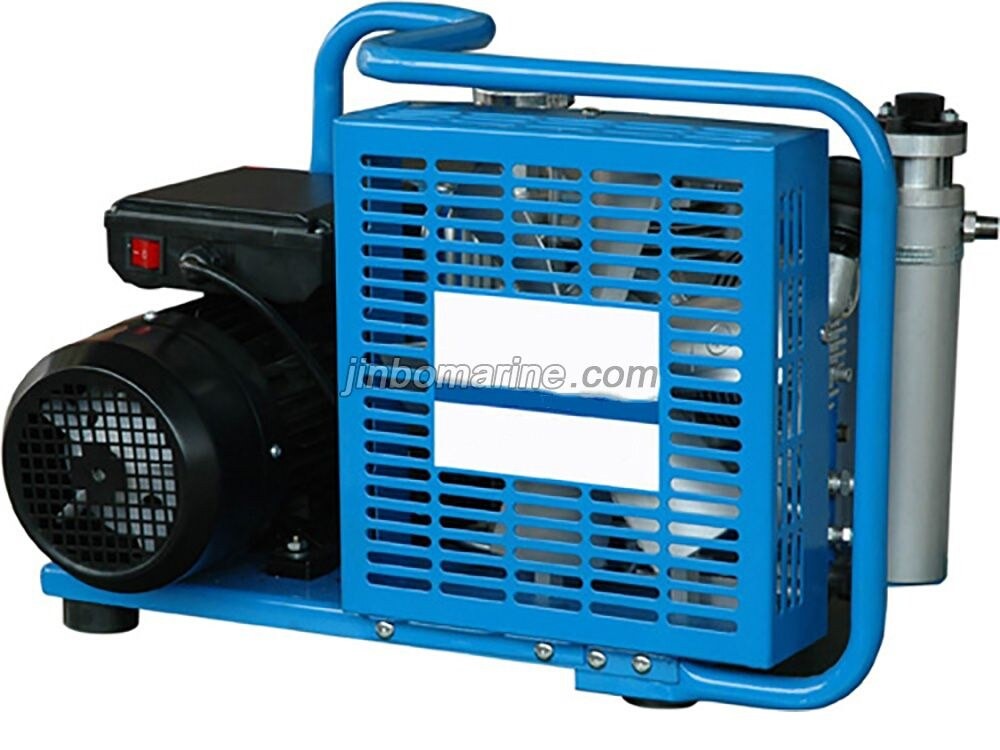

LYX100A	300BAR	Three-phase motor	100L/min	3kw	60*38*41Cm	44 kg	<78 dB（A）
LYX100B	300BAR	Single-phase motor	100L/min	2.2kw	60*38*41Cm	45 kg	<78 dB(A)
