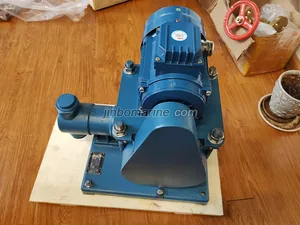

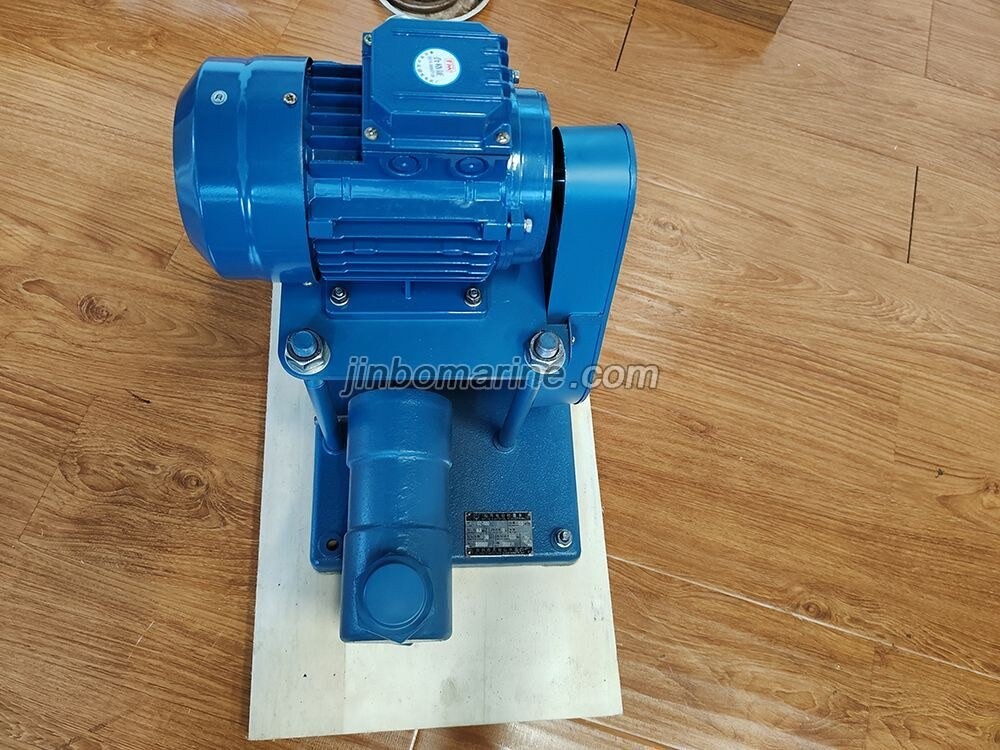

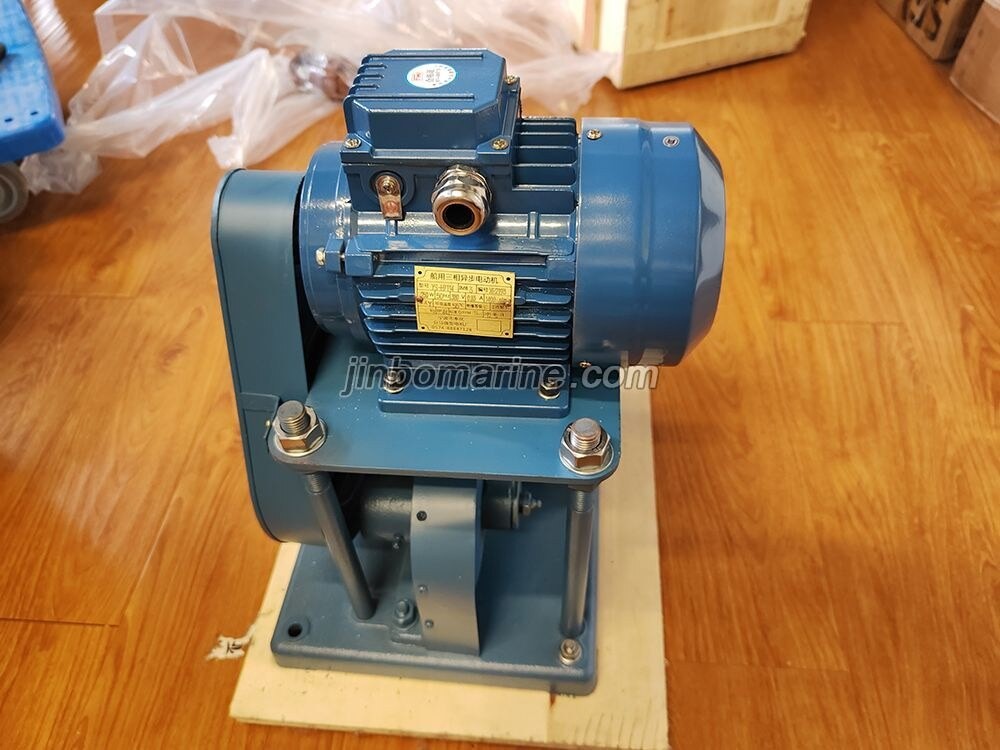

DZ-500 marine motorized plunger type oily water delivery pump
- Category:Reciprocating Pump
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:

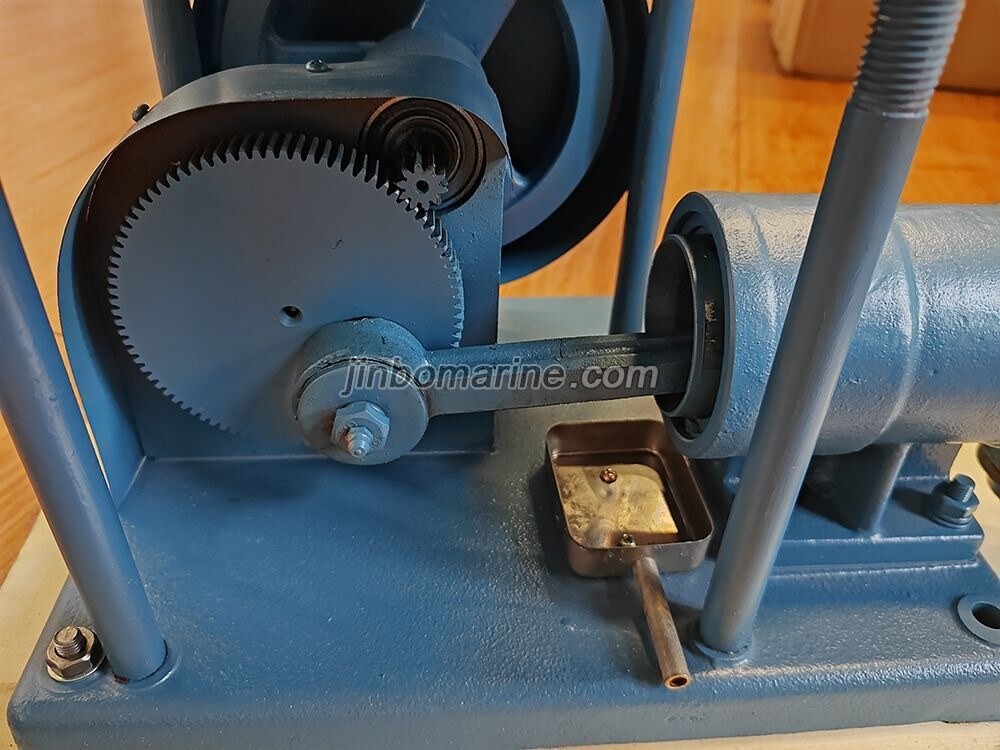

DZ-500 marine motorized plunger type oily water delivery pump is a single cylinder
single-action horizontal reciprocating motorized plunger-type pump manufactured according
to the technical standard CB/T3160-92.
Testing by the Chinese classification societies has made an inspection of it to find that all the
performances and index meet the requirements of the national ship building code. The model
of the product has been approved.
Techincal data:
Item |
Type Unit |
DZ-100 | DZ-250 | DZ-500 | DZ-1000 | DZ-2000 | DZ-3000 | DZ-4000 | DZ-5000 | |
Head | Mpa | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
Delivery capacity | m³/h | 0.1 | 0.25 | 0.5 | 1 | 2 | 3 | 4 | 5 | |
Suction lift | m | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
Reciprocating times | min | 50 | 56 | 50 | 50 | 70 | 70 | 60 | 70 | |
Stroke | mm | 28 | 42 | 64 | 64 | 80 | 90 | 120 | 120 | |
Cylinder diameter | mm | 40 | 50 | 60 | 85 | 90 | 105 | 115 | 115 | |
Suction and discharge diameter |
mm | 20 | 25 | 25 | 40 | 40 | 50 | 65 | 65 | |
Motor | Power | KW | 0.12 | 0.18 | 0.25 | 0.37 | 0.75 | 1.1 | 1.5 | 1.5 |
Voltage | V/HZ | A.c380/50 | A.c380/50 | A.c380/50 | A.c380/50 | A.c380/50 | A.c380/50 | A.c380/50 | A.c380/50 | |
Speed | r/min | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
YS-H6314 | YS-H6324 | YS-H7114 | YS-H7124 | YS-H8024 | Y90S-4-H | Y90L-4-H | Y90L-4-H | |||
Pump weight | kg | 15 | 27 | 27 | 37 | 47 | 110 | 140 | 140 | |

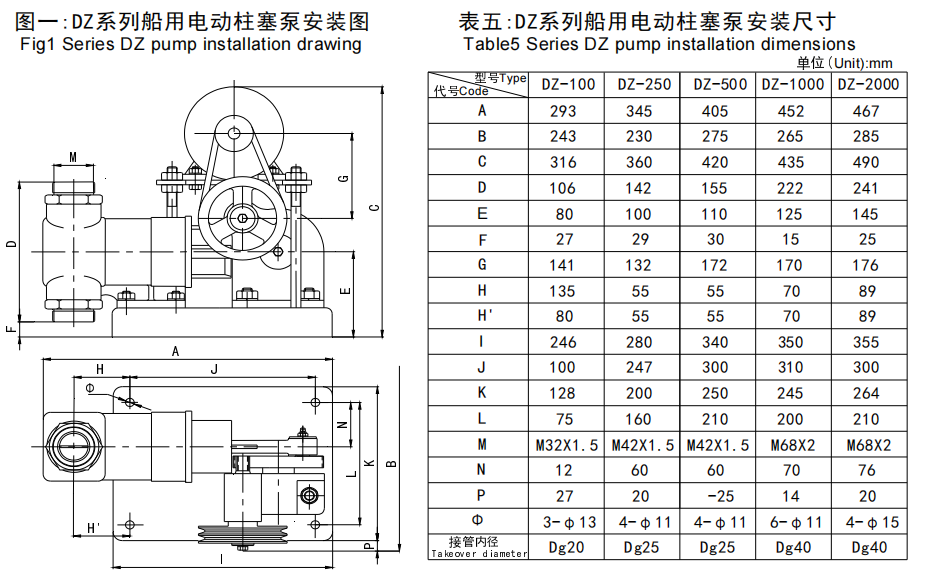

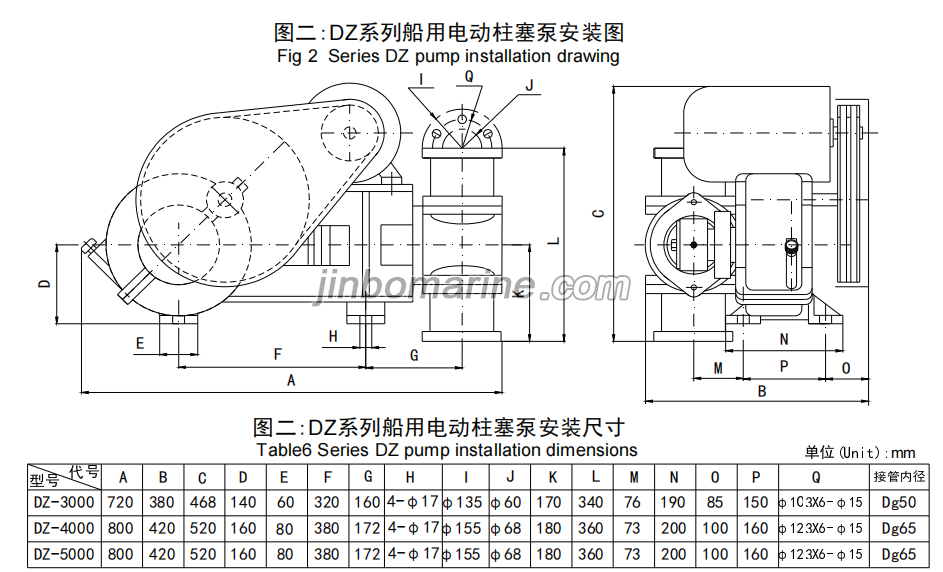

Outline dimensions |
Length | mm | 293 | 345 | 405 | 452 | 467 | 710 | 800 | 800 |
Width | mm | 190 | 230 | 275 | 265 | 340 | 390 | 420 | 420 | |
Height | mm | 316 | 360 | 420 | 435 | 490 | 490 | 520 | 520 |
