China High Pressure 15 to 20MPa Water Cooling Marine Air Compressor:

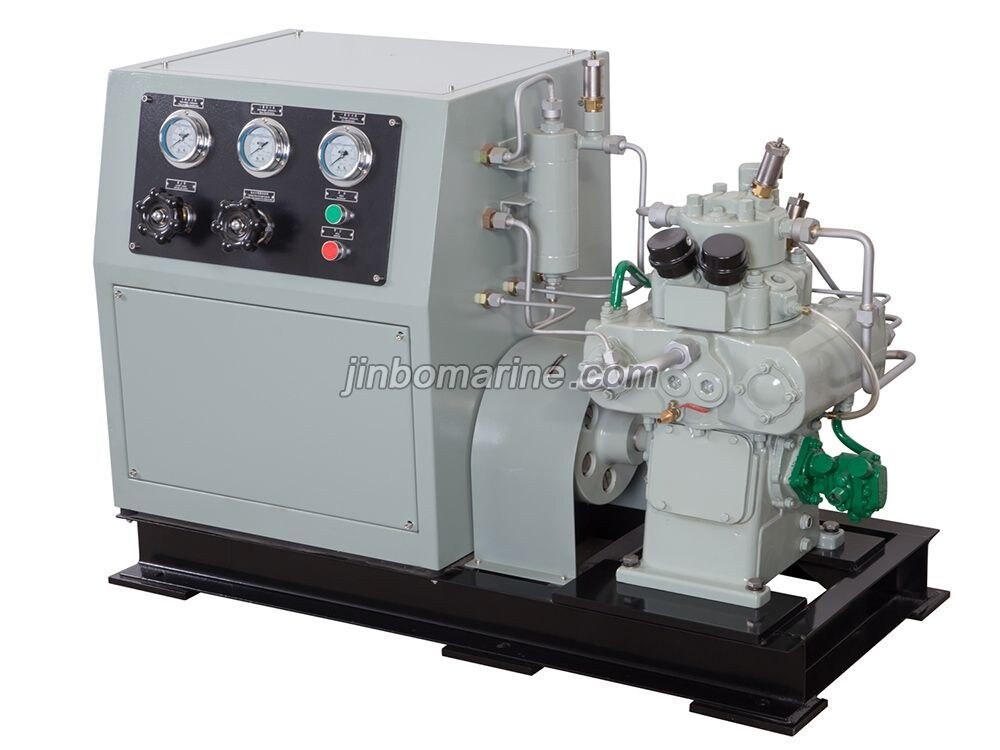

Air compressor unit is directly driven by a motor through the coupling. Such model is provided with cooling tank and protection cabinet outside the unit. Outside of the protection cabinet, it is equipped with an operating panel. It is characterized by compact structure, small size, low weight, high pressure, reliable running and easy operation, providing high pressure compressed air required for shipbuilding, electric communication, chemical engineering, instruments & meters, Petroleum and research units.
High Efficiency,energy saving,low noise.
Specification
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight |
| m3/h | Mpa | r/min | KW | Kg | ||
| 1-0.27/150 |
Single row. Vertical type. Water cooling,air cooling. Three stage compression. Piston type. |
0.27 | 15 | 1000 | 7.5 | 300 |
| CZ-0.42/150 | 0.42 | 20 | 1500 | 11 | 330 | |
| CZ-0.41/200 | 0.41 | 20 | 1500 | 11 | 350 | |
| CZ-0.43/60 | 0.43 | 6 | 1500 | 11 | 330 | |
|
Outer
dimension: Hozitontal type:1170x550x960mm Verticaltype:720x600x1190mm |
||||||
