DZ Series Marine Electic Piston Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

DZ series Marine Electric piston Pump

General description

DZ series marine electric piston pump without the transmission medium can be hard particles or fibers; the temperature is not higher than 85c water,fresh water,oil,drainage.

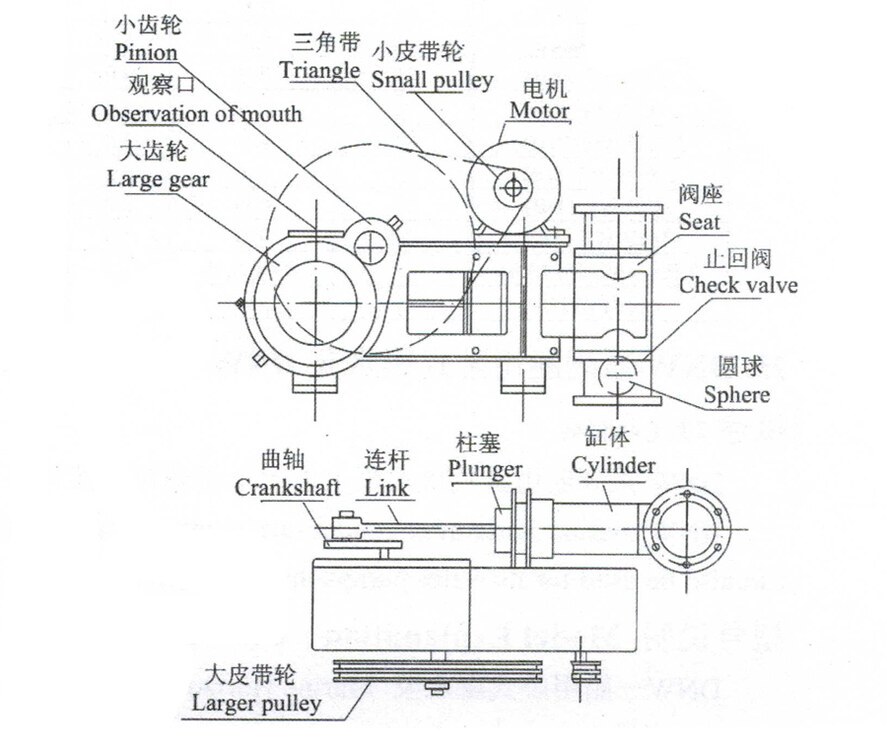

Structural Specifications

Performance Parameter

Type Discharge pressure Suction head Capacity Reciprocating number Travel Jar Dia. Suc Dia Power Speed Weight
Mpa m m3/h 1/min mm mm mm kw rpm kg
DZ-100 0.19 4 0.1 66 28 38 15 0.18 1400 15
DZ-250 0.29 5 0.25 56 42 50 23 0.25 1400 27
DZ-500 0.29 5 0.5 50 64 60 23 0.37 1400 27
DZ-1000 0.29 5 1 50 64 85 50 0.55 1400 37
DZ-2000 0.29 6 2 68 80 90 50 0.75 1400 47
DZ-3000 0.29 6 3 70 90 105 50 1.1 1400 120
DZ-4000 0.29 6 4 68 120 115 60 1.5 1400 140
DZ-5000 0.29 6 5 68 120 115 60 2.2 1420 140
DZ-104 0.29 6 10 68 120 118 80 3 1420 230
