R3S Offshore Stud Link Mooring Chain
- Category:Stud Link Mooring Chain
- Material:Rolled Steel Bars
- Standards:ISO 1704/API
- Certificate:ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

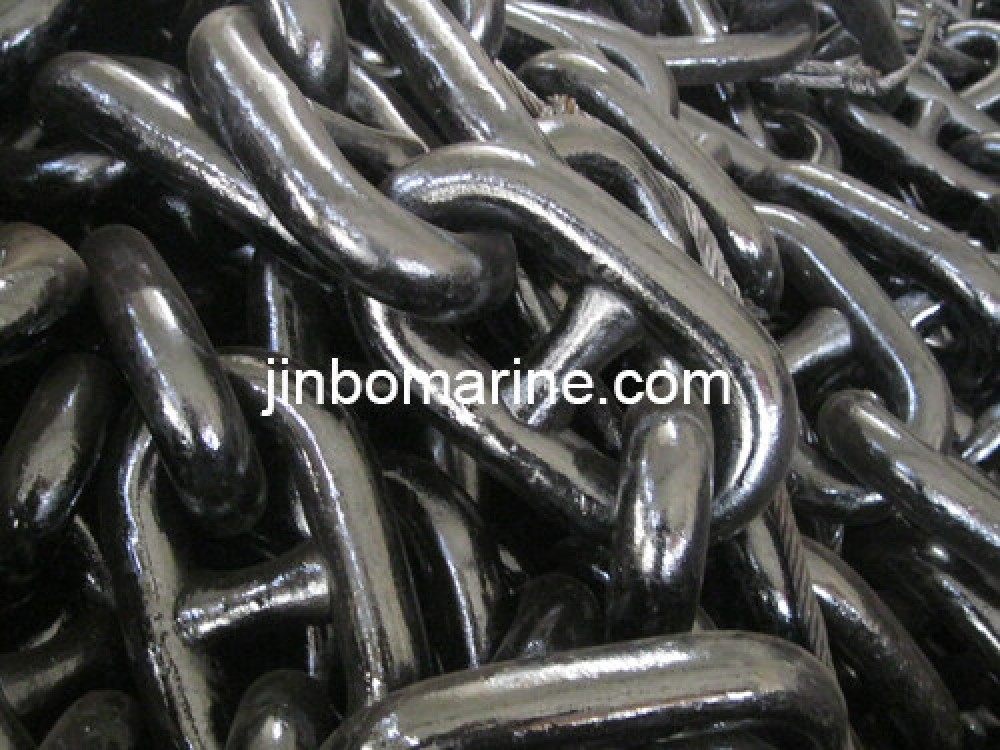

China R3S Offshore Stud Link Mooring Chain:
R3S Offshore Stud Link Mooring Chain is better than R3 Grade mooring chain, the material grade is higher, this mooring chains can be used for mooring system permanently in the environment in the seawater.
Each length of mooring chain is to be inspected carefully before delivery to our client.
Testing and inspection for the finished mooring chains
Proof Load Test
Dimensions Measurement
Mechanical Tests
Nondestructive Examination
Main Specification:
Size: 76mm to 185mm
Grade: R3S
Finish: Black Painted.
Certificate:ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
Proof Load Table for R3S Offshore Stud Link Mooring Chain
Diameter | Break Load (KN) | Proof Load(KN) | Weight | |||
R3S | API | R3S | API | |||
Stud | Stud | Stud | Stud | |||
Mm. | kN | kN | kN | kN | kN | Kgs/m |
19 | 382 | 324 | 276 | 267 | 285 | 8 |
20.5 | 443 | 376 | 320 | 310 | 249 | 9 |
22 | 509 | 431 | 368 | 356 | 286 | 11 |
24 | 604 | 511 | 436 | 422 | 339 | 13 |
26 | 706 | 598 | 510 | 493 | 397 | 15 |
28 | 815 | 691 | 589 | 570 | 458 | 17 |
30 | 932 | 790 | 674 | 651 | 524 | 20 |
32 | 1057 | 895 | 764 | 738 | 594 | 22 |
34 | 1188 | 1007 | 859 | 830 | 668 | 25 |
36 | 1327 | 1124 | 959 | 927 | 746 | 28 |
38 | 1473 | 1248 | 1065 | 1029 | 828 | 32 |
40 | 1625 | 1377 | 1175 | 1136 | 914 | 35 |
42 | 1785 | 1513 | 1290 | 1247 | 1004 | 39 |
44 | 1951 | 1654 | 1411 | 1364 | 1097 | 42 |
46 | 2124 | 1800 | 1536 | 1485 | 1194 | 46 |
48 | 2304 | 1952 | 1666 | 1610 | 1295 | 50 |
50 | 2490 | 2110 | 1800 | 1740 | 1400 | 55 |
52 | 2682 | 2273 | 1939 | 1874 | 1508 | 59 |
54 | 2881 | 2441 | 2083 | 2013 | 1620 | 64 |
56 | 3086 | 2615 | 2231 | 2156 | 1735 | 69 |
58 | 3297 | 2794 | 2383 | 2304 | 1854 | 74 |
60 | 3514 | 2978 | 2540 | 2455 | 1976 | 79 |
62 | 3737 | 3166 | 2701 | 2611 | 2101 | 84 |
64 | 3965 | 3360 | 2867 | 2771 | 2230 | 90 |
66 | 4200 | 3559 | 3036 | 2935 | 2361 | 95 |
68 | 4440 | 3762 | 3209 | 3102 | 2496 | 101 |
70 | 4685 | 3970 | 3387 | 3274 | 2634 | 107 |
73 | 5064 | 4291 | 3660 | 3538 | 2847 | 117 |
76 | 5454 | 4621 | 3942 | 3811 | 3066 | 126 |
78 | 5720 | 4847 | 4135 | 3997 | 3216 | 133 |
81 | 6130 | 5194 | 4431 | 4283 | 3446 | 144 |
84 | 6550 | 5550 | 4735 | 4577 | 3683 | 155 |
87 | 6981 | 5916 | 5046 | 4878 | 3925 | 166 |
90 | 7422 | 6289 | 5365 | 5187 | 4173 | 177 |
92 | 7722 | 6544 | 5582 | 5396 | 4342 | 185 |
95 | 8180 | 6932 | 5913 | 5716 | 4599 | 198 |
97 | 8490 | 7195 | 6138 | 5933 | 4774 | 206 |
100 | 8964 | 7596 | 6480 | 6264 | 5040 | 219 |
102 | 9285 | 7868 | 6712 | 6488 | 5220 | 228 |
105 | 9773 | 8282 | 7065 | 6829 | 5495 | 241 |
107 | 10103 | 8561 | 7304 | 7060 | 5681 | 251 |
111 | 10775 | 9130 | 7789 | 7529 | 6058 | 270 |
114 | 11287 | 9565 | 8159 | 7887 | 6346 | 285 |
117 | 11807 | 10005 | 8535 | 8251 | 6639 | 300 |
120 | 12334 | 10452 | 8916 | 8619 | 6935 | 315 |
122 | 12690 | 10753 | 9173 | 8868 | 7135 | 326 |
124 | 13048 | 11057 | 9432 | 9118 | 7336 | 337 |
127 | 13591 | 11516 | 9824 | 9497 | 7641 | 353 |
130 | 14139 | 11981 | 10221 | 9880 | 7950 | 370 |
132 | 14508 | 12294 | 10488 | 10138 | 8157 | 382 |
137 | 15441 | 13085 | 11162 | 10790 | 8682 | 411 |
142 | 16388 | 13887 | 11847 | 11454 | 9214 | 442 |
147 | 17347 | 14700 | 12540 | 12122 | 9753 | 473 |
152 | 18317 | 15522 | 13241 | 12800 | 10299 | 506 |
157 | 19297 | 16352 | 13949 | 13484 | 10850 | 540 |
162 | 20284 | 17188 | 14663 | 14174 | 11405 | 575 |
165 | 20879 | 17693 | 15094 | 14590 | 11739 | 596 |
168 | 21477 | 18199 | 15523 | 15008 | 12075 | 618 |
171 | 22076 | 18707 | 15959 | 15427 | 12412 | 640 |
175 | 22877 | 19368 | 16538 | 15986 | 12863 | 671 |
178 | 23479 | 19896 | 16972 | 16407 | 13201 | 694 |
180 | 23880 | 20236 | 17263 | 16688 | 13427 | 710 |
185 | 24884 | 21087 | 17989 | 17389 | 13991 | 750 |
